AR80.35-P-0001TA Remove/Install Keyless GO Control Module

AR80.35-P-0001TA Remove/Install Keyless GO Control Module
- with CODE (889) Keyless Go
- Rear module keyless go control unit






1 Remove left side paneling in trunk

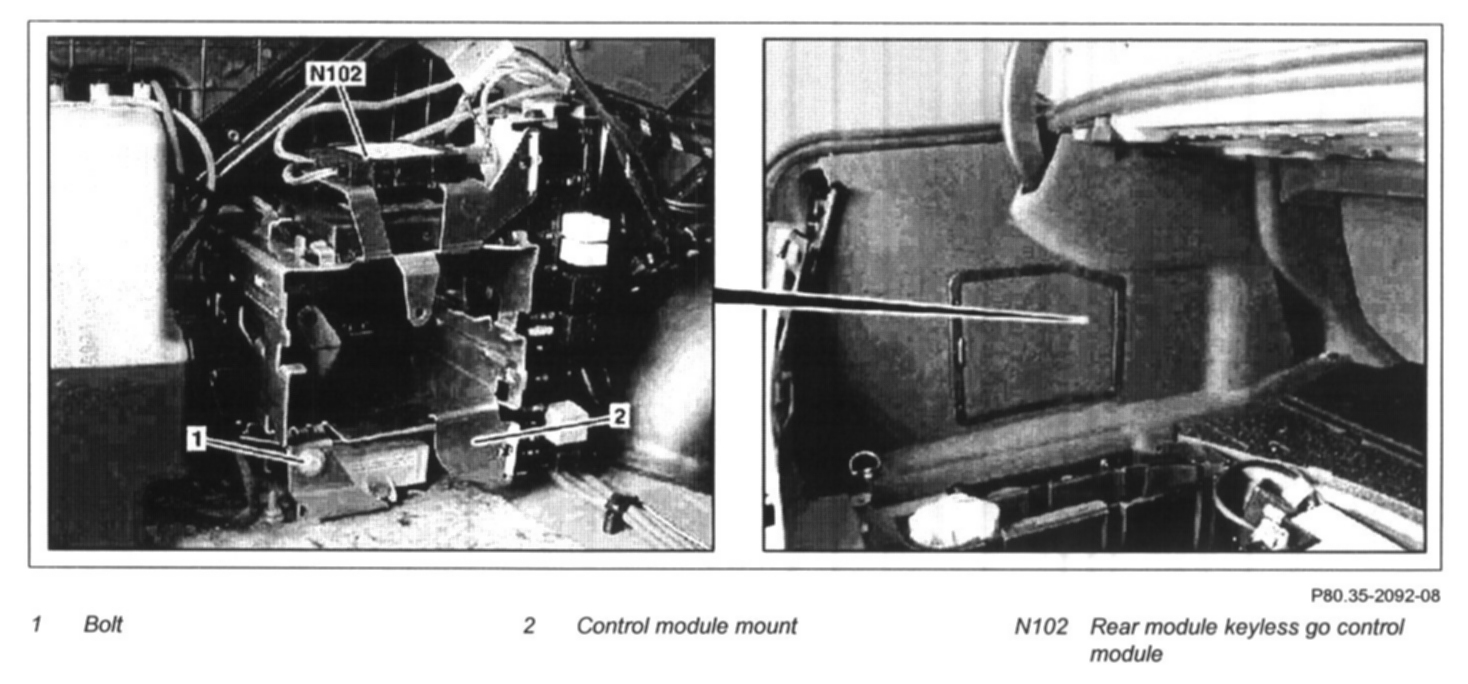

2 Unscrew bolt (1) and unfold control module mount (2) toward front
3 Unclip rear module keyless go control module (N102) from the control module mount (2).
4 Disconnect electrical connectors at rear module keyless go control module (N102) and remove rear module keyless go control module (N102)
5 Install in the reverse order
