Solar Generator Control Module, Design

GF83.10-P-2183-02T Solar Generator Control Module, Design
- with CODE (419) Solar module for panoramic roof







Structure

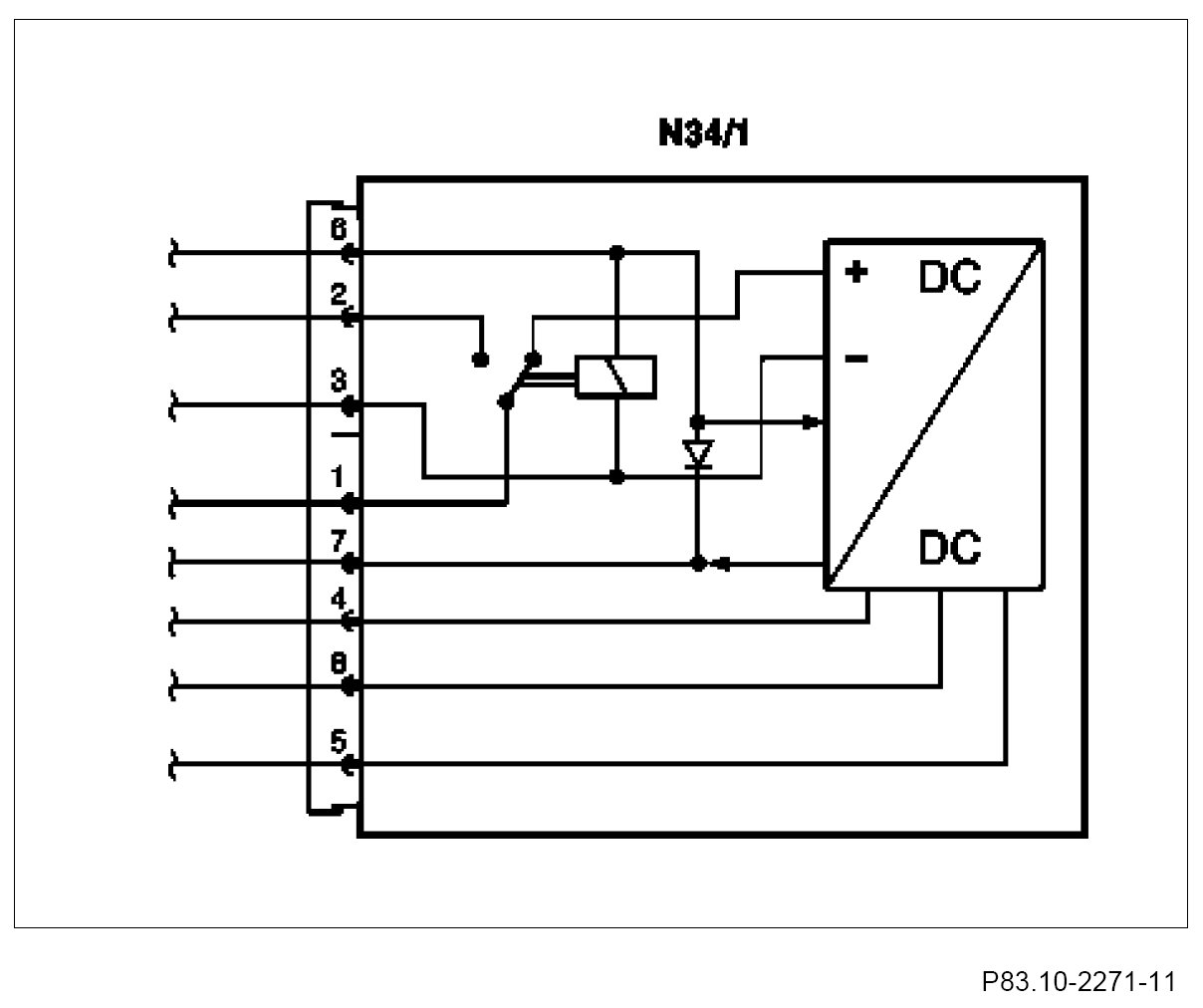

In the solar generator control module (N34/1), the DC/DC-converter and the switchover relay for solar/battery are integrated.

Discrete signal outputs are:
Circuit 30 output (1) and
auxiliary voltage output + 12V (7).

Discrete signal inputs are:
On-board electrical system input, circuit 30 (2),
On-board electrical system input, circuit 31 (ground support point) (3),
Solar module input + (4),
Solar module input - (5),
Control input + 12V (6) and
Solar module input M (center pick-up) (8).
