Power Distribution Module: Service and Repair

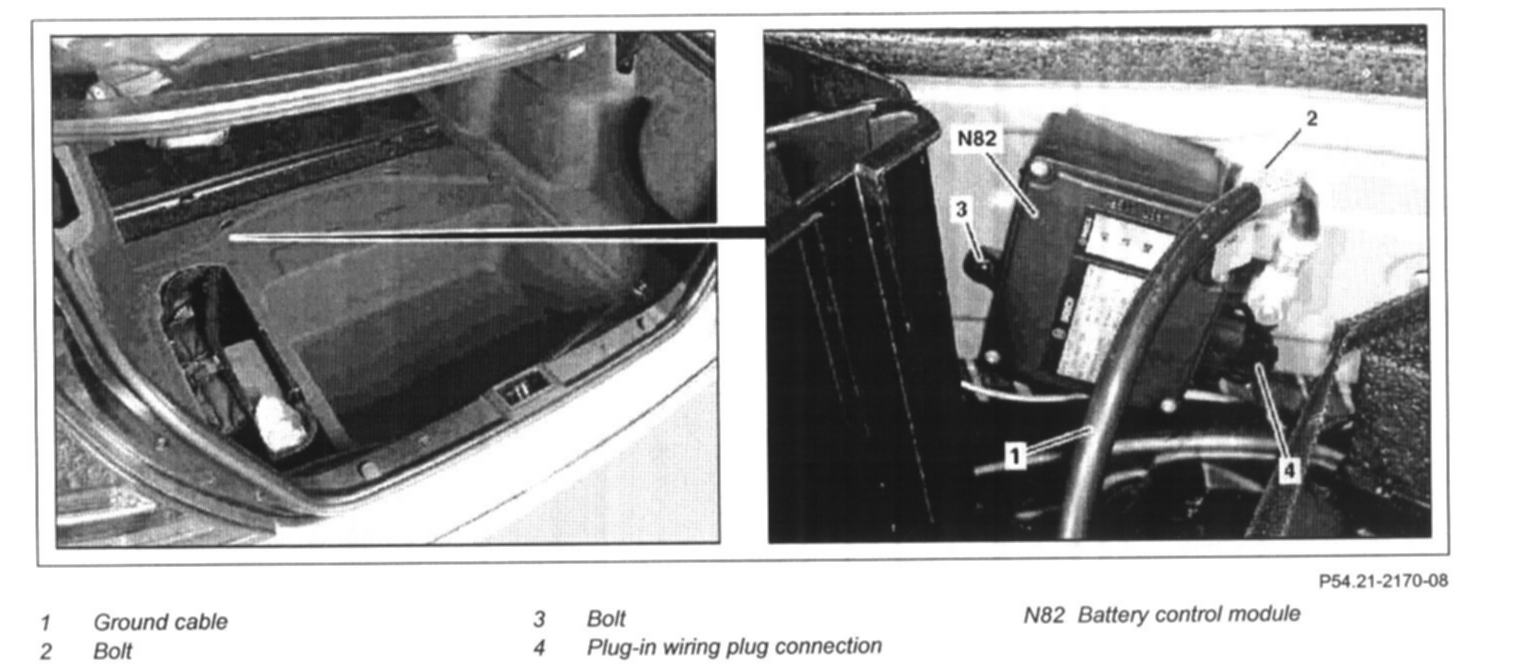

AR54.21-P-0100T Remove/Install Vehicle Power Supply Control Module

1 Disconnect ground cable from auxiliary battery
2 Disconnect ground cable (1) from battery control module (N82)
- Nut ground lead to battery control module: 12 N.m

3 Unscrew screw (2)
- Bolt battery control module to body: 20 N.m

4 Unscrew screw (3)
5 Unplug electrical connector (4) and remove battery control module (N82)
6 Install in the reverse order
