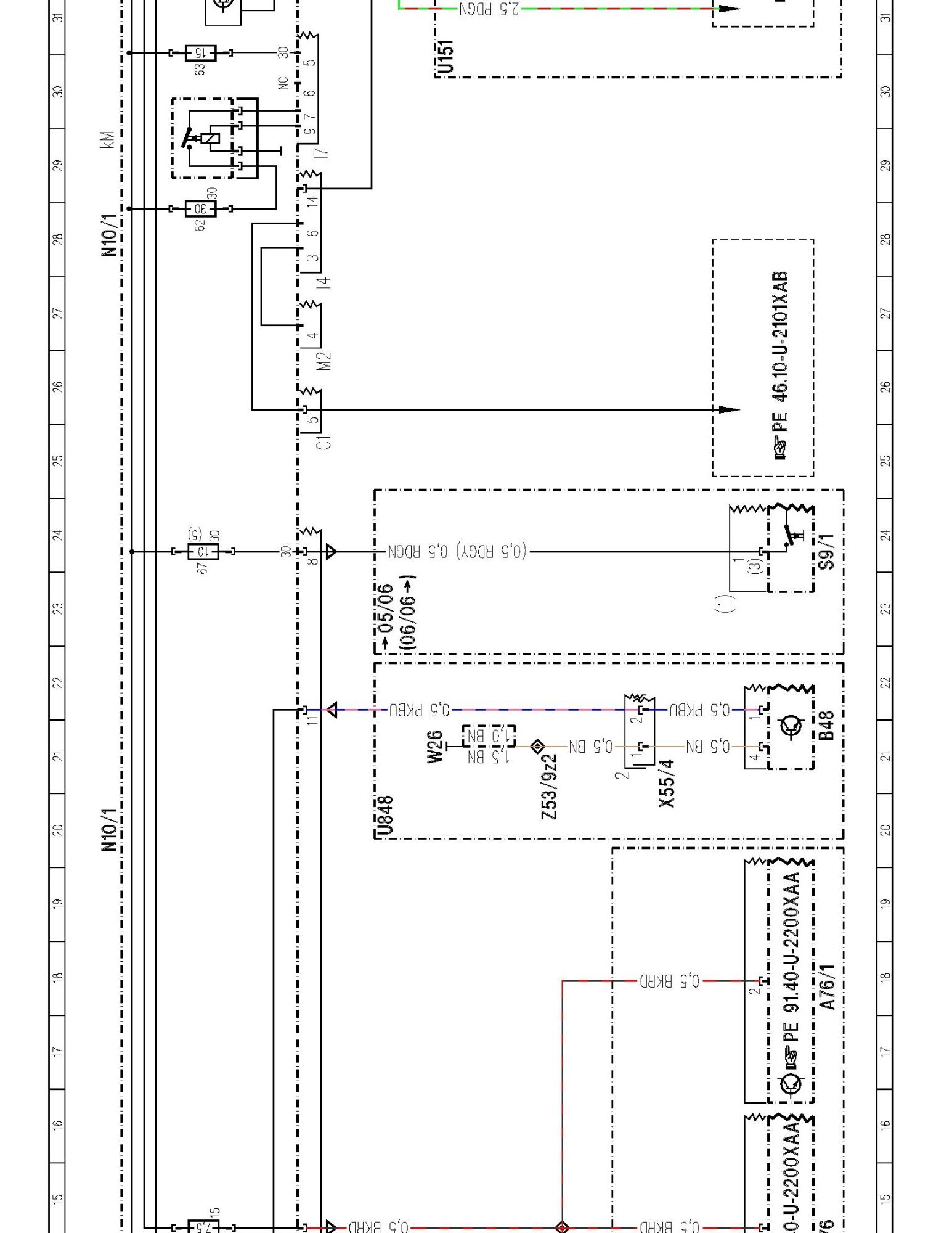

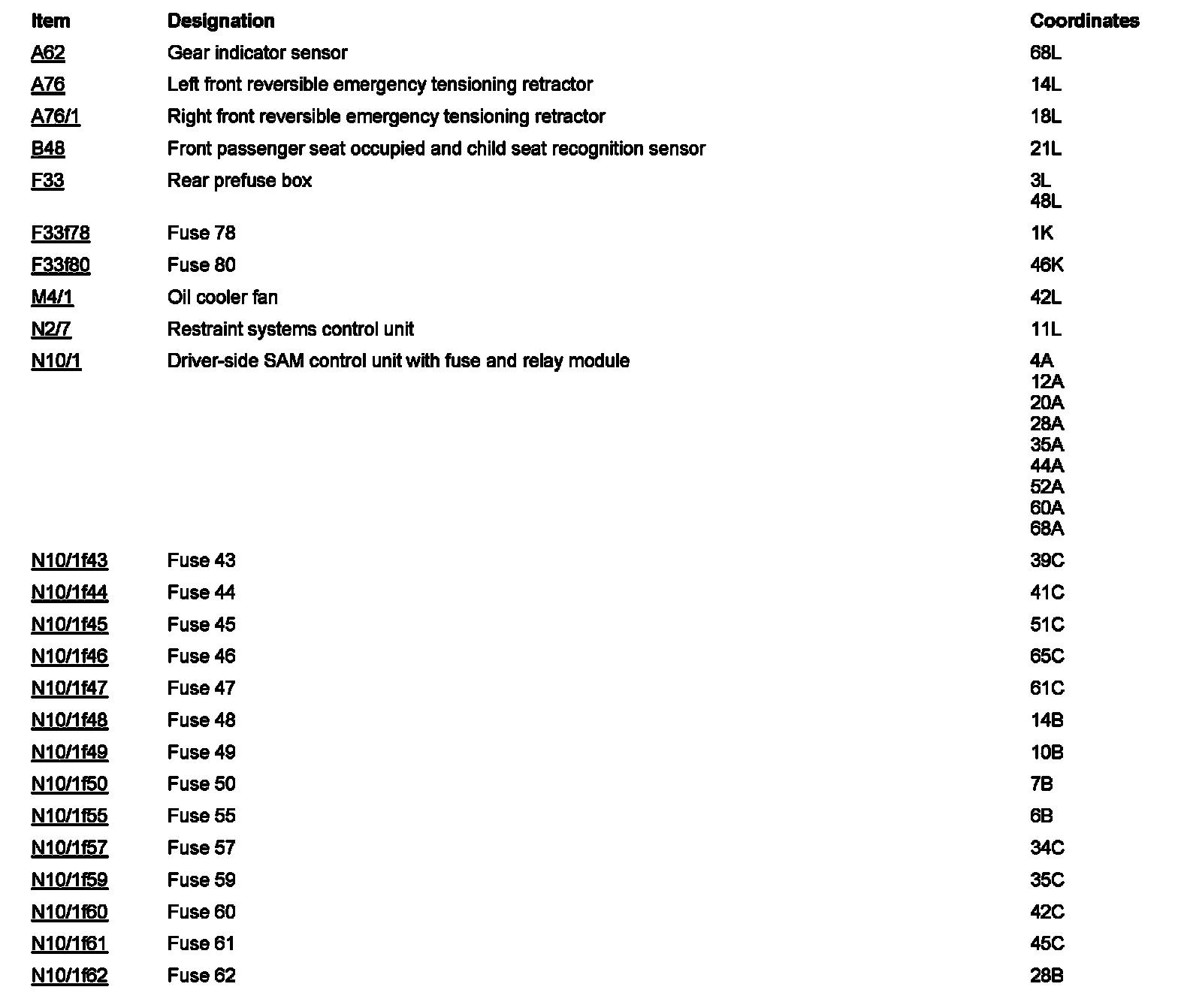

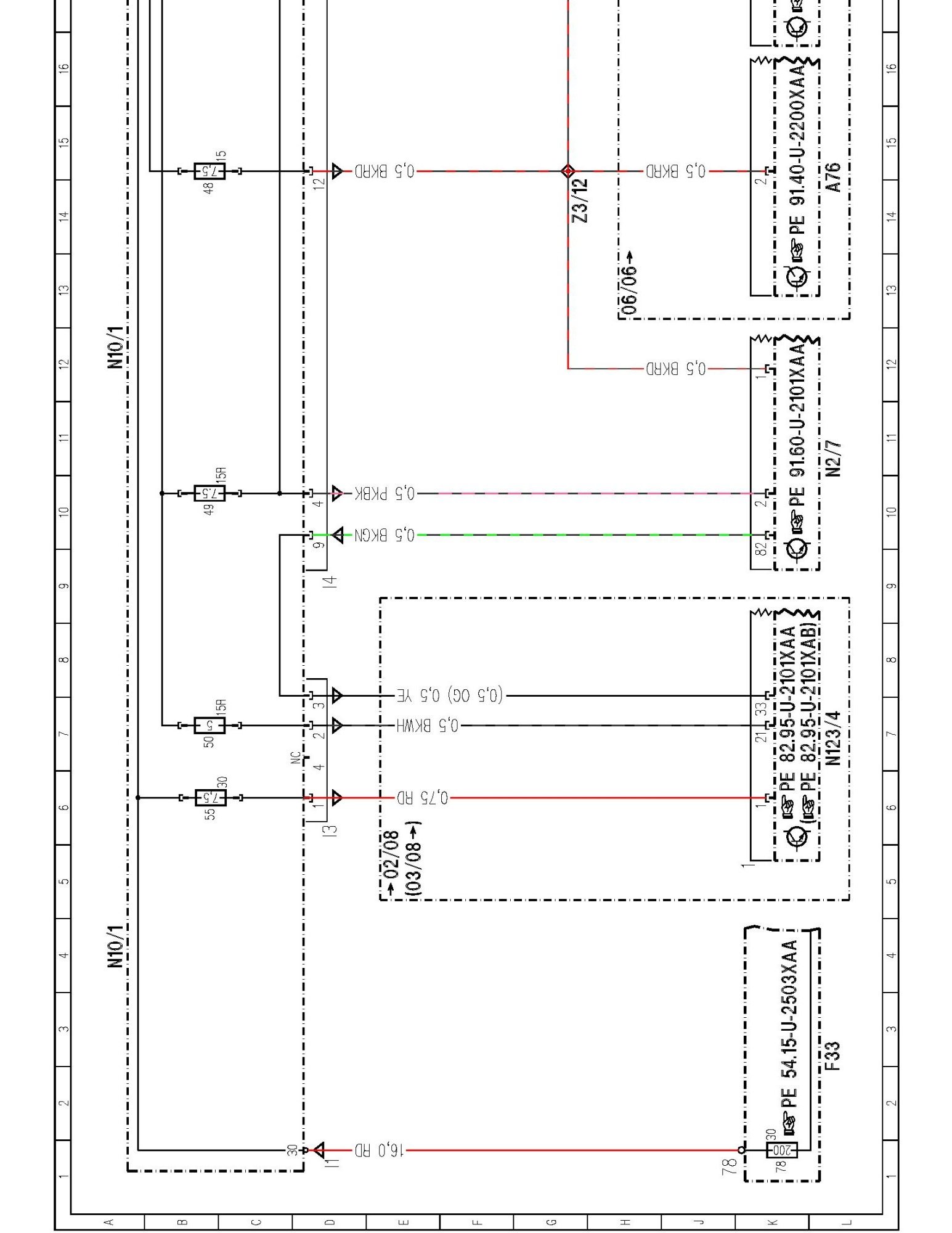

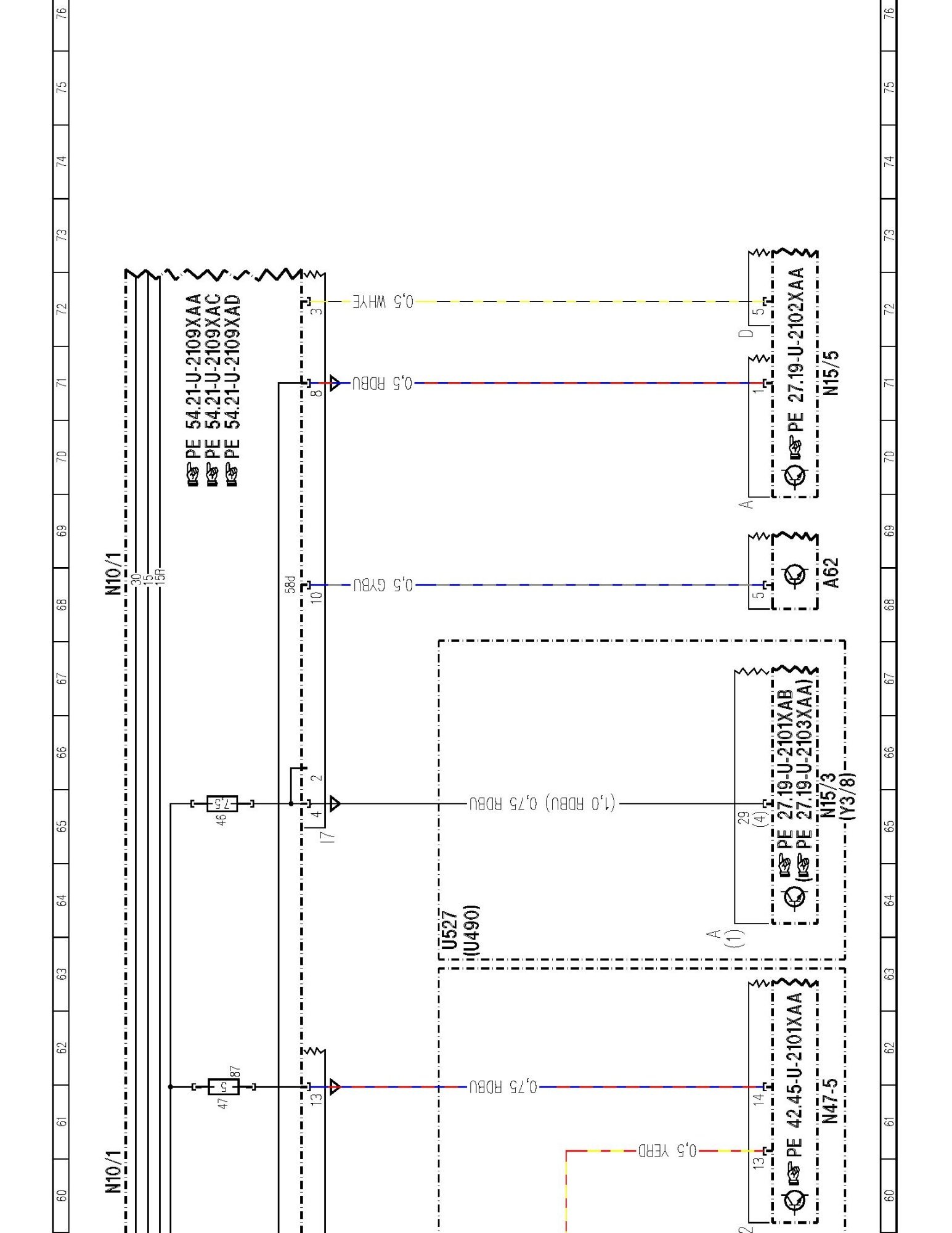

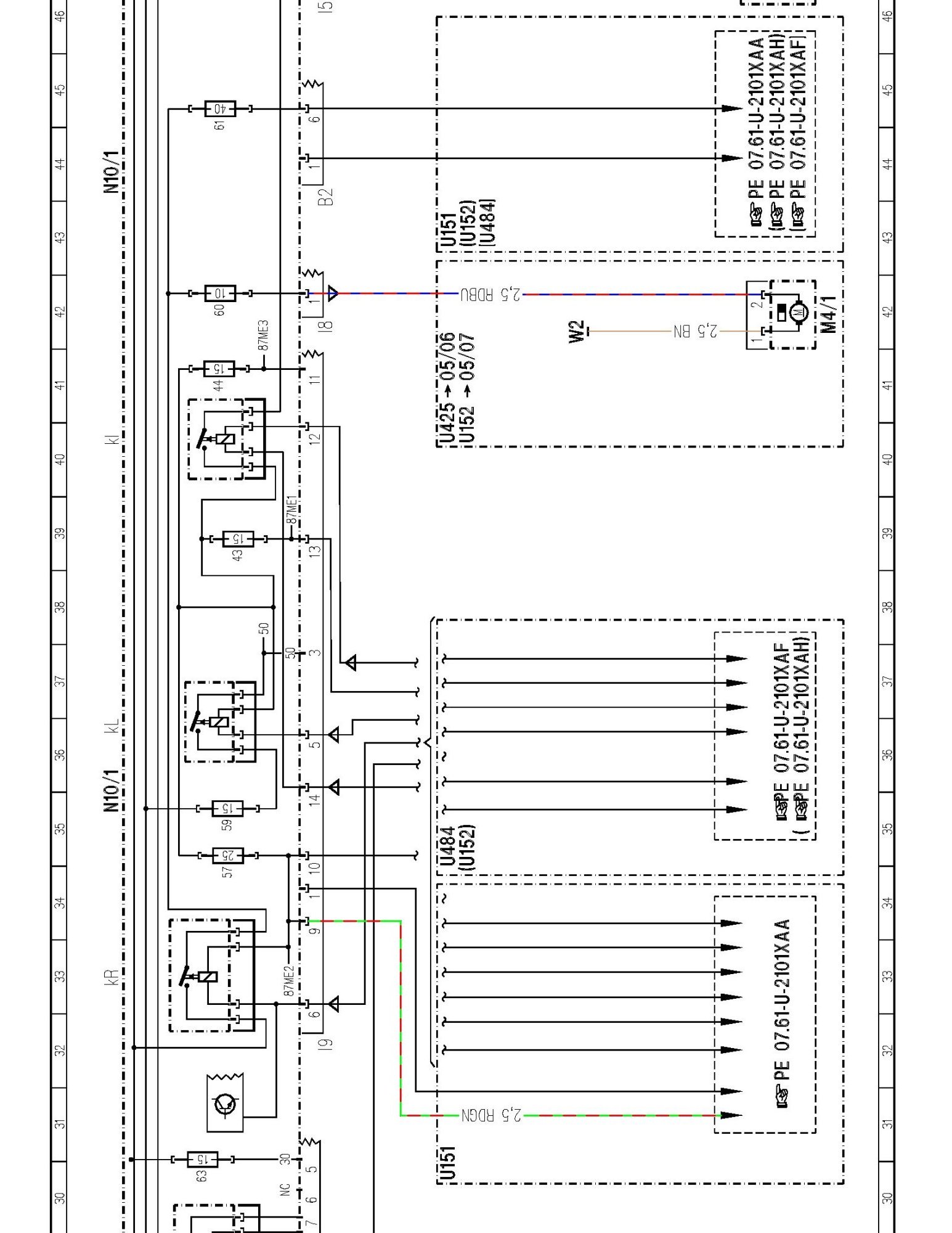

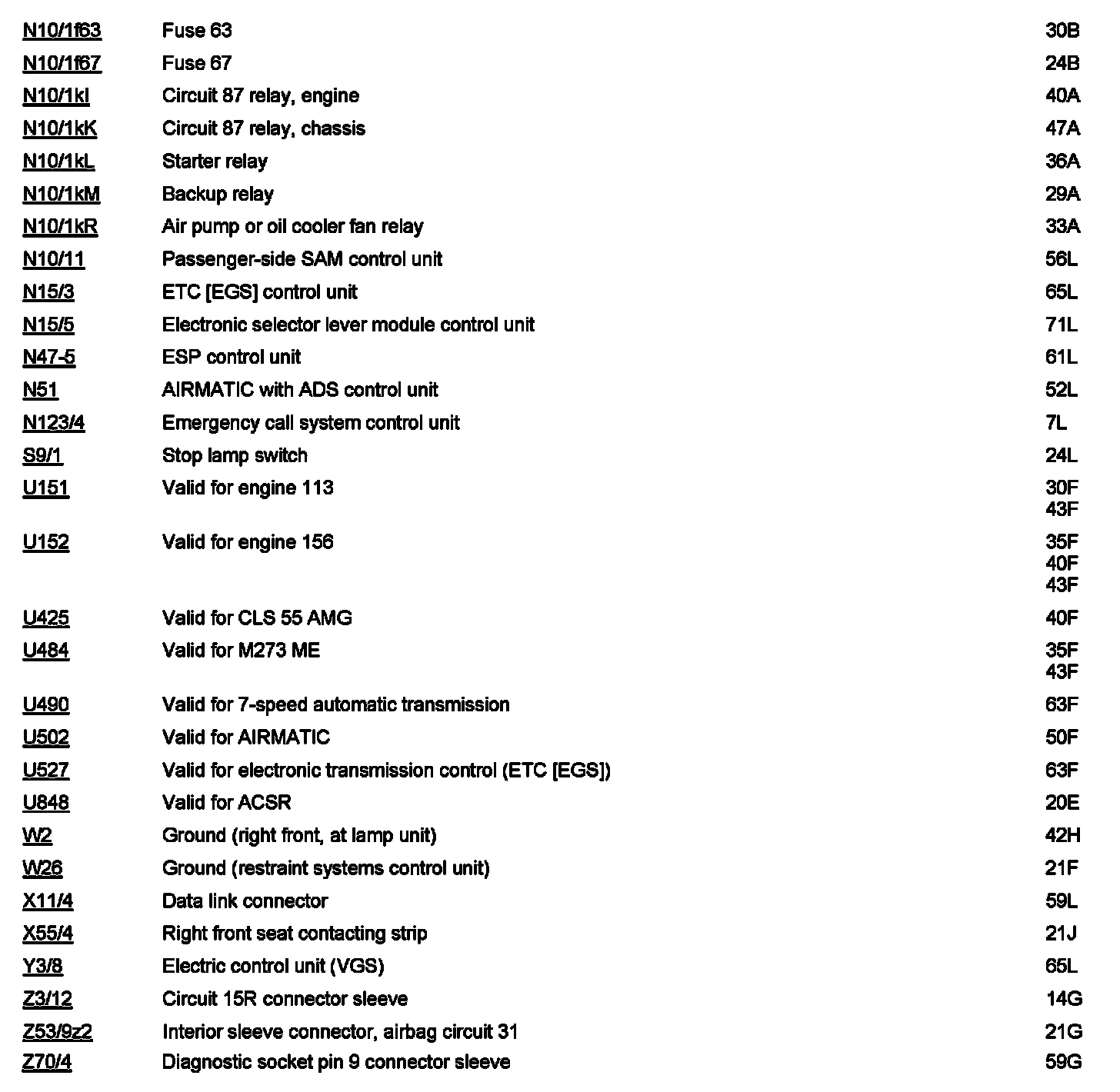

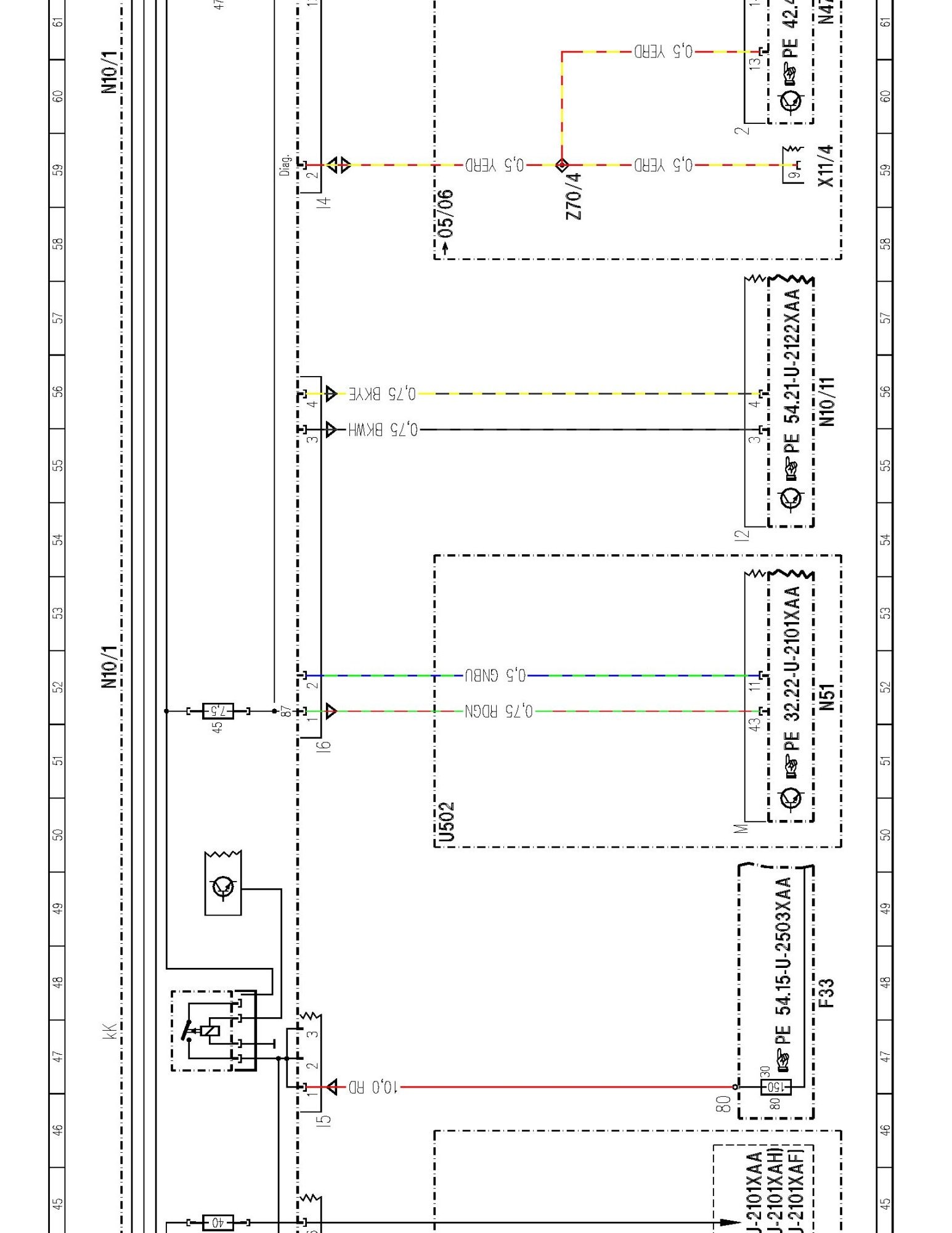

PE54.21-U-2109XAB Driver-Side SAM Control Module With Fuse and Relay Module
PE54.21-U-2109XAB Driver-side SAM control module with fuse and relay module - Control module N10/1
- sheet 2
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
