Procedures

AR33.10-P-0100-03T Prop front axle carrier with inspection pit lift or assembly lift

Component Identification:

For passenger car transmission platform (070) and telescoping transmission jack see: http://gotis.aftersales.mercedes-benz.com

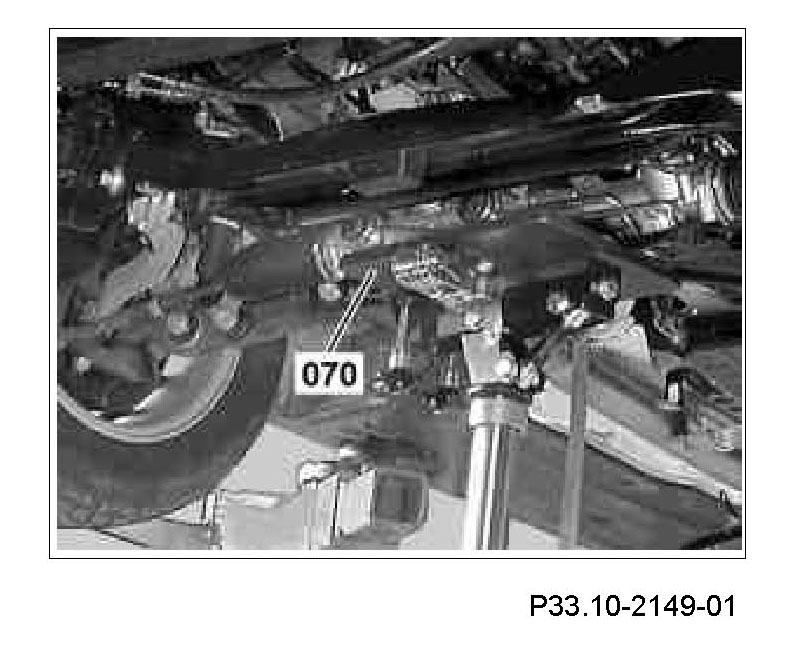

1 Mount passenger car transmission platform (070) on telescopic/transmission jack
2 Position telescopic/transmission jack under front axle carrier.
3 Secure front axle with a lashing strap to prevent it from falling.
