AR42.45-P-0820TA Remove/Install Electronic Stability program (ESP) Control Unit
AR42.45-P-0820TA Remove/install electronic stability program (ESP) control unit - with Adaptive Brake (ABR)

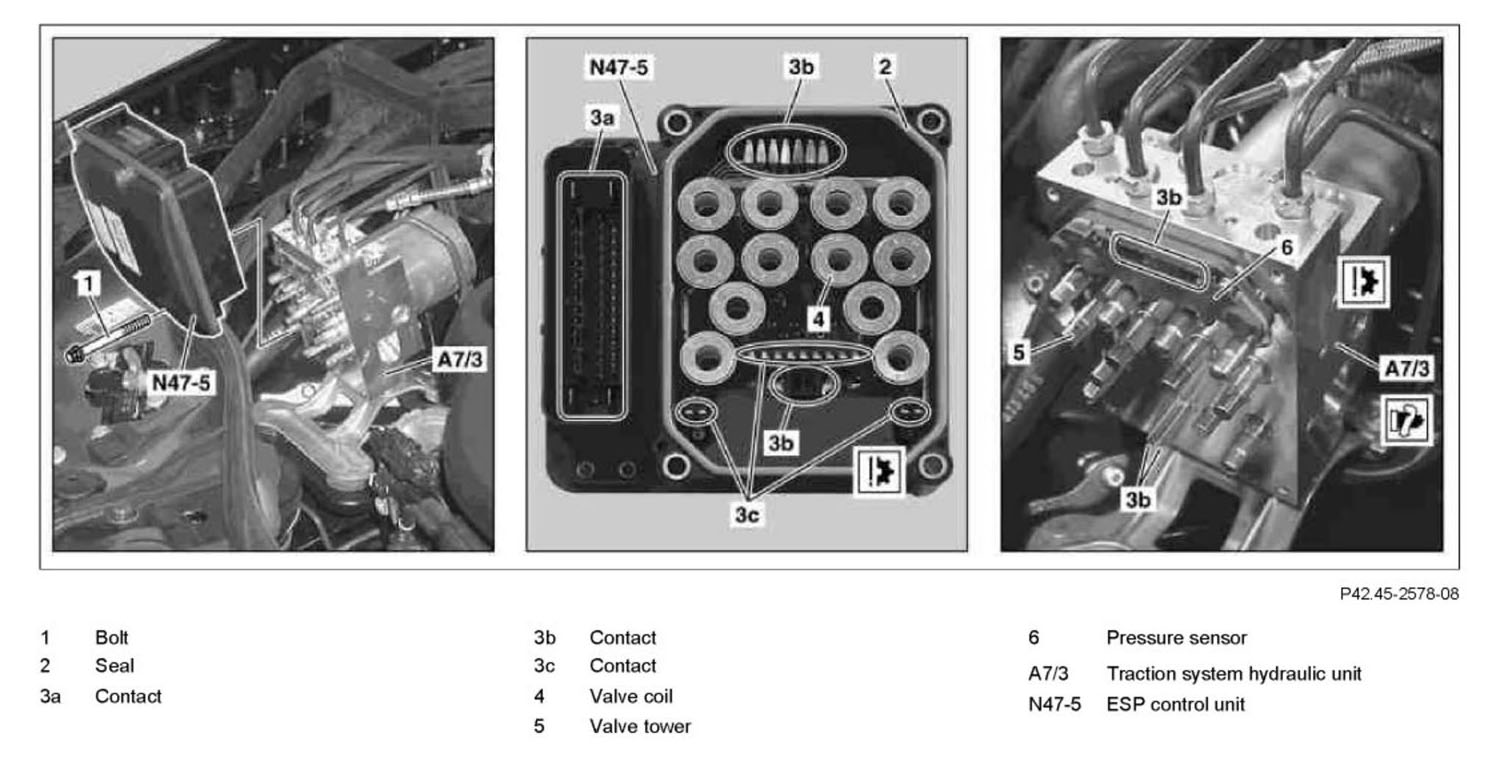

Component Identification:

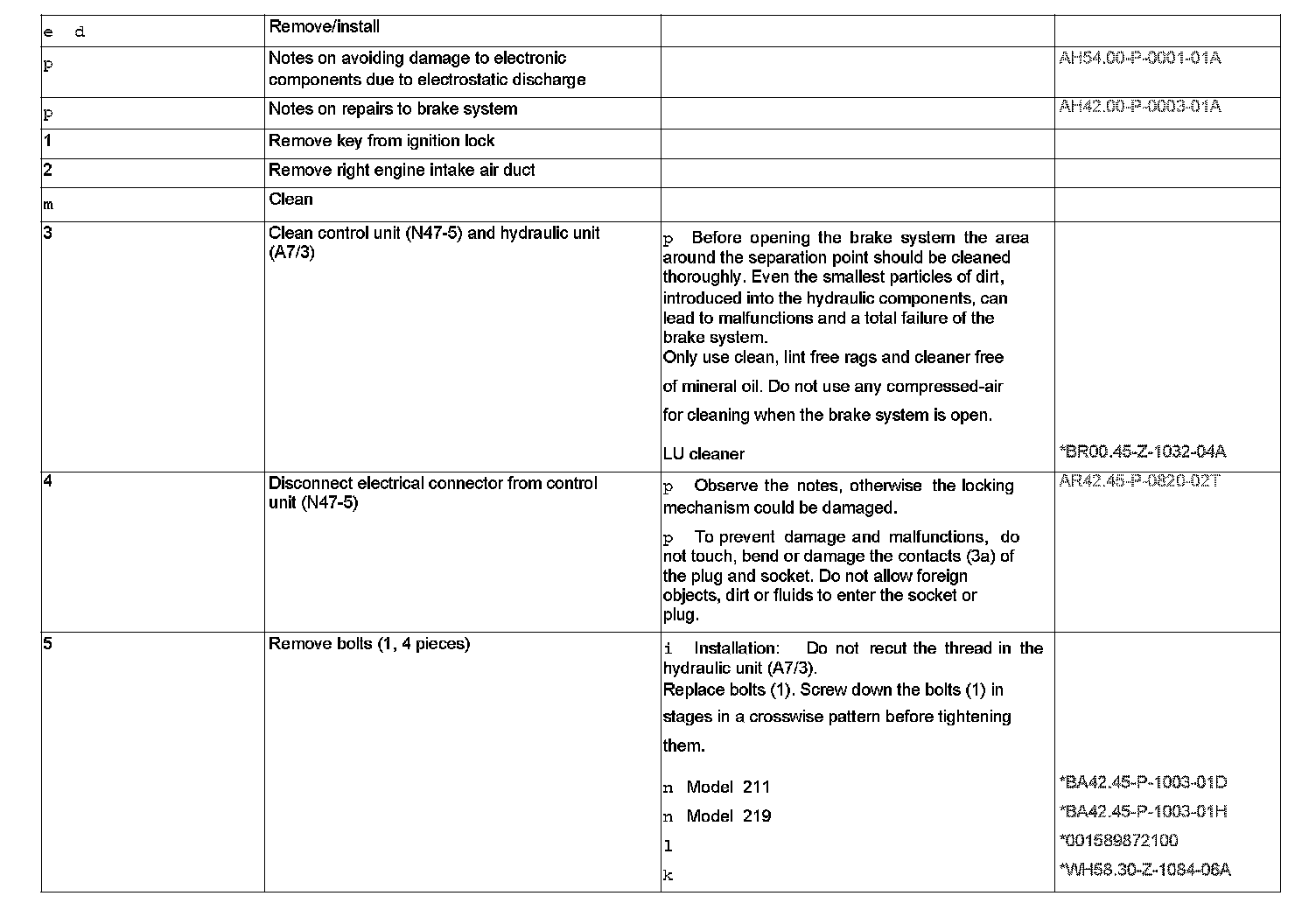

Steps 1 - 5:

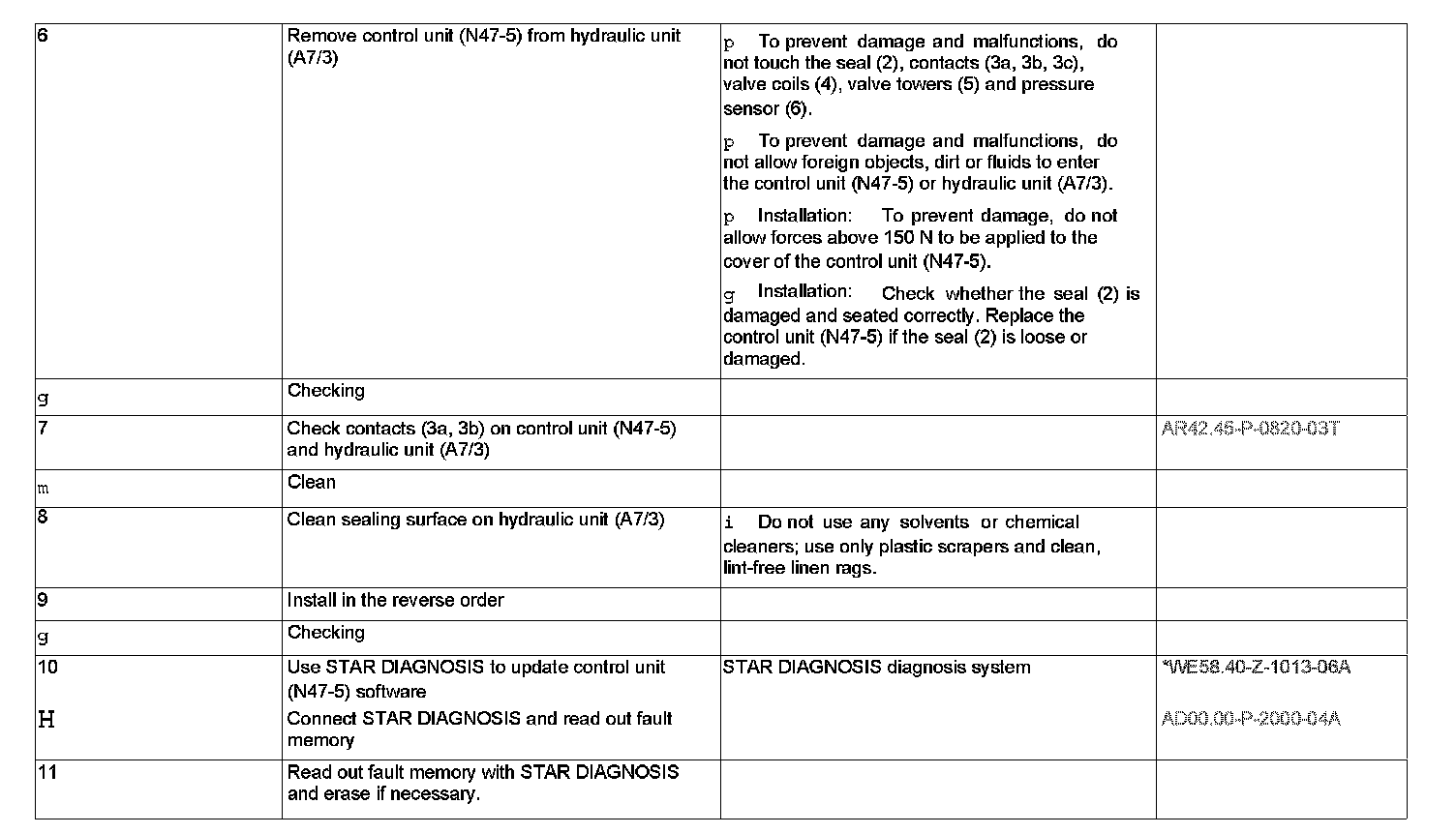

Steps 6 - 11:
Electronic Stability Program (ESP):
Electronic Stability Program (ESP):
Special Tools:
Commercially available tools:
Workshop equipment/MB testers:
Repair Materials:
