Determining Caster Value
AR40.20-P-0322-03T Check caster and assign to tabular valueCheck And Adjustment Values For Caster:
Model 211 without 4MATICModel 219Model 211 with 4MATIC Caster tolerance: ±30'
The level values are displayed by the electronic level measuring device in decimal degrees [°].
1

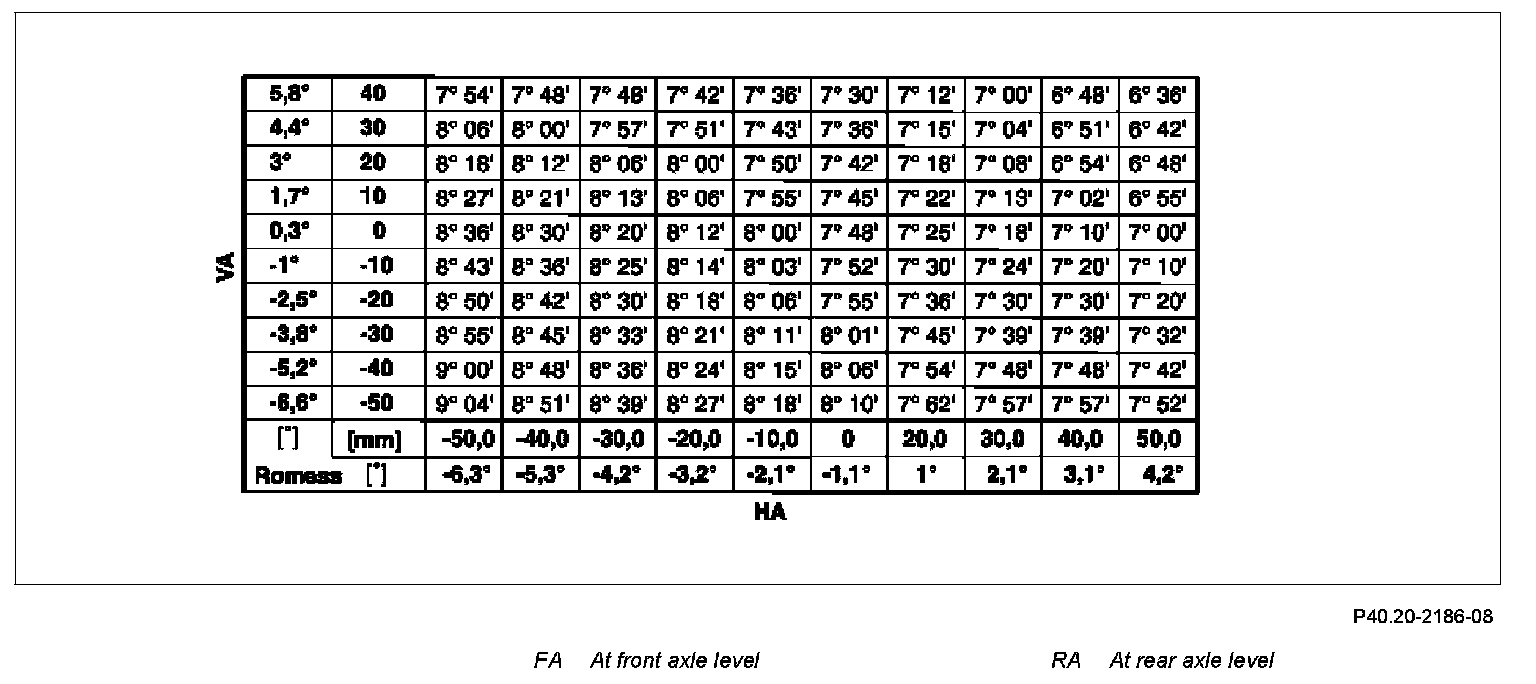

Obtain the caster value from the table taking into account the front axle and rear axle level value measured previously.
