Power Distribution Module: Diagrams
Wiring Diagram Of Control Module Battery PE54.10-U-2102DA - control module N82 (up to 31.5.06)
- battery sensor B95 (as of 1.6.06)

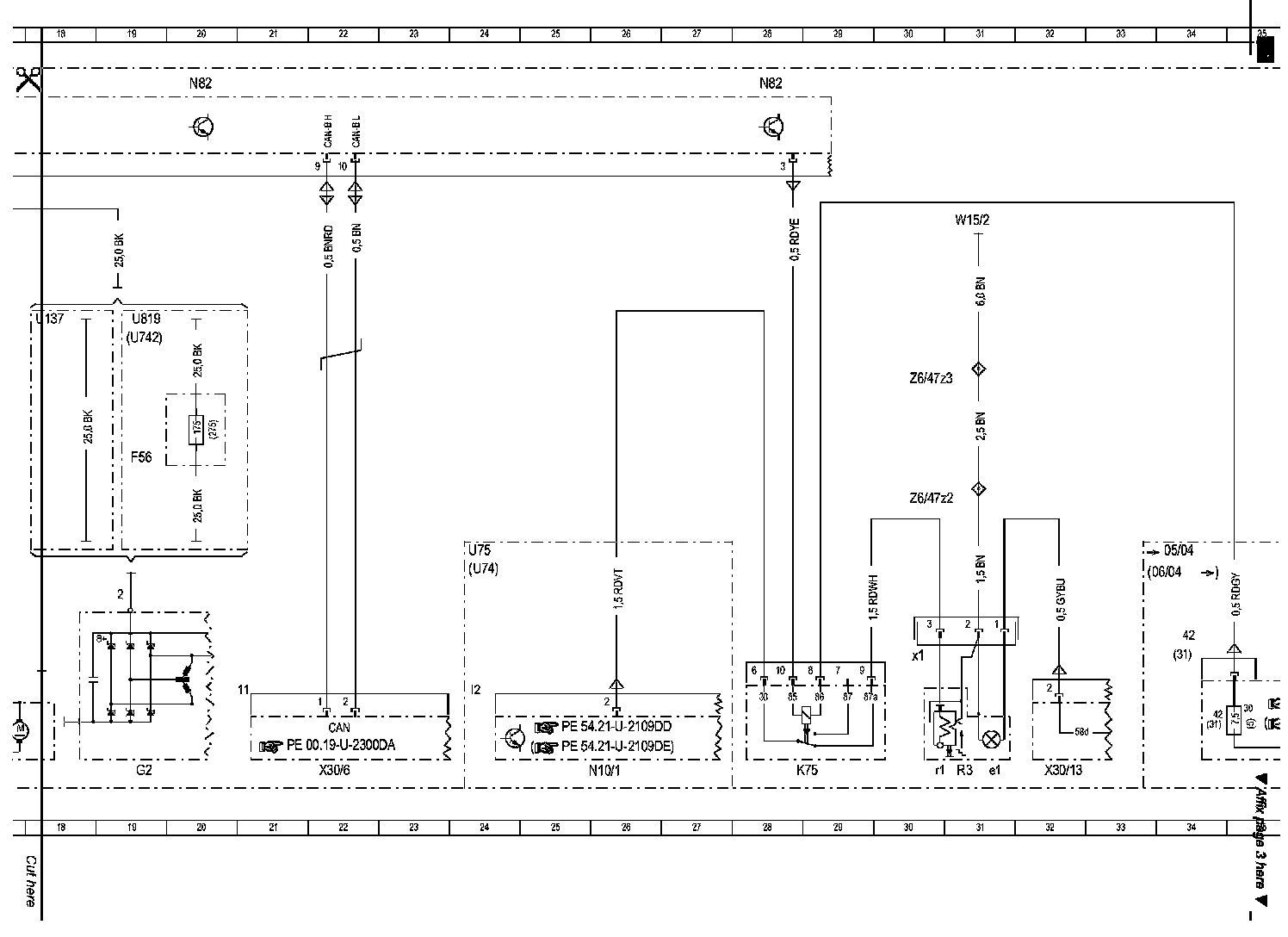

Wiring Diagram (Part 1):
Wiring Diagram (Part 2):
Wiring Diagram (Part 3):

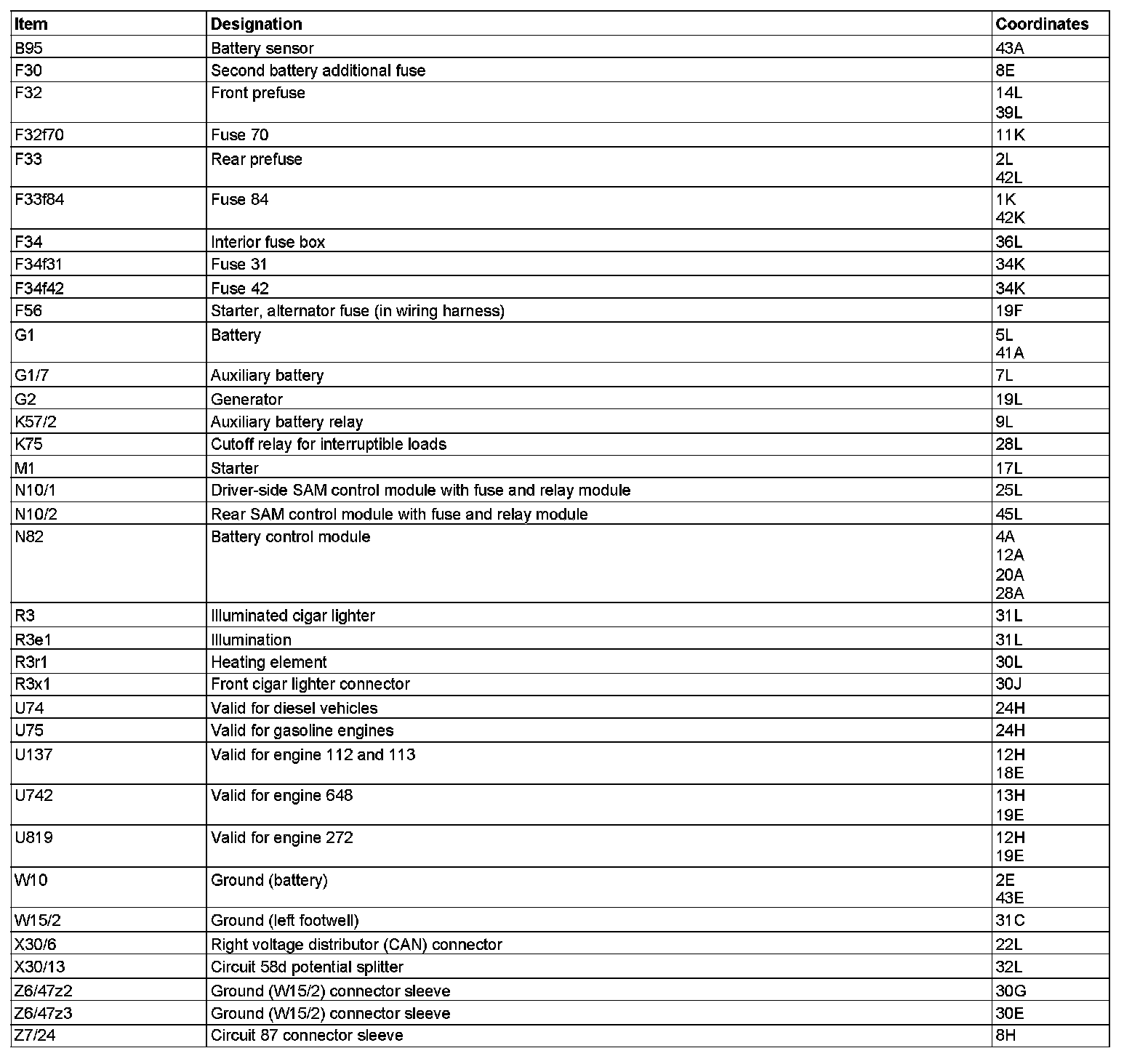

Component Description/Coordinates, B95 To Z724:
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
