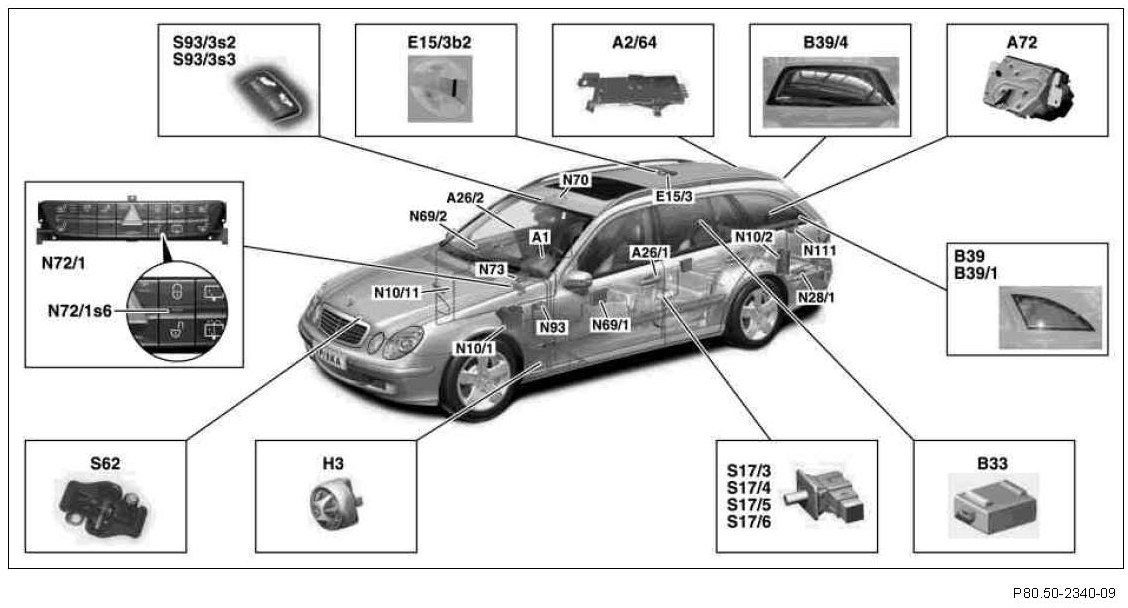

GF80.50-P-0001-02TA Anti-Theft Alarm (ATA), Location of Components

GF80.50-P-0001-02TA Anti-Theft Alarm (ATA), Location Of Components
MODEL 211.2
- with CODE (551a) Anti-theft alarm system (ATA)






A1 Instrument cluster
A2/64 Left antenna amplifier module
A26/1 Left front IR receiver
A26/2 Front right IR receiver (only United States of America and)
A72 Rear door locking unit
B33 ATA [EDW] tilt sensor
B39 Left rear glass breakage sensor (with code (882b) Infrared interior monitoring (only with ATA))
B39/1 Right rear glass breakage sensor (with code (882b) Infrared interior monitoring (only with ATA))
B39/4 Rear window glass breakage sensor (with code (882b) Infrared interior monitoring (only with ATA)
E15/3 Rear interior lamp
E15/3b2 Infrared interior monitoring sensor (with code (882b) Infrared interior monitoring (only with ATA))
H3 Alarm signal horn
N10/1 Driver-side SAM control module with fuse and relay module
N10/2 Rear SAM control module with fuse and relay module
N10/11 Passenger-side SAM control module
N28/1 AAG control module (with code (550) Trailer hitch)
N69/1 Left front door control module
N69/2 Right front door control module
N70 Overhead control panel control module
N72/1 Upper control panel control module
N72/1s6 Interior central locking and ATA function display switch
N73 EIS control module
N93 Central gateway control module
N111 Rear door control module
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S17/5 Left rear door contact switch
S17/6 Right rear door contact switch
S62 ATA [EDW] engine hood switch
S93/3s2 Towing sensor switch
S93/3s3 IRS switch (with code (882b) Infrared interior monitoring (only with ATA))
