PE54.21-U-2106GB SAM Control Module With Front Fuse And Relay Module (N10/1)

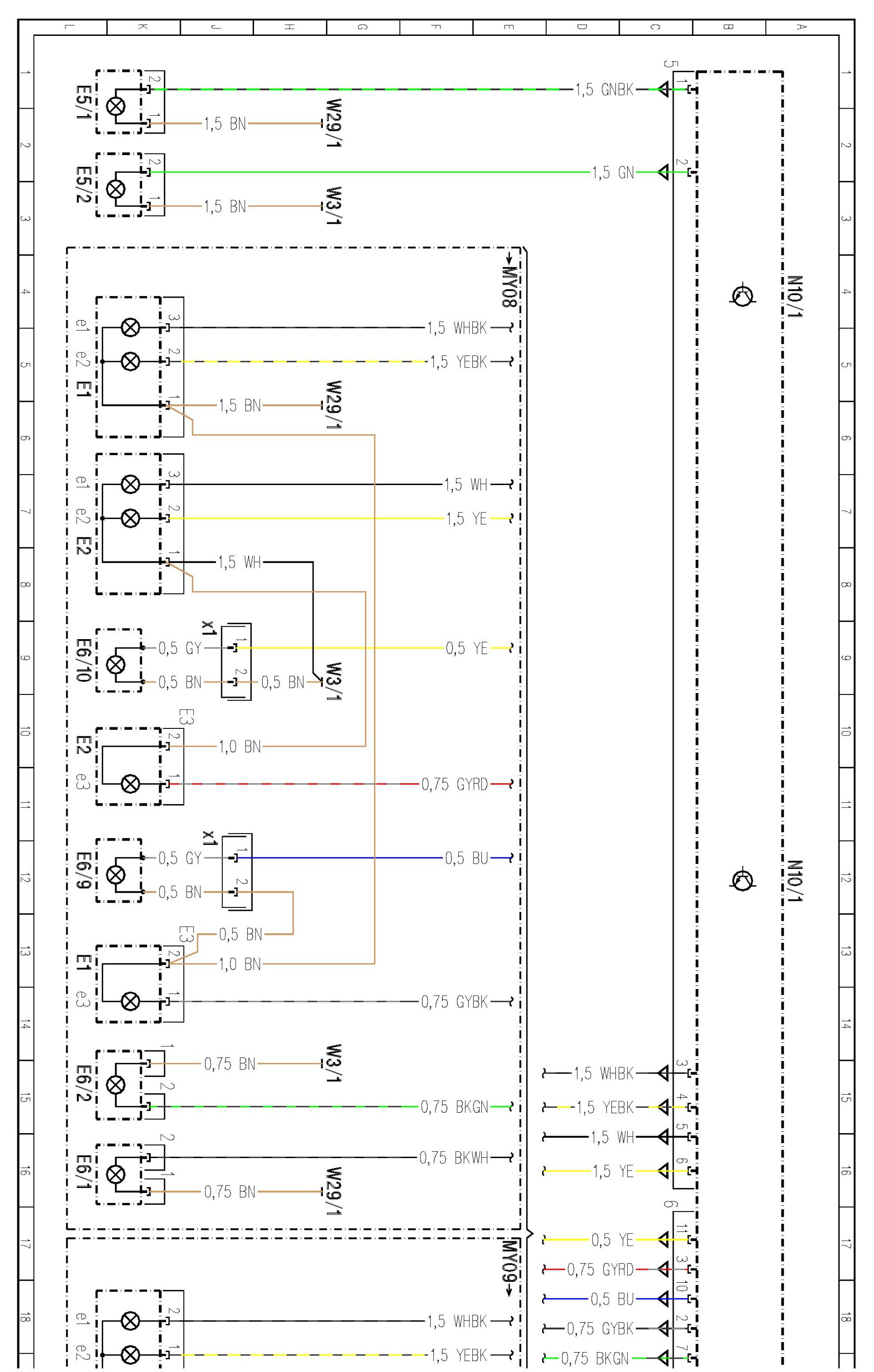

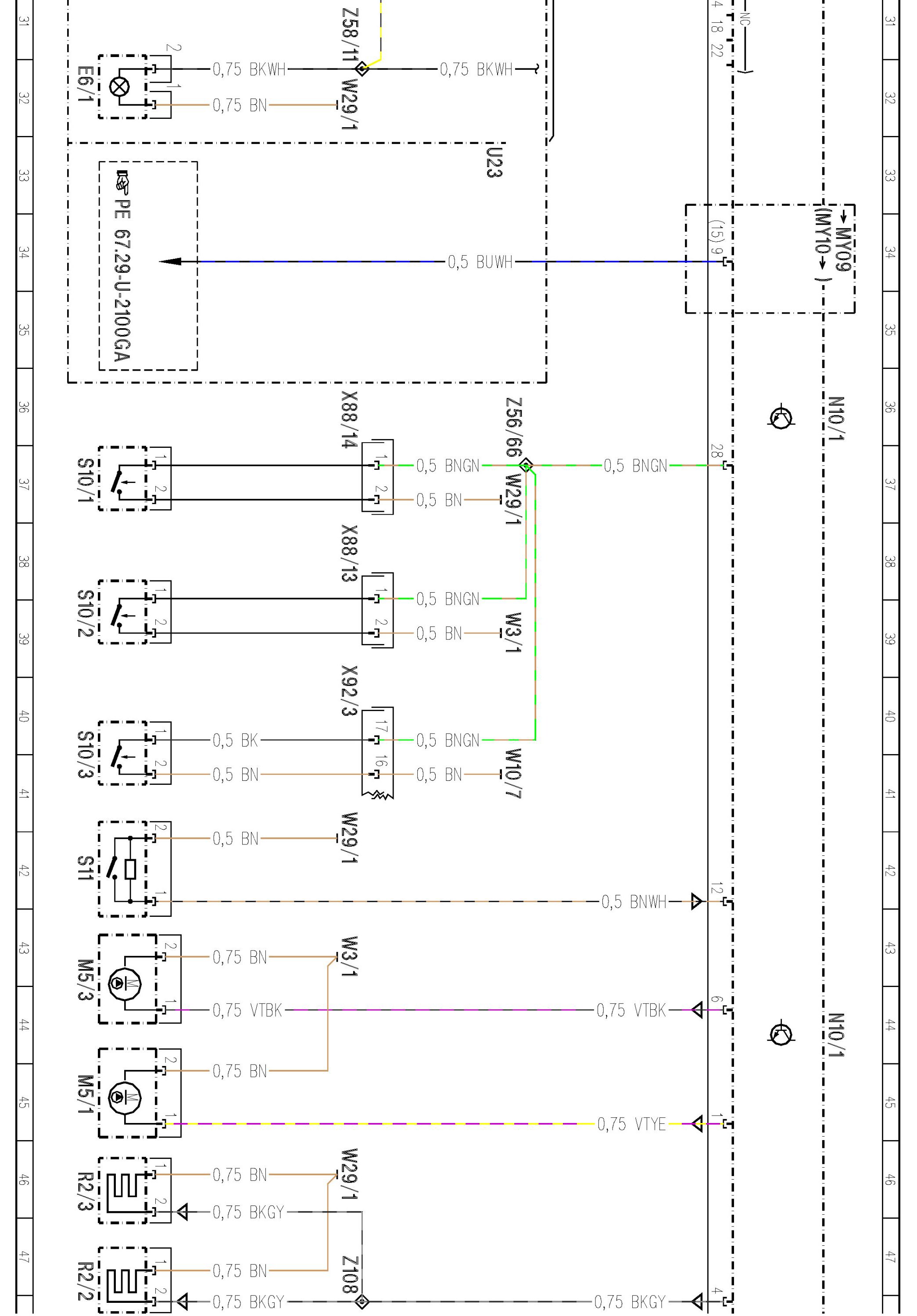

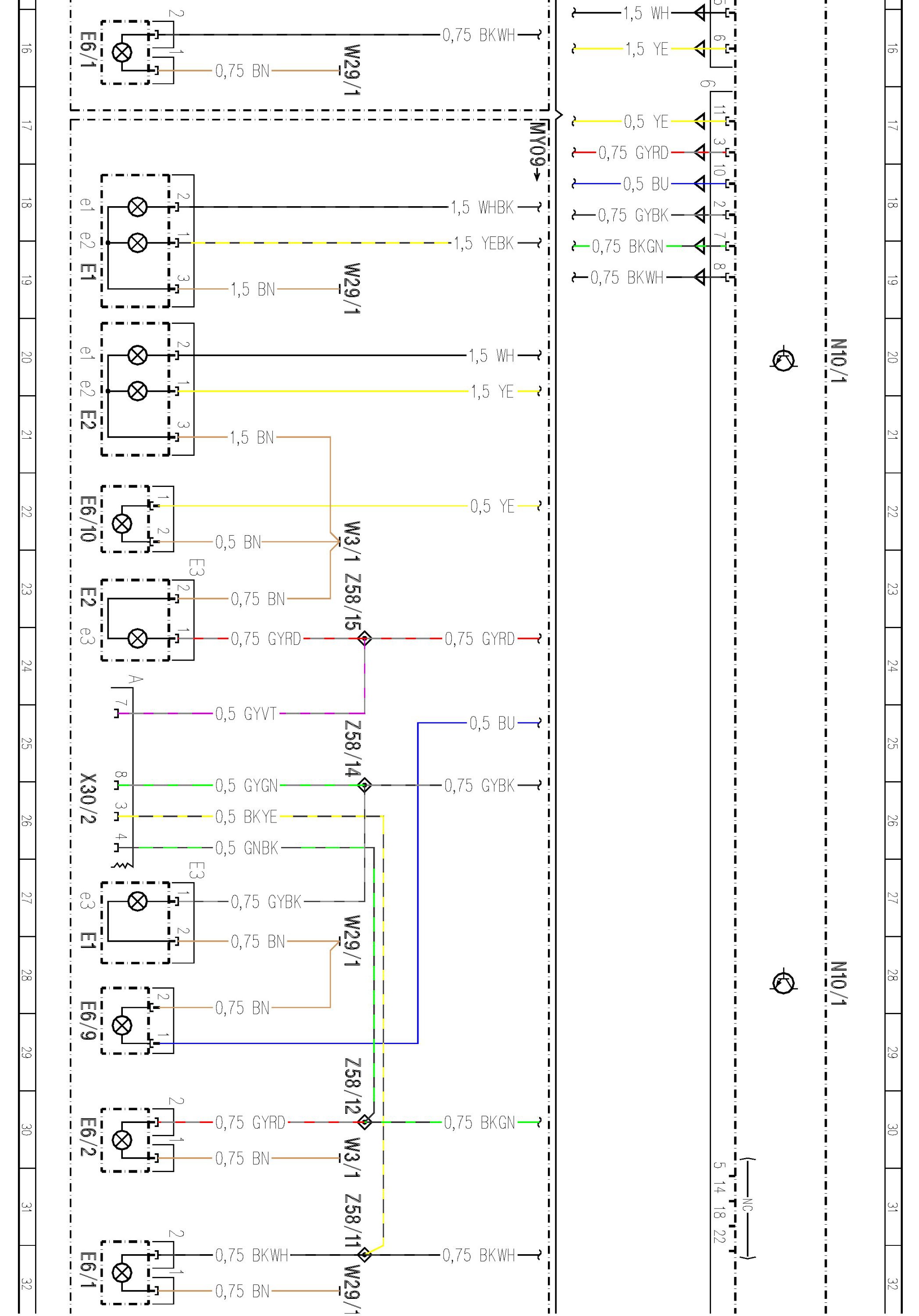

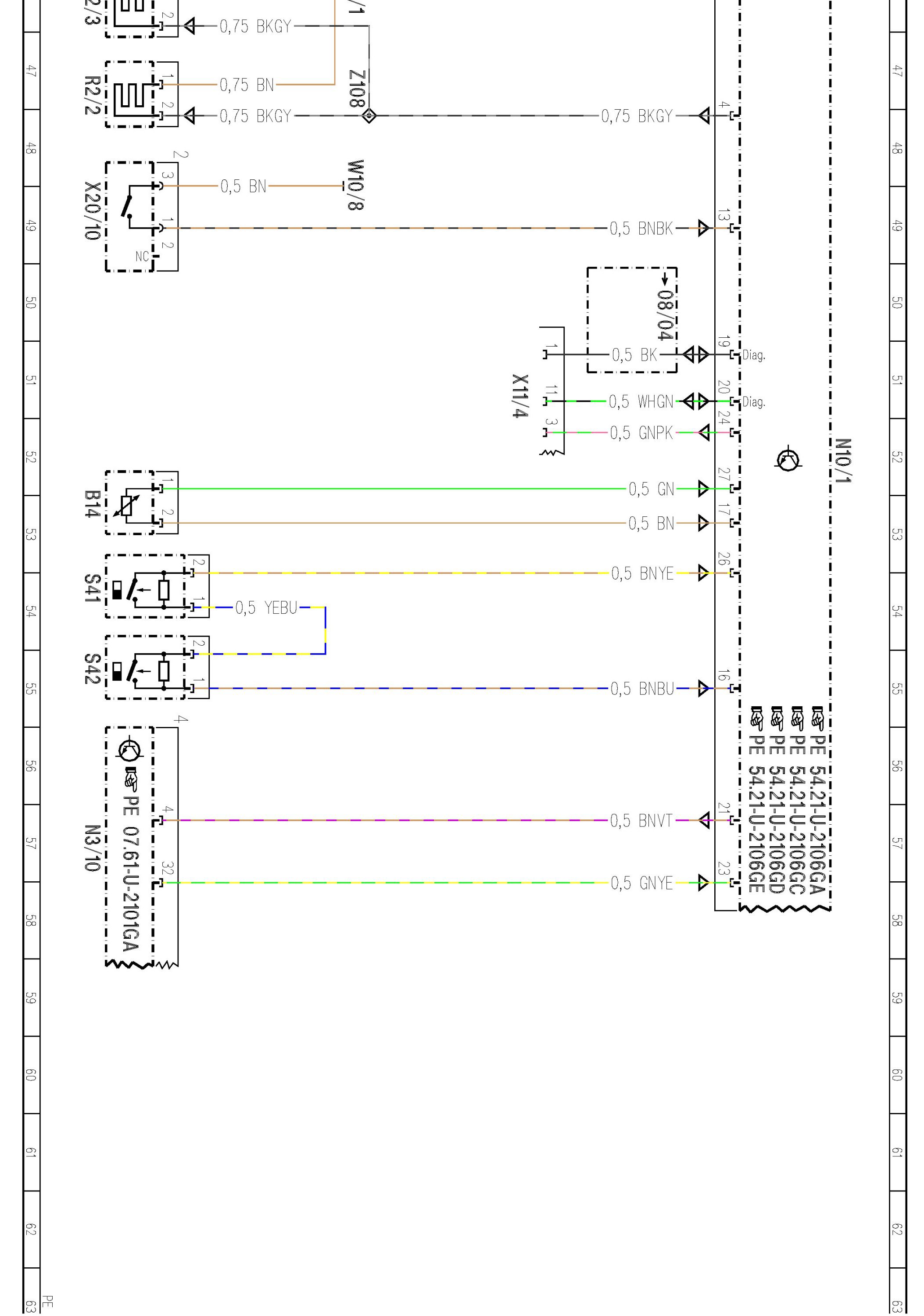

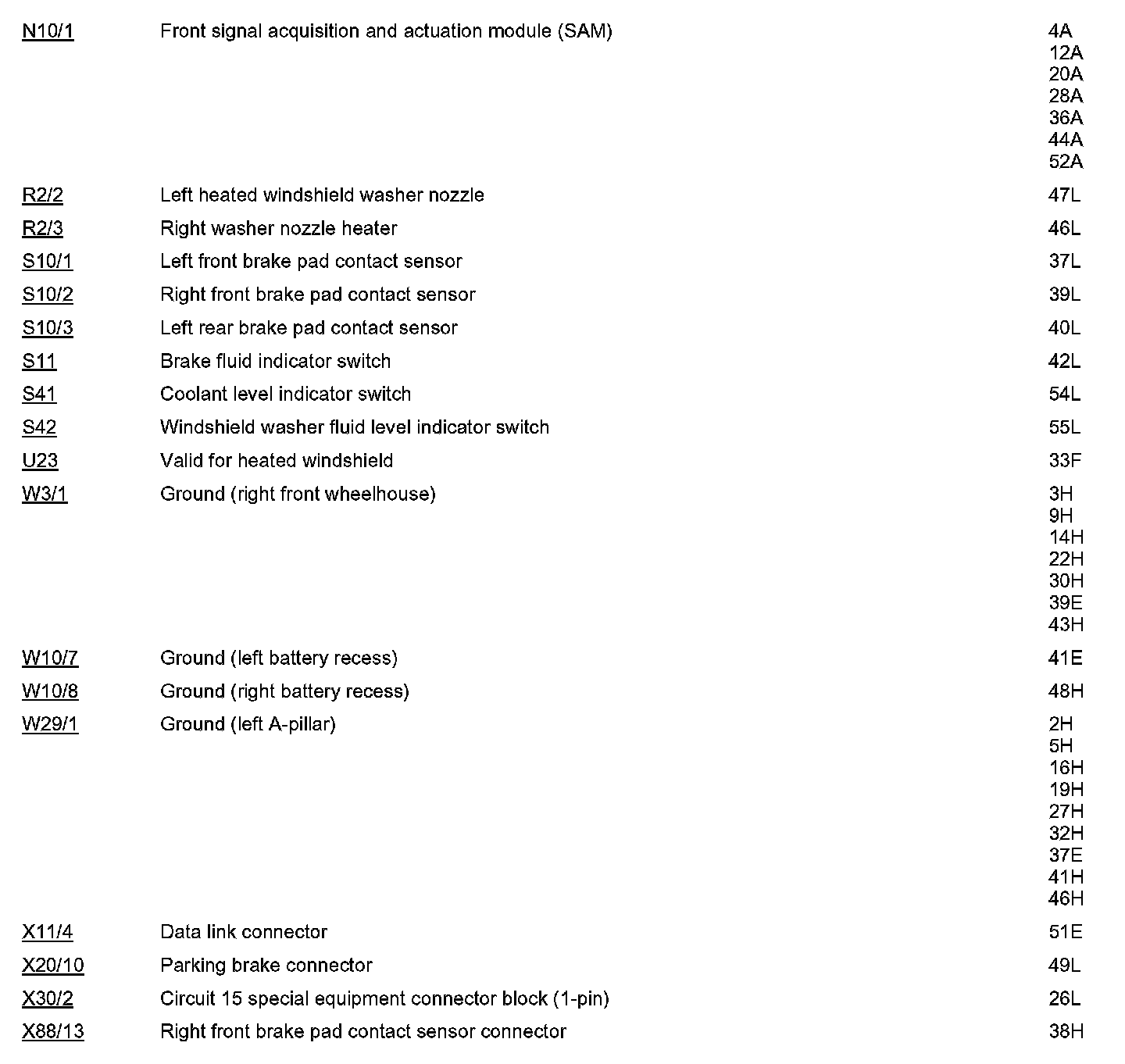

PE54.21-U-2106GB SAM Control Module With Front Fuse And Relay Module (N10/1) MODEL 463 connectors 5 and 6, sheet 2

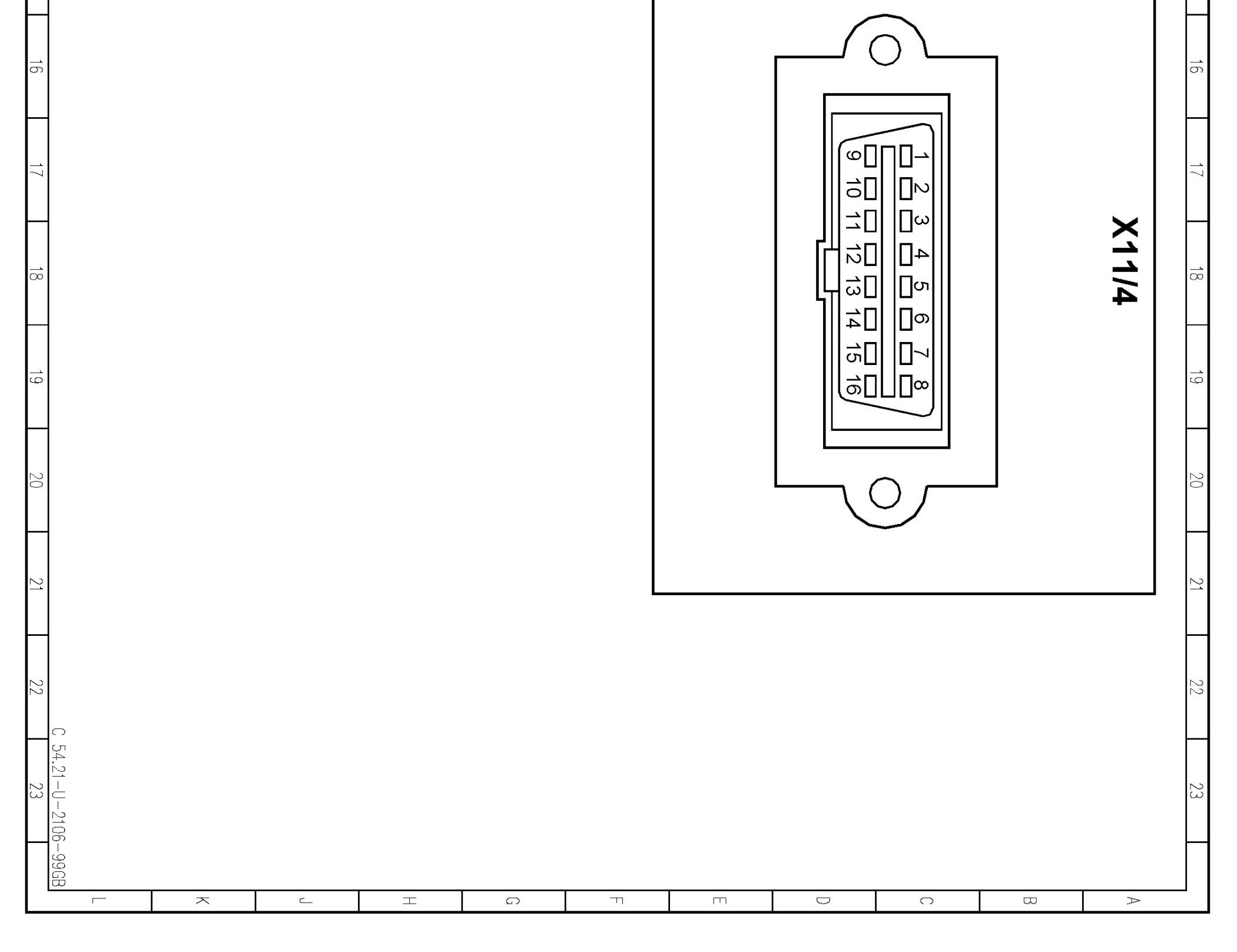

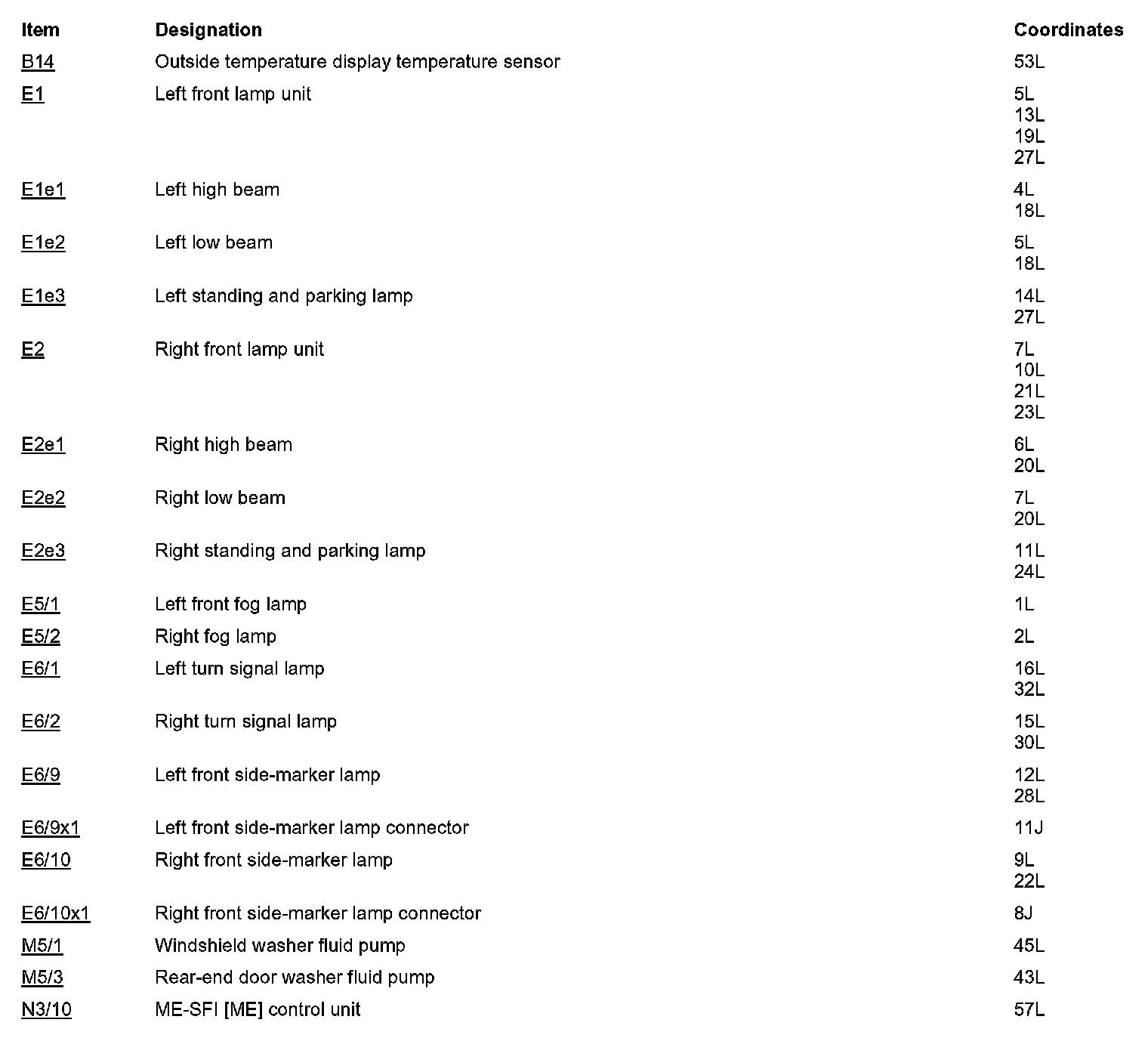

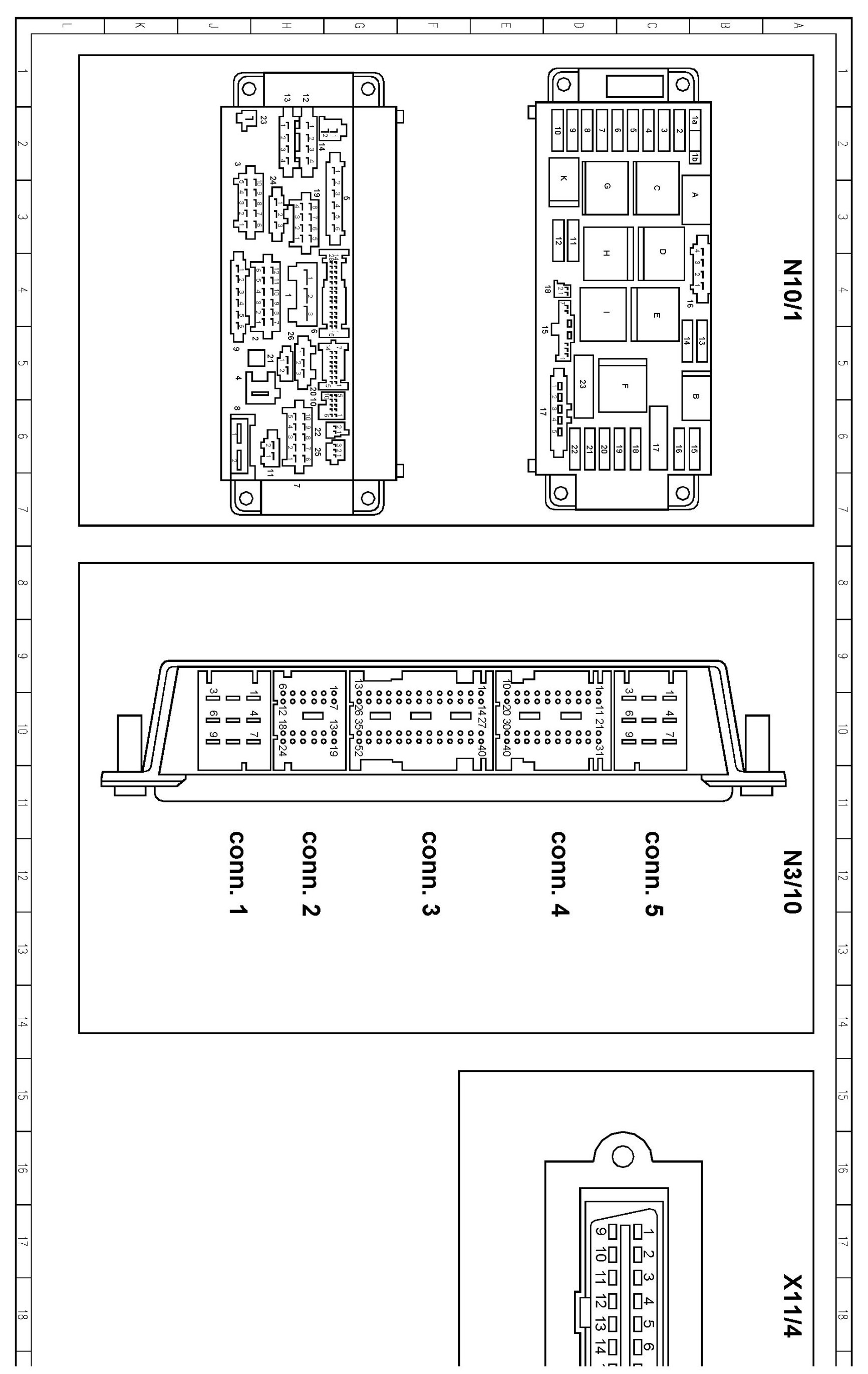

Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
