PE54.21-U-2108GA SAM Control Module With Rear Fuse And Relay Module (N10/2)

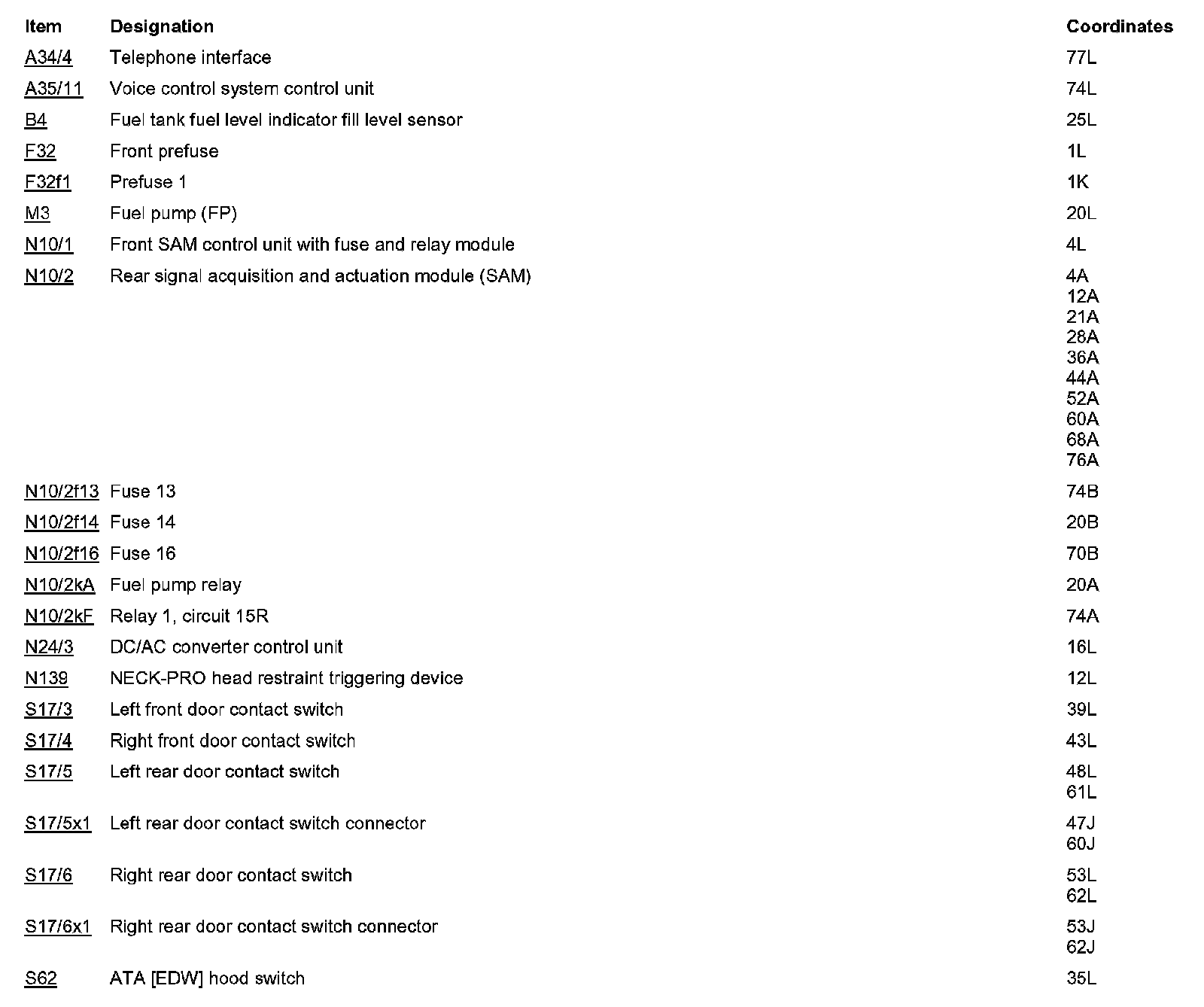

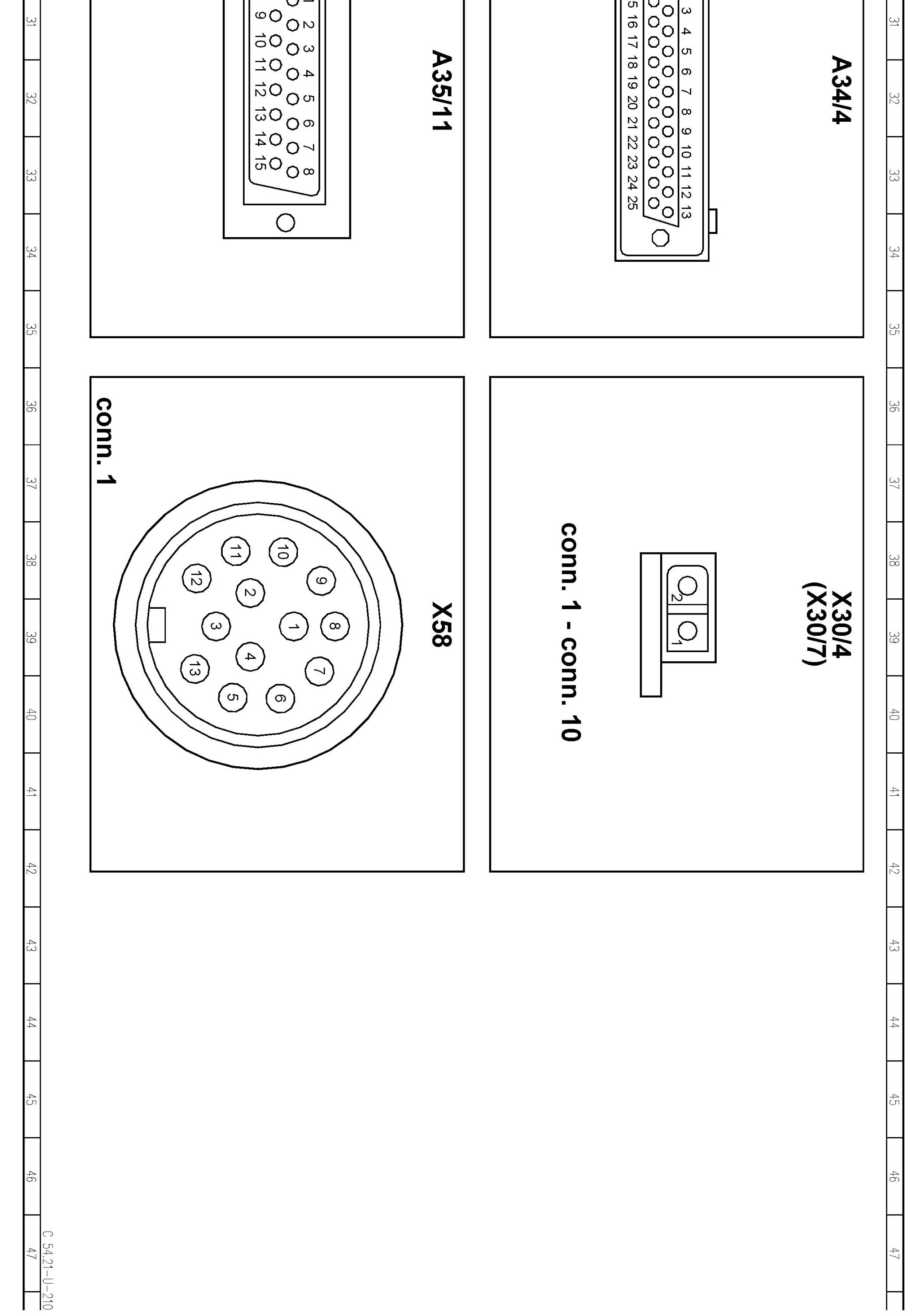

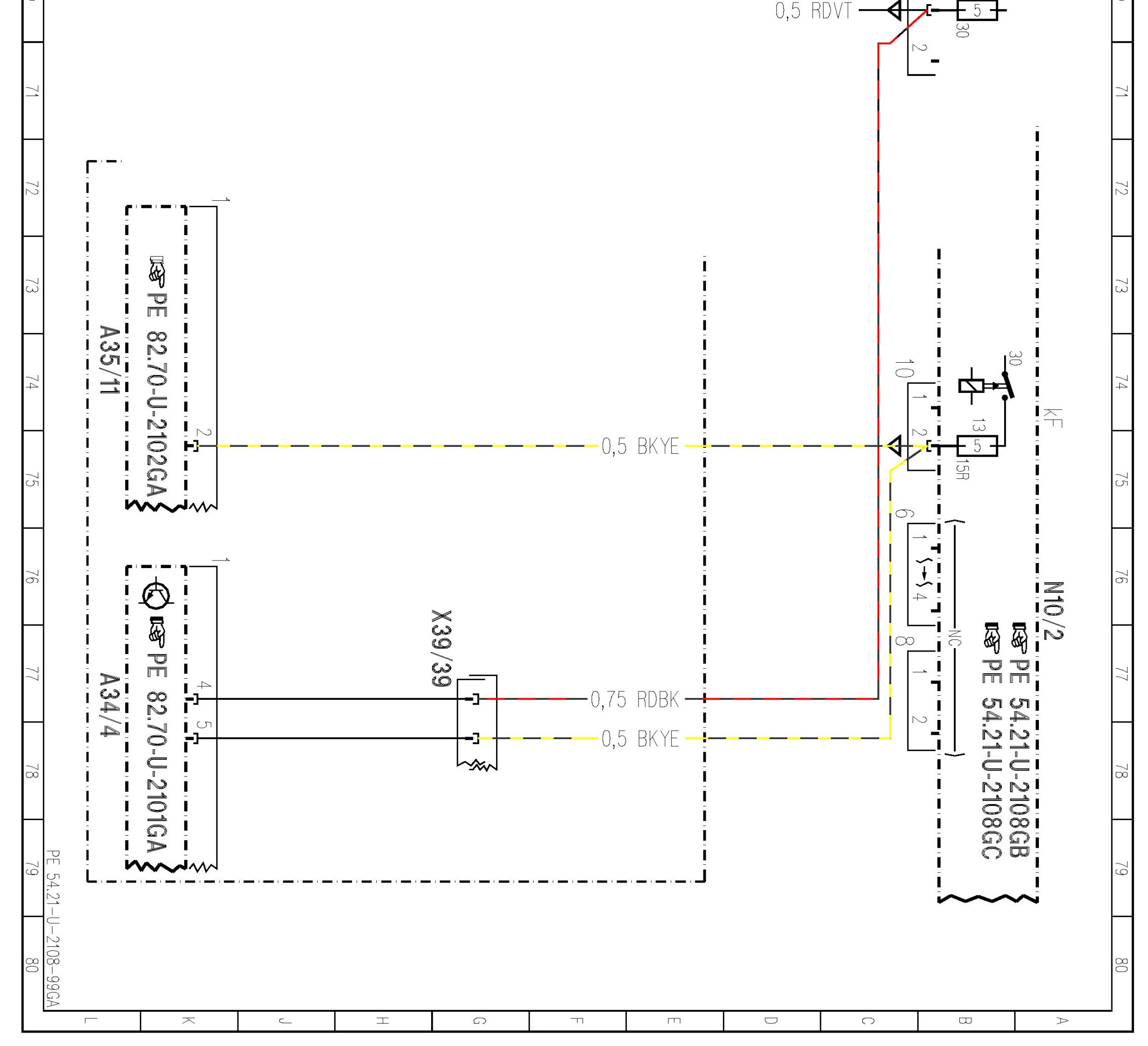

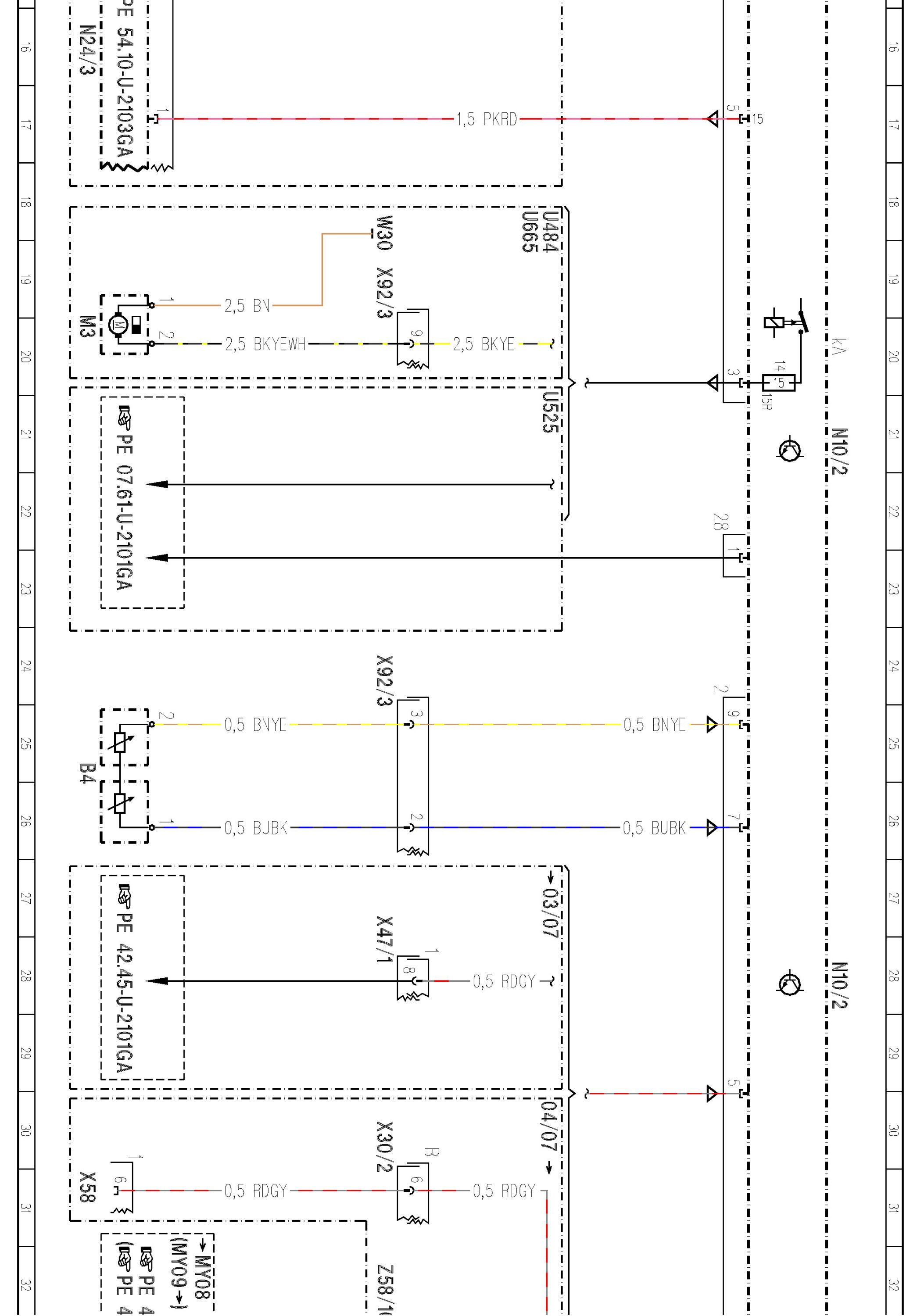

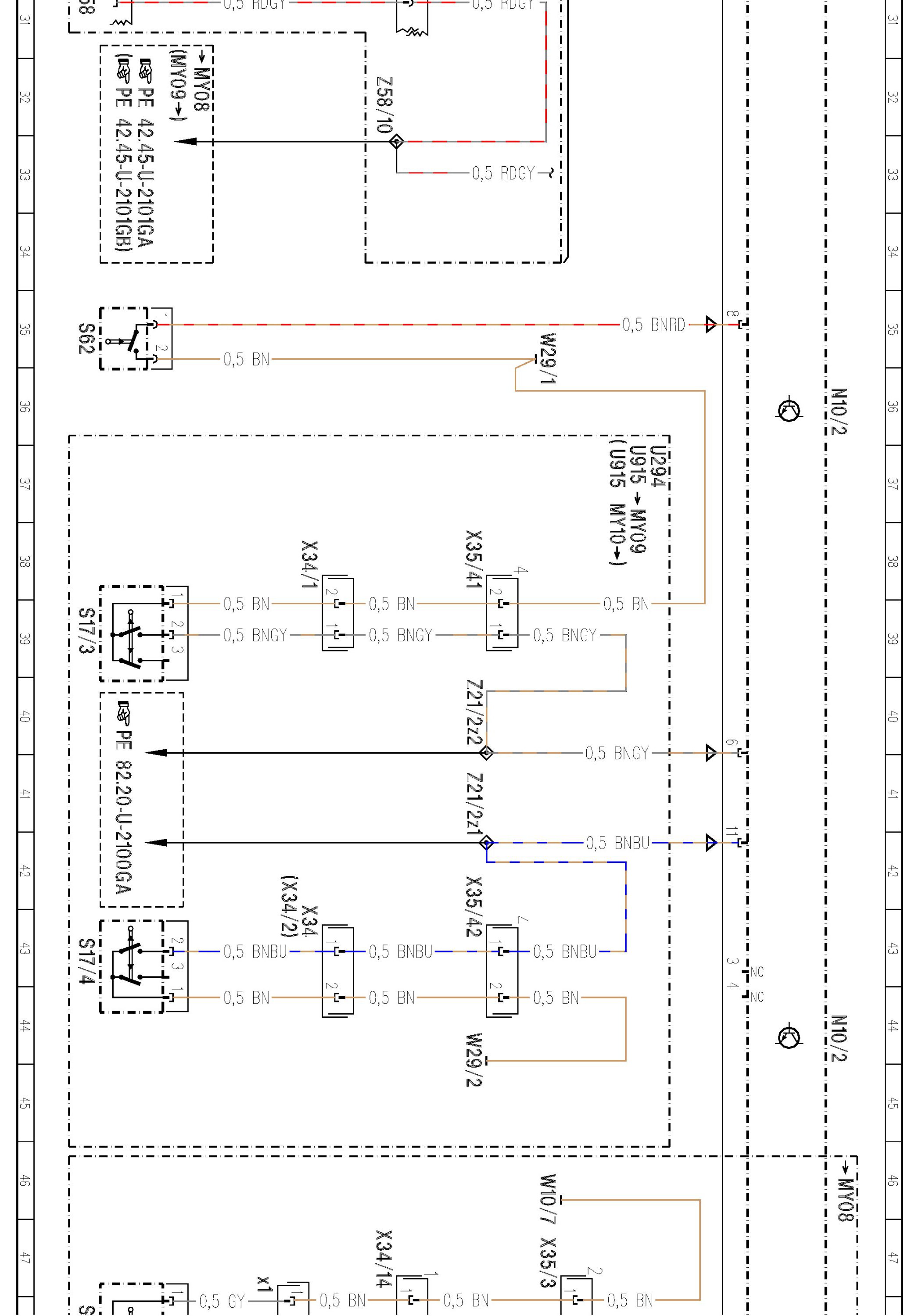

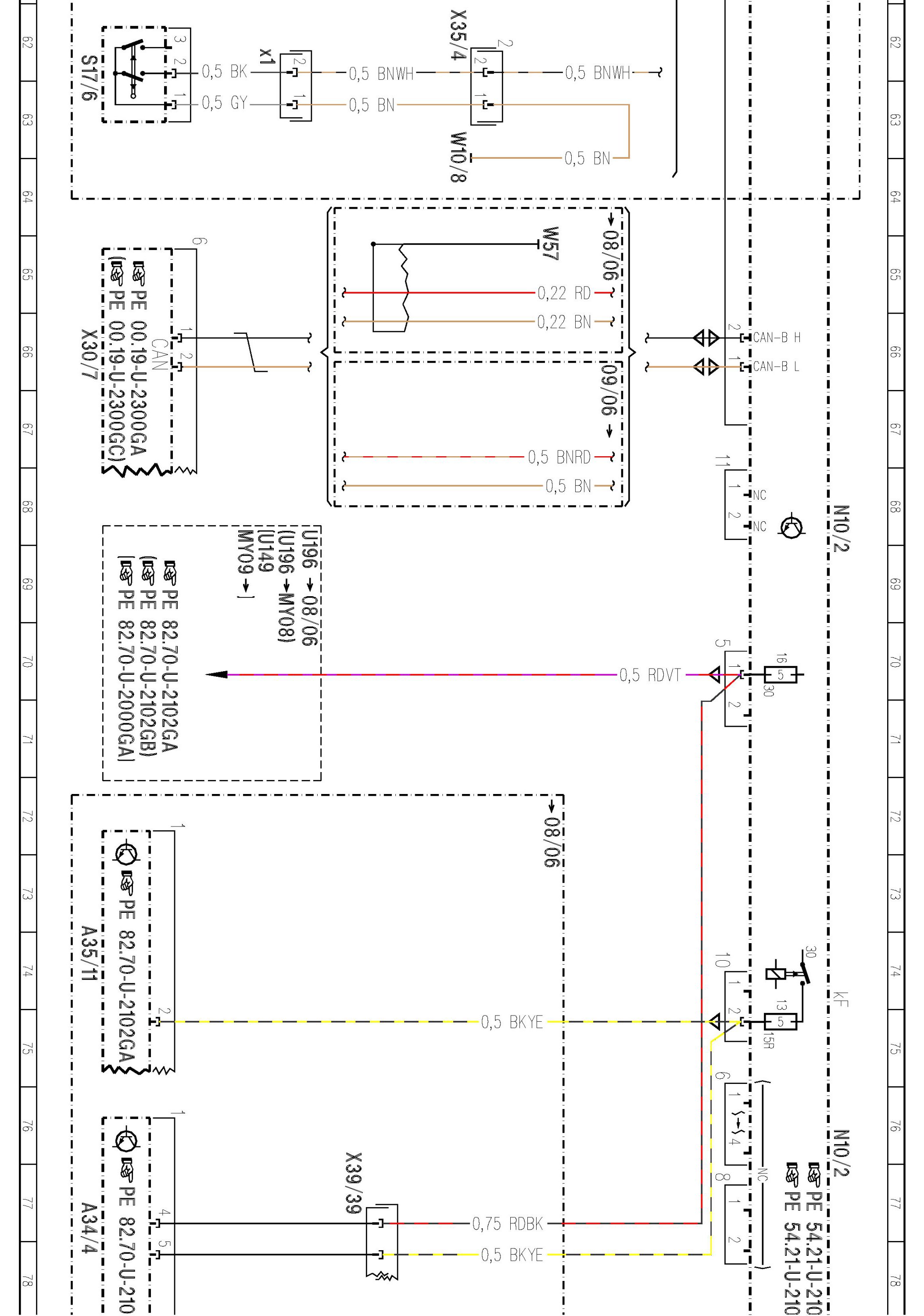

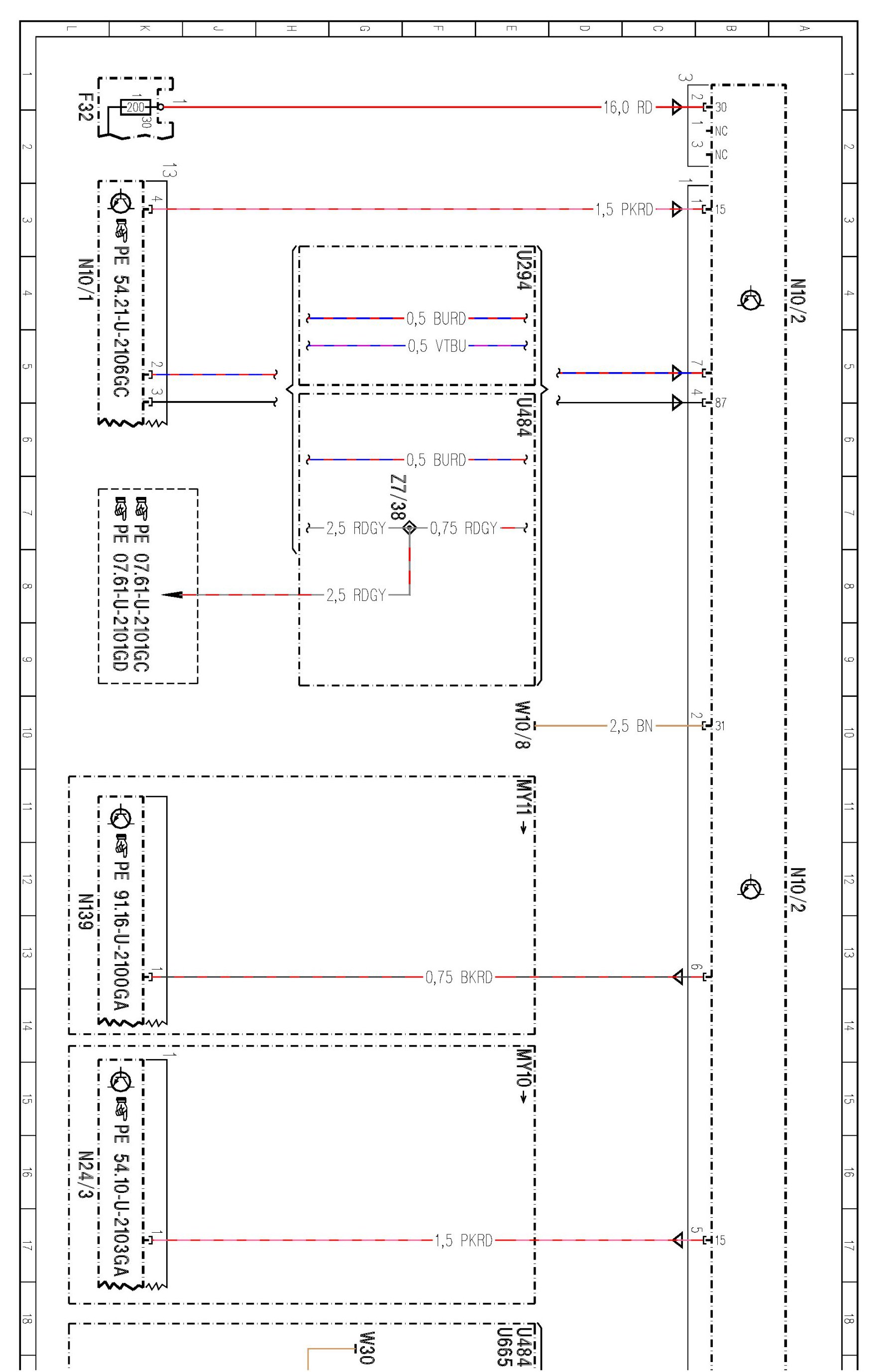

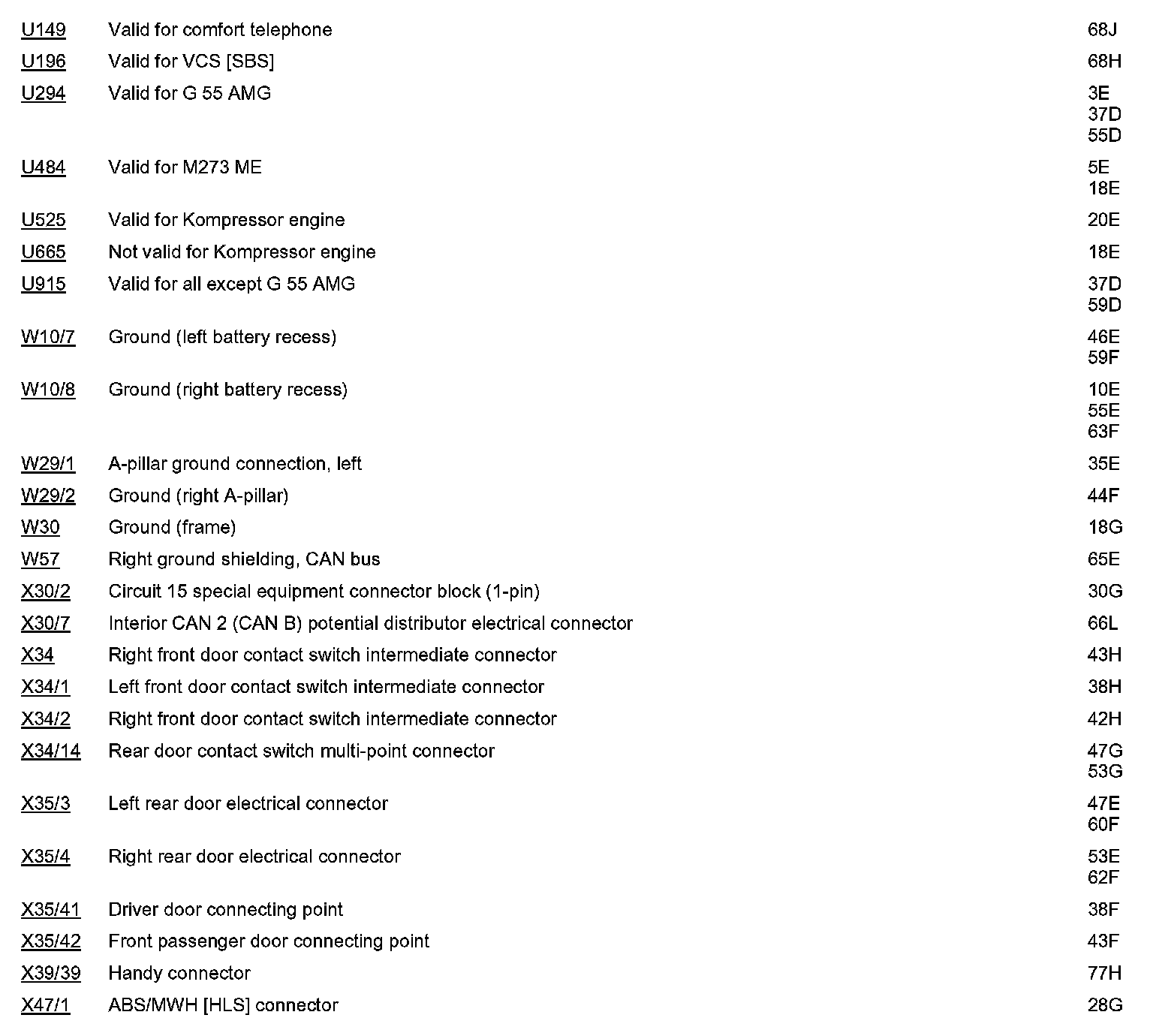

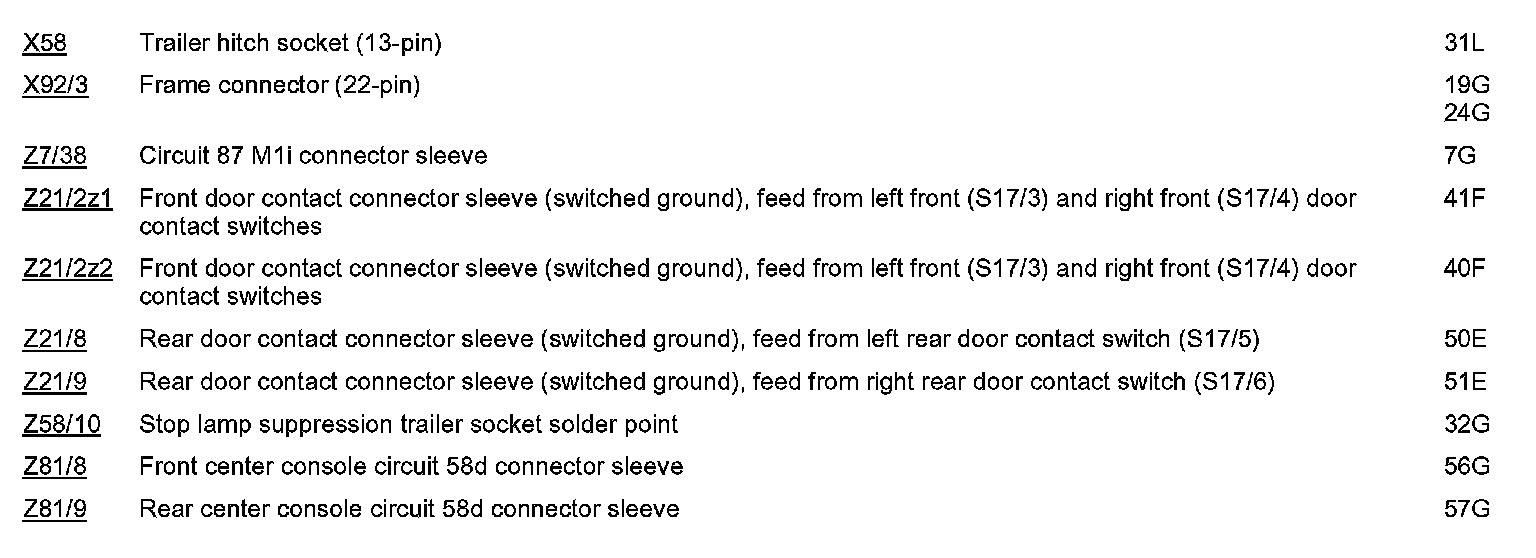

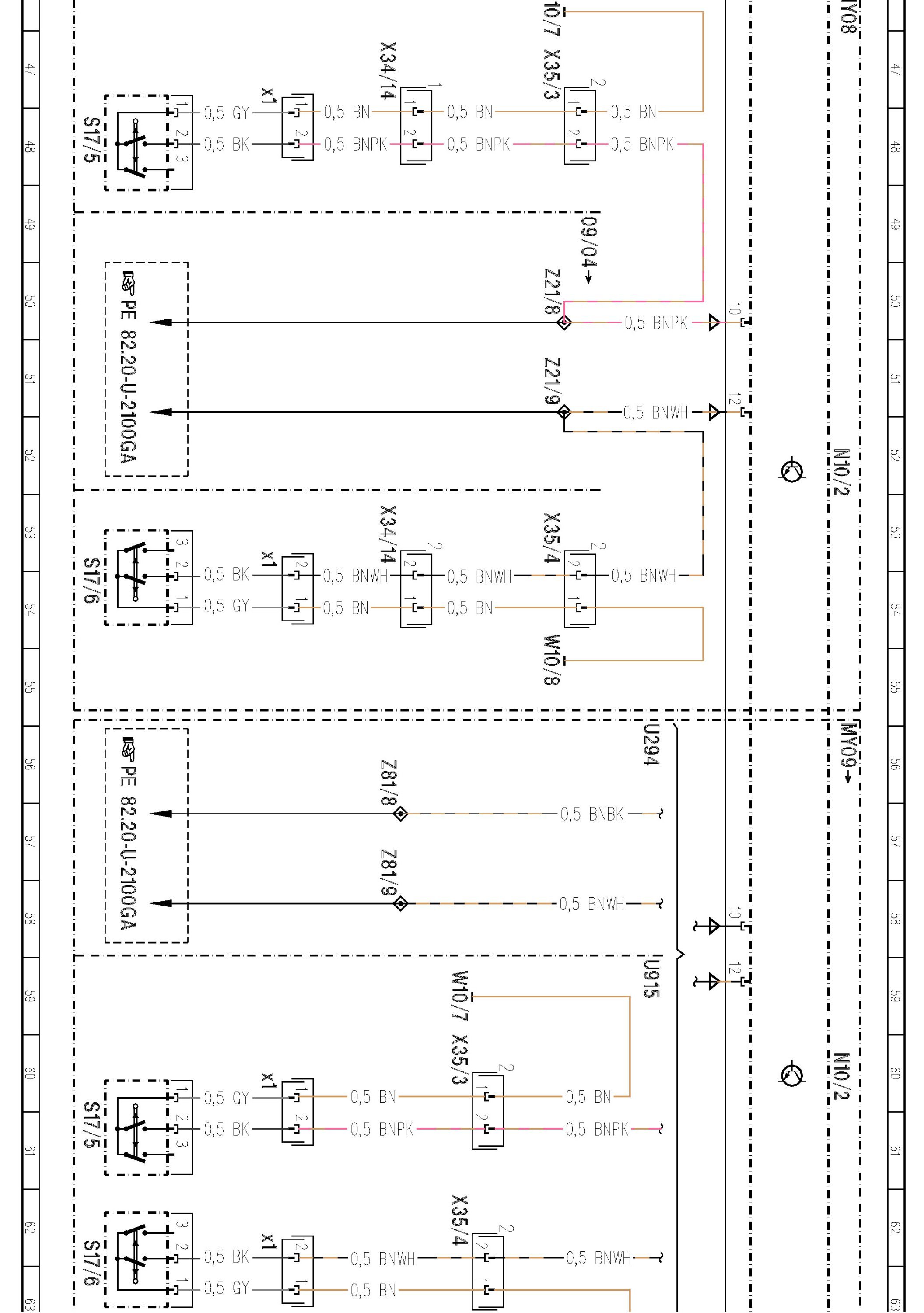

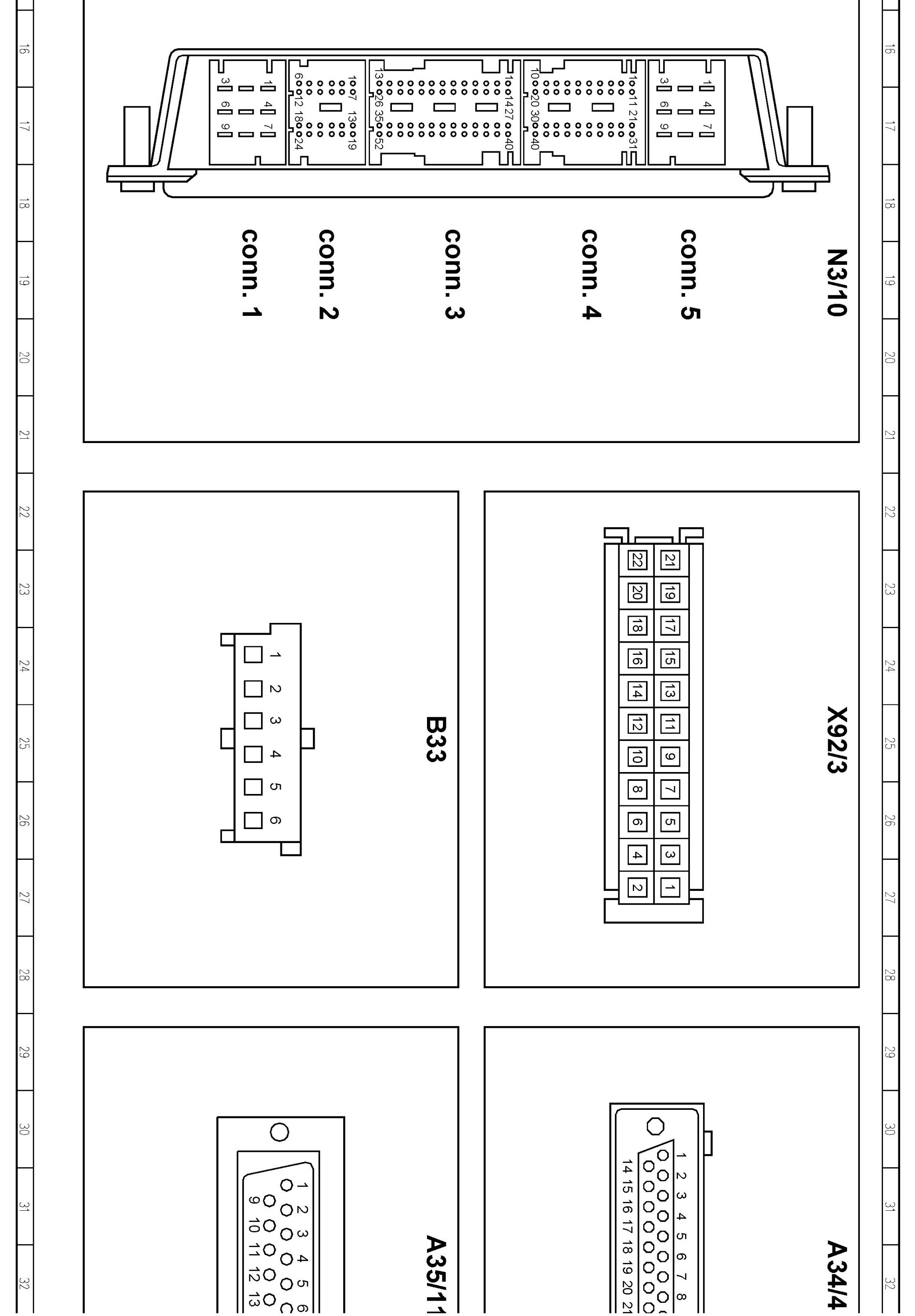

PE54.21-U-2108GA SAM Control Module With Rear Fuse And Relay Module (N10/2) MODEL 463 connectors 1-3, 5, 6, 8, 10, 11, 28, sheet 1

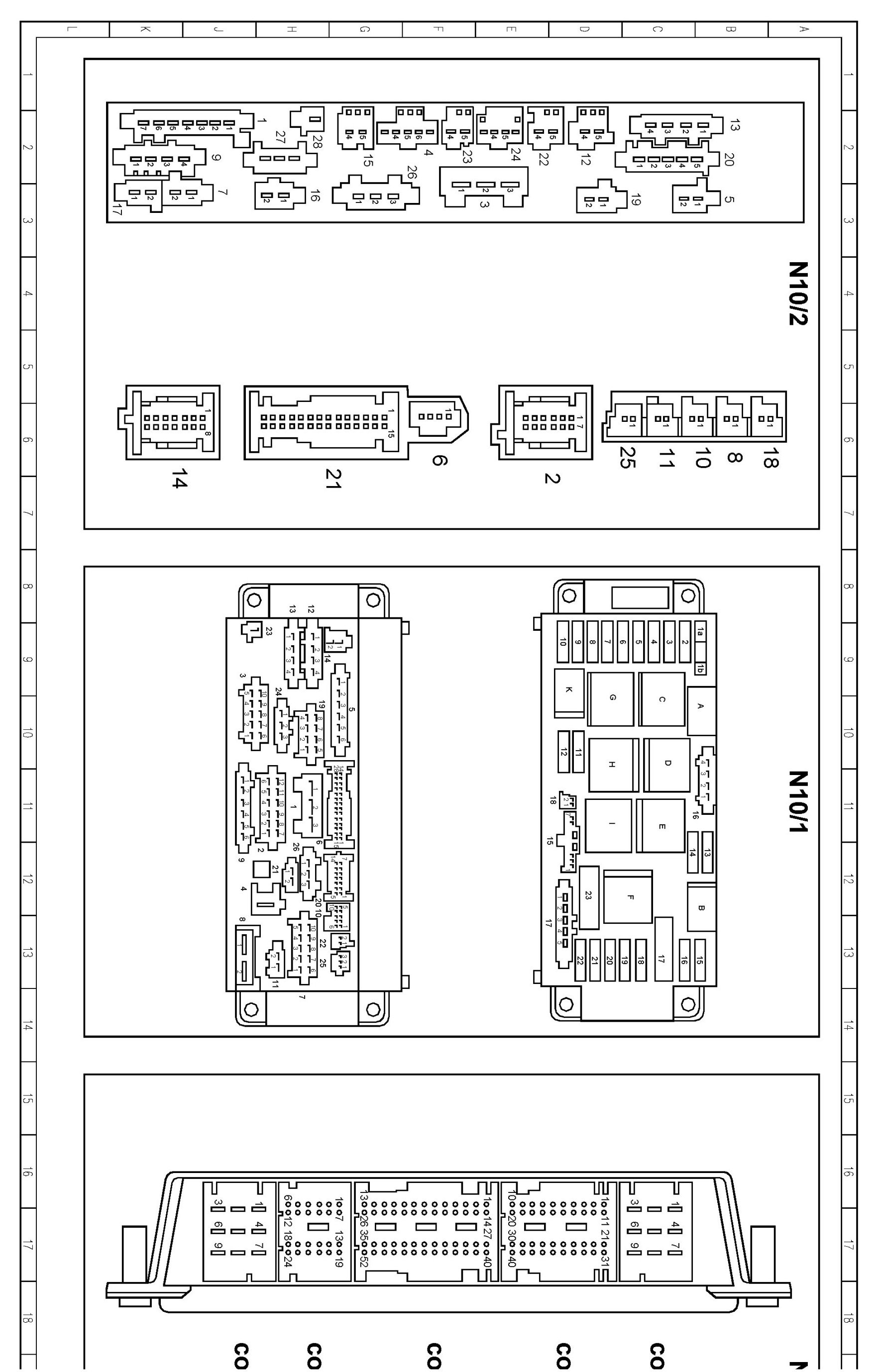

Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
