PE54.21-U-2108GC SAM Control Module With Rear Fuse And Relay Module (N10/2)

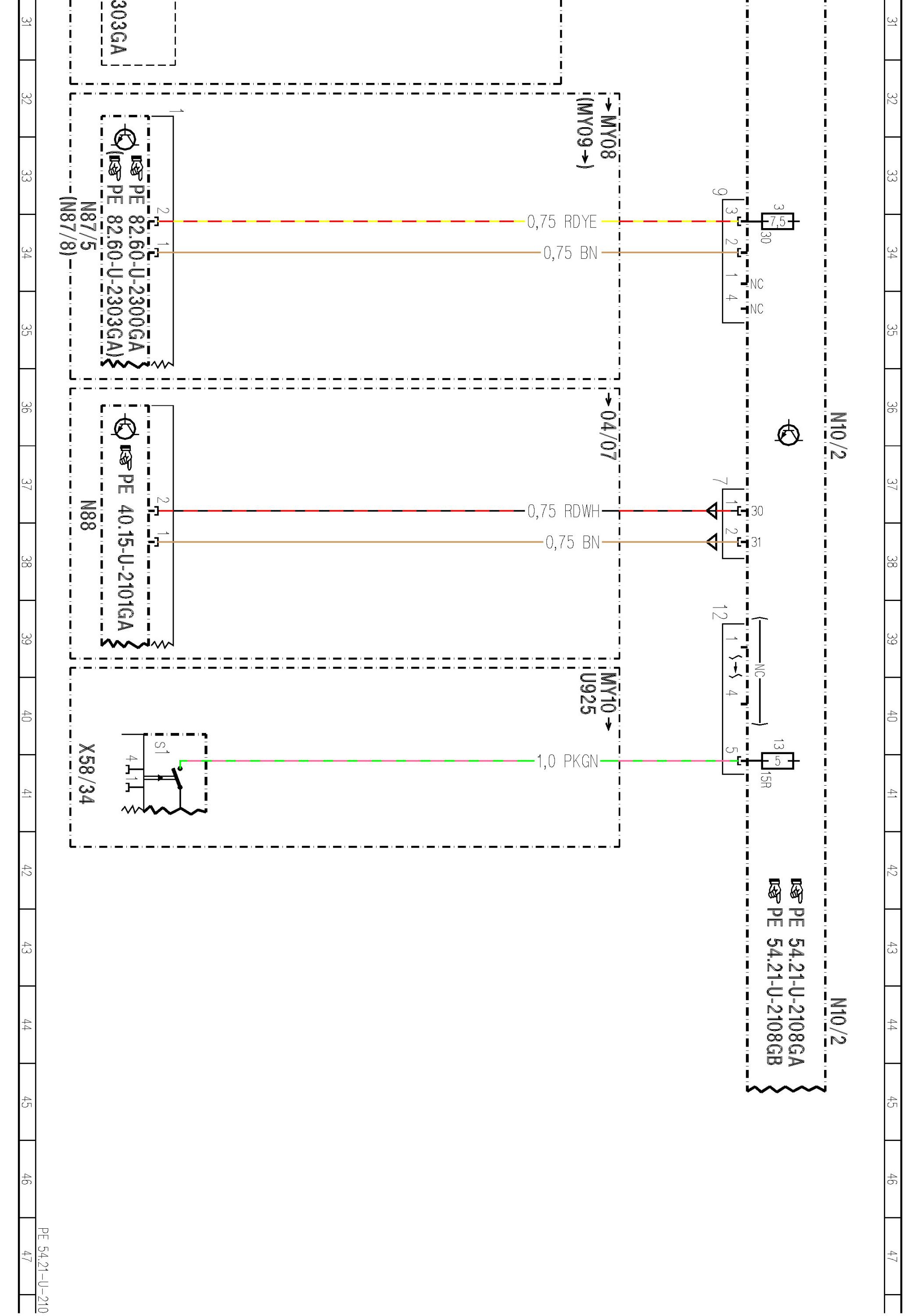

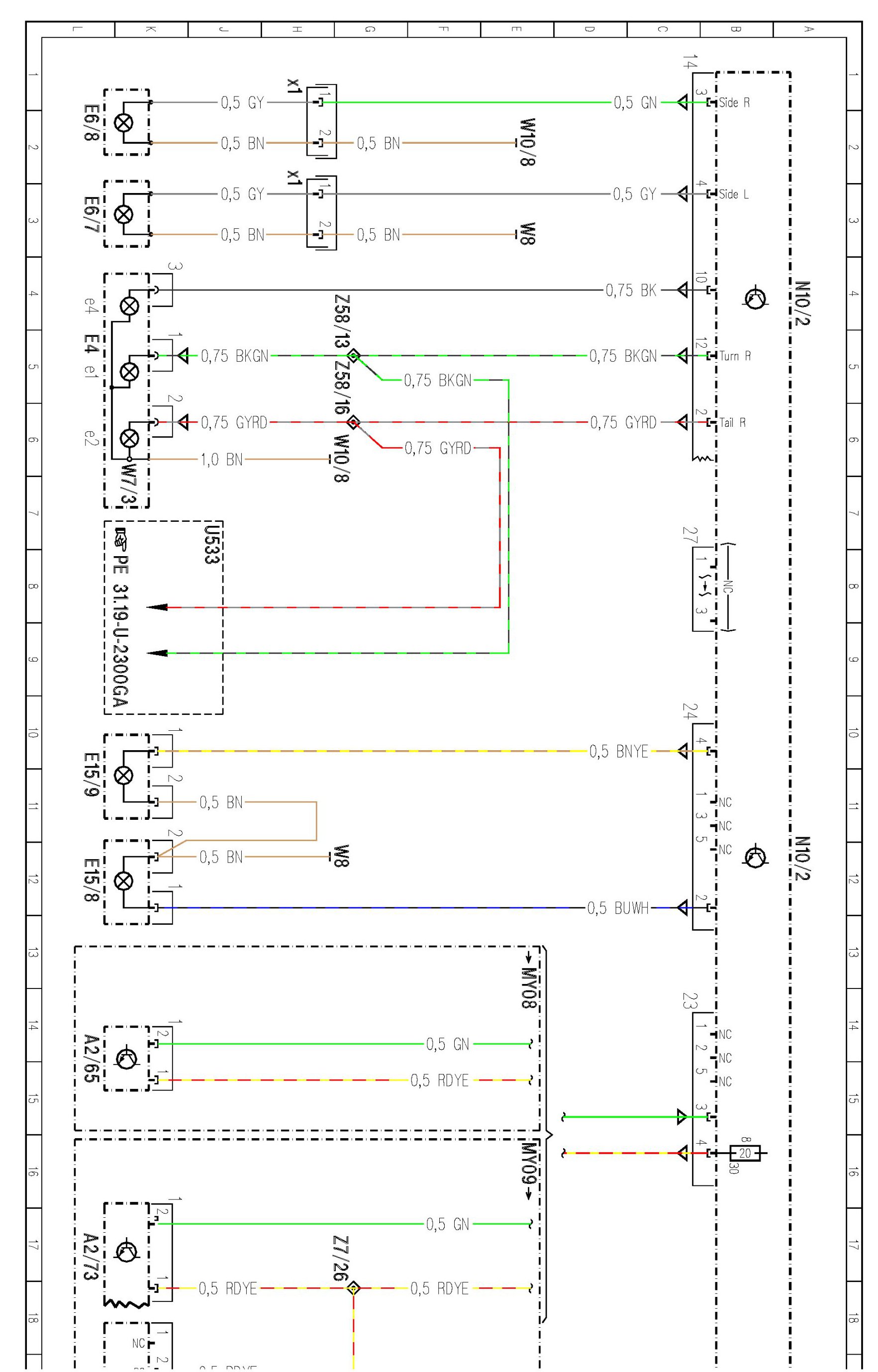

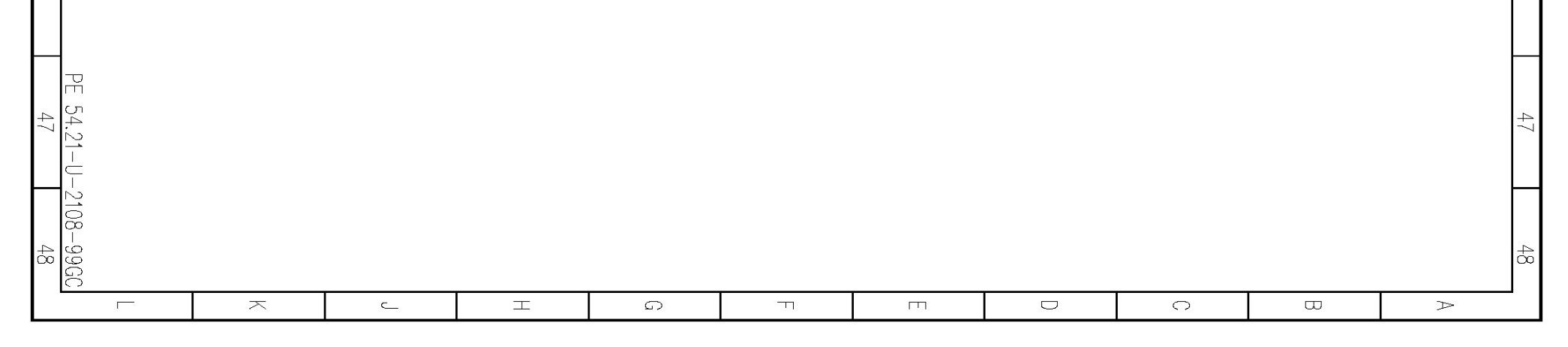

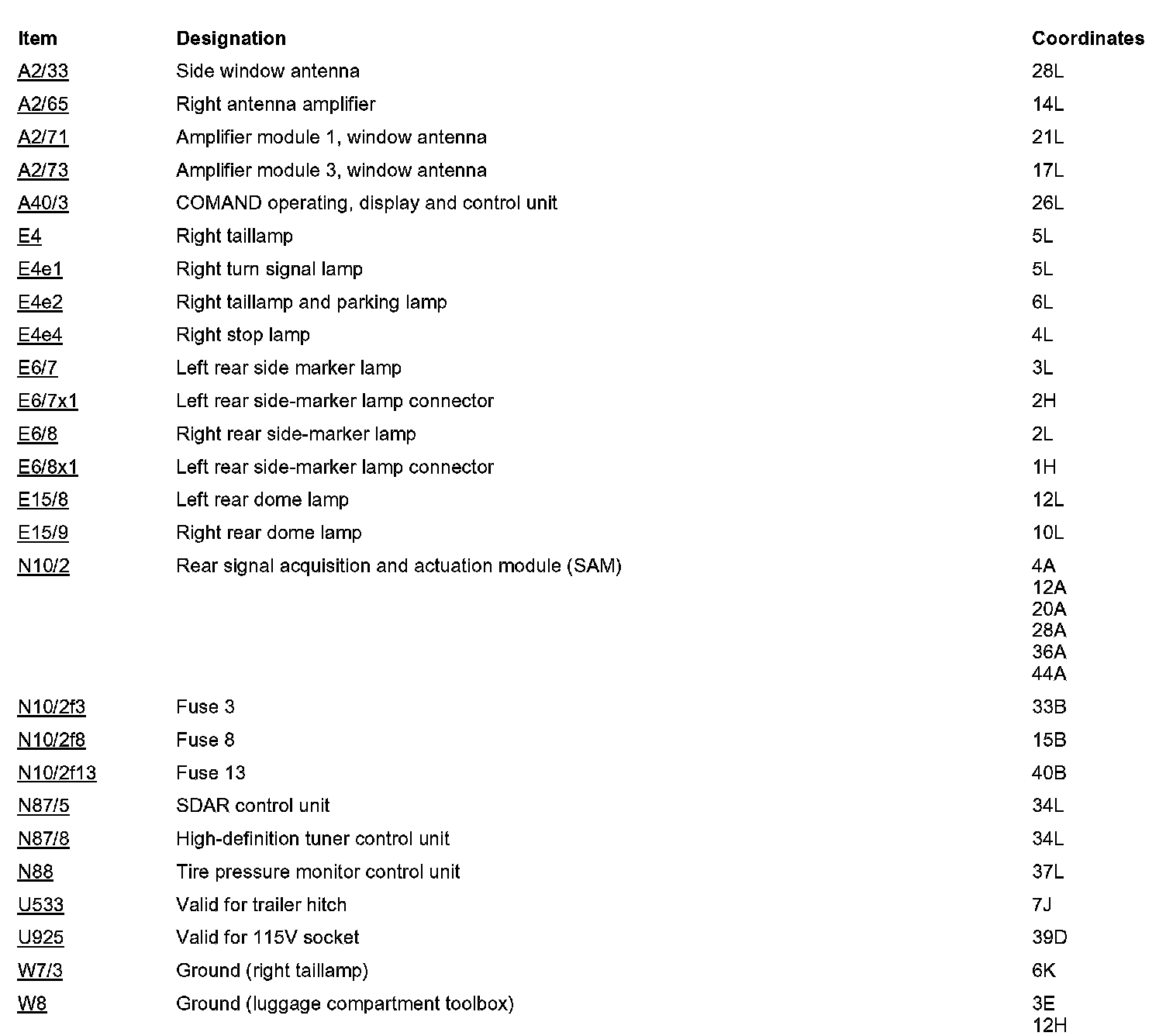

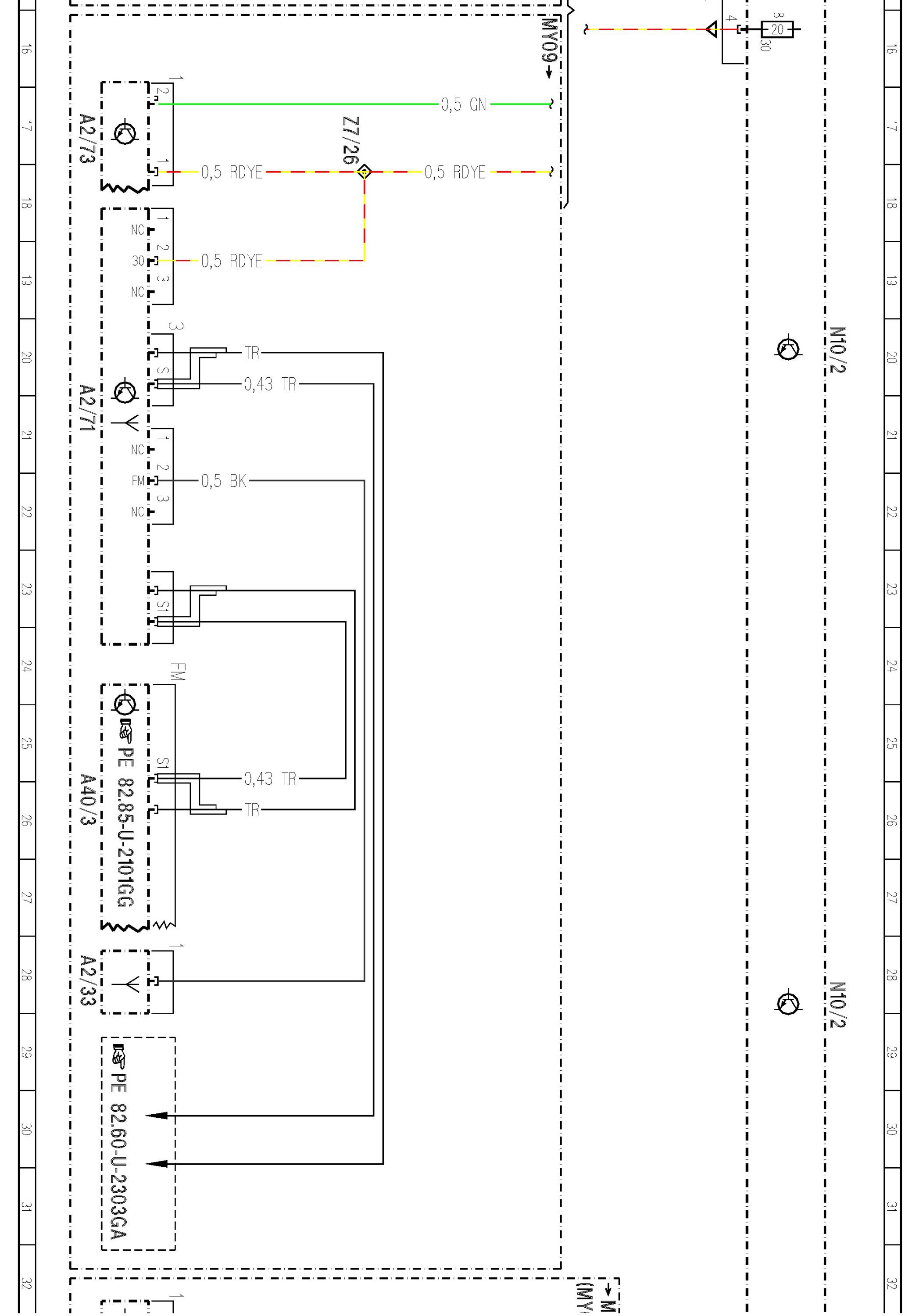

PE54.21-U-2108GC SAM Control Module With Rear Fuse And Relay Module (N10/2) MODEL 463 connectors 7, 9, 12, 14, 23, 24, 27, sheet 3
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
