Seat Temperature Control Module: Service and Repair

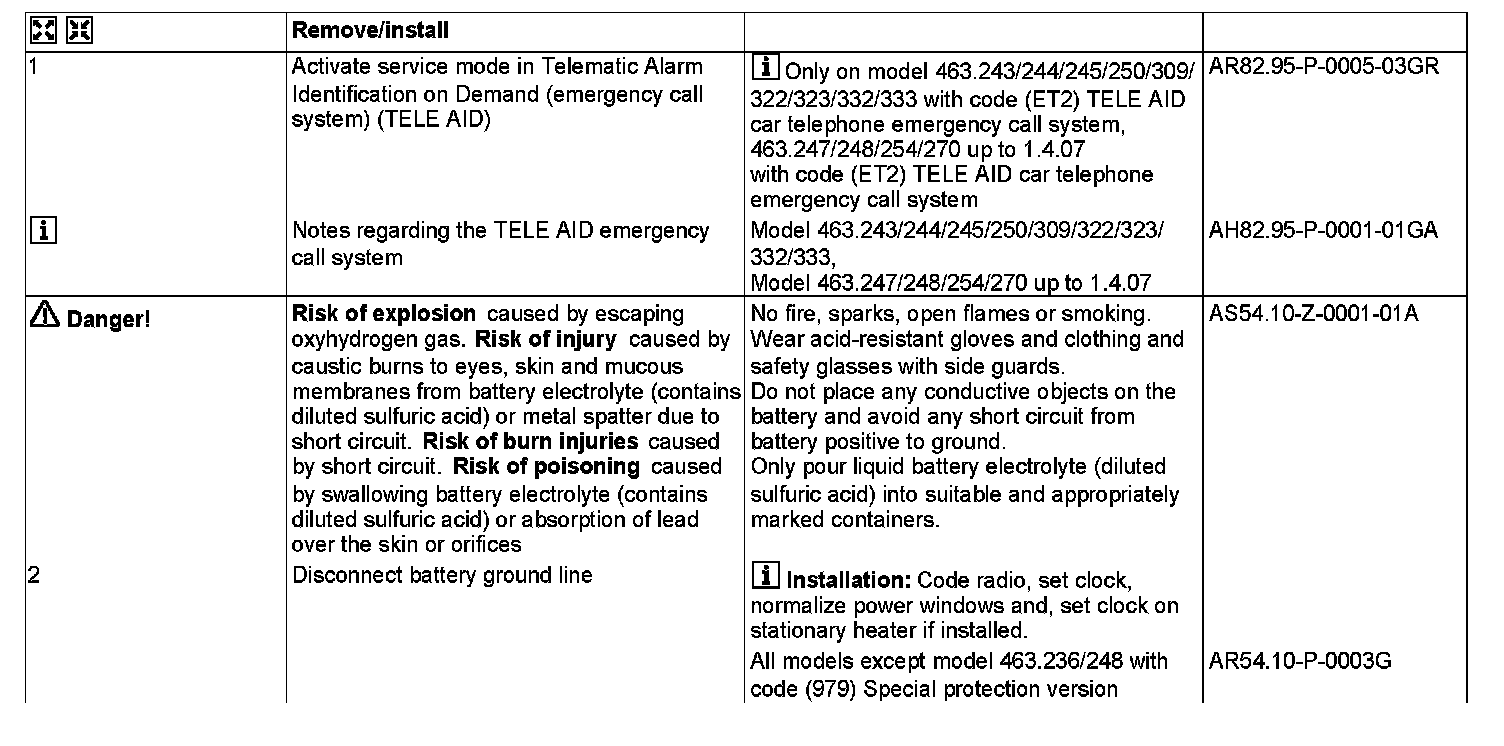

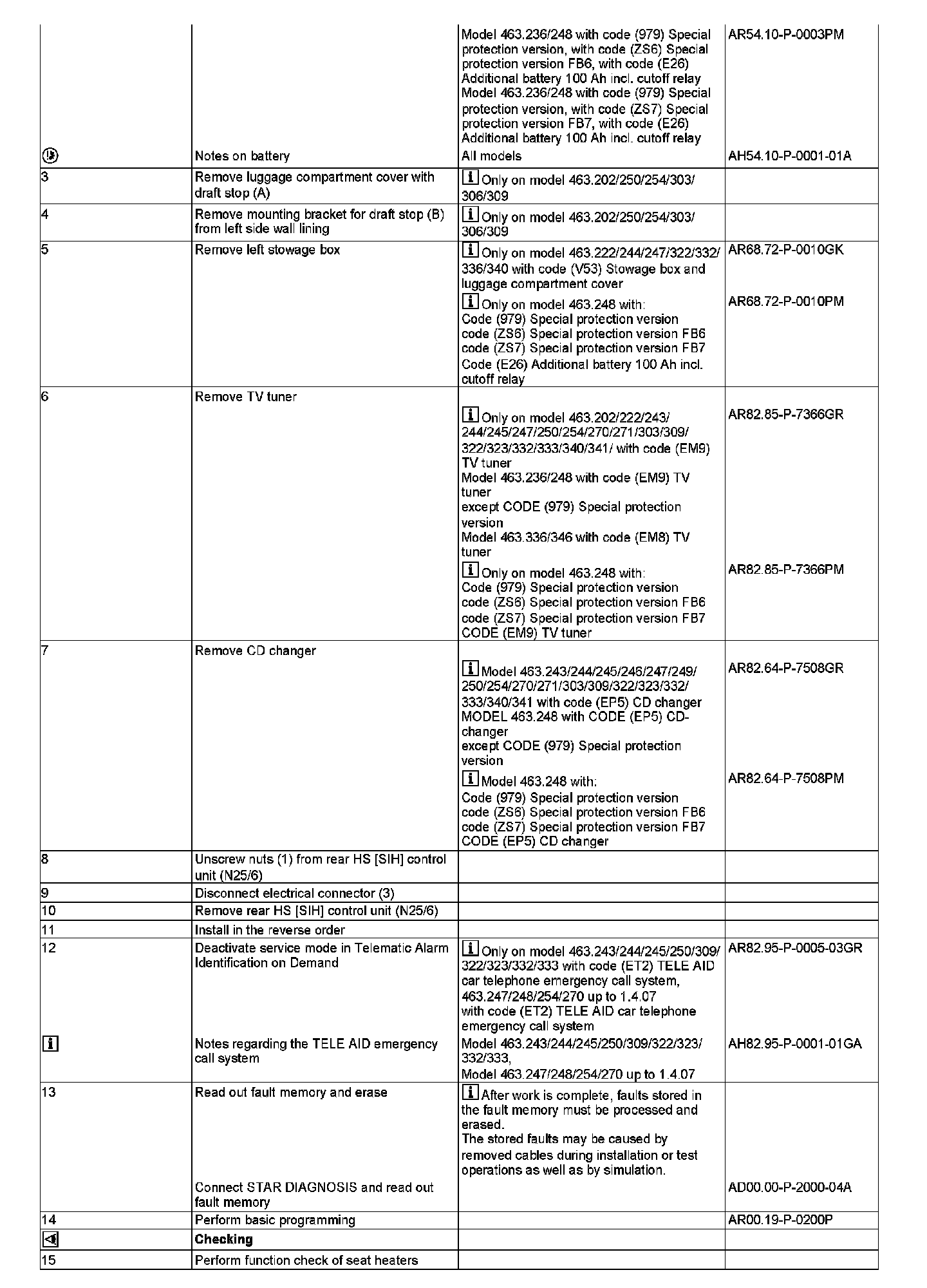

AR91.30-P-0030GR Remove/Install Heated Seats Control Unit
MODEL 463.222 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341
- with CODE (H11) Heated rear bench seat
MODEL 463.202 /236 /237 /346
- with CODE (H11) Heated rear bench seat
up to model year 2013 /model refinement package 2012

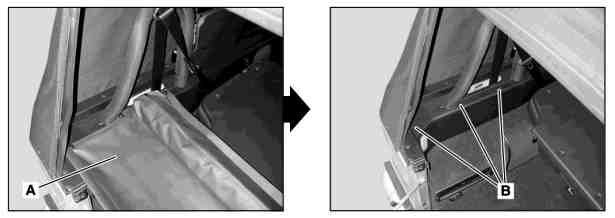

Illustrated on model 463.250

A Luggage compartment cover with draft stop
B Draft stop mounting bracket

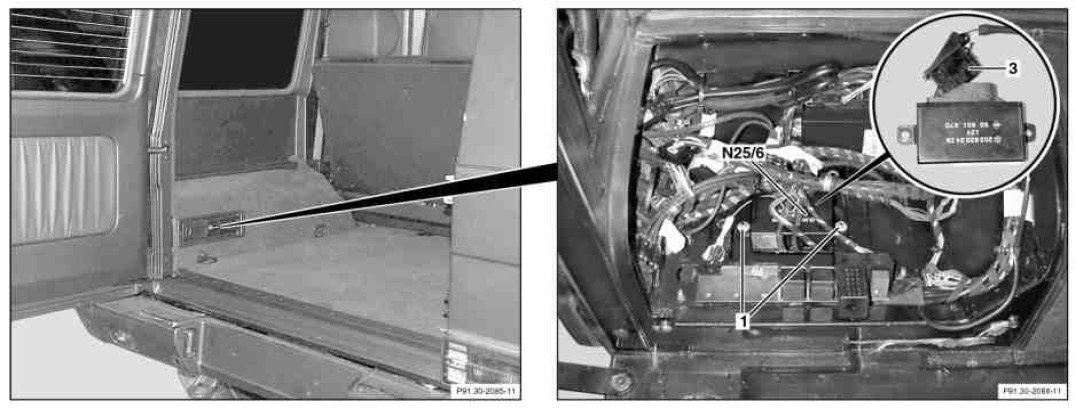

Shown on model 463.248

1 Nuts
3 Electrical connector

N25/6 Rear HS [SIH] control unit
