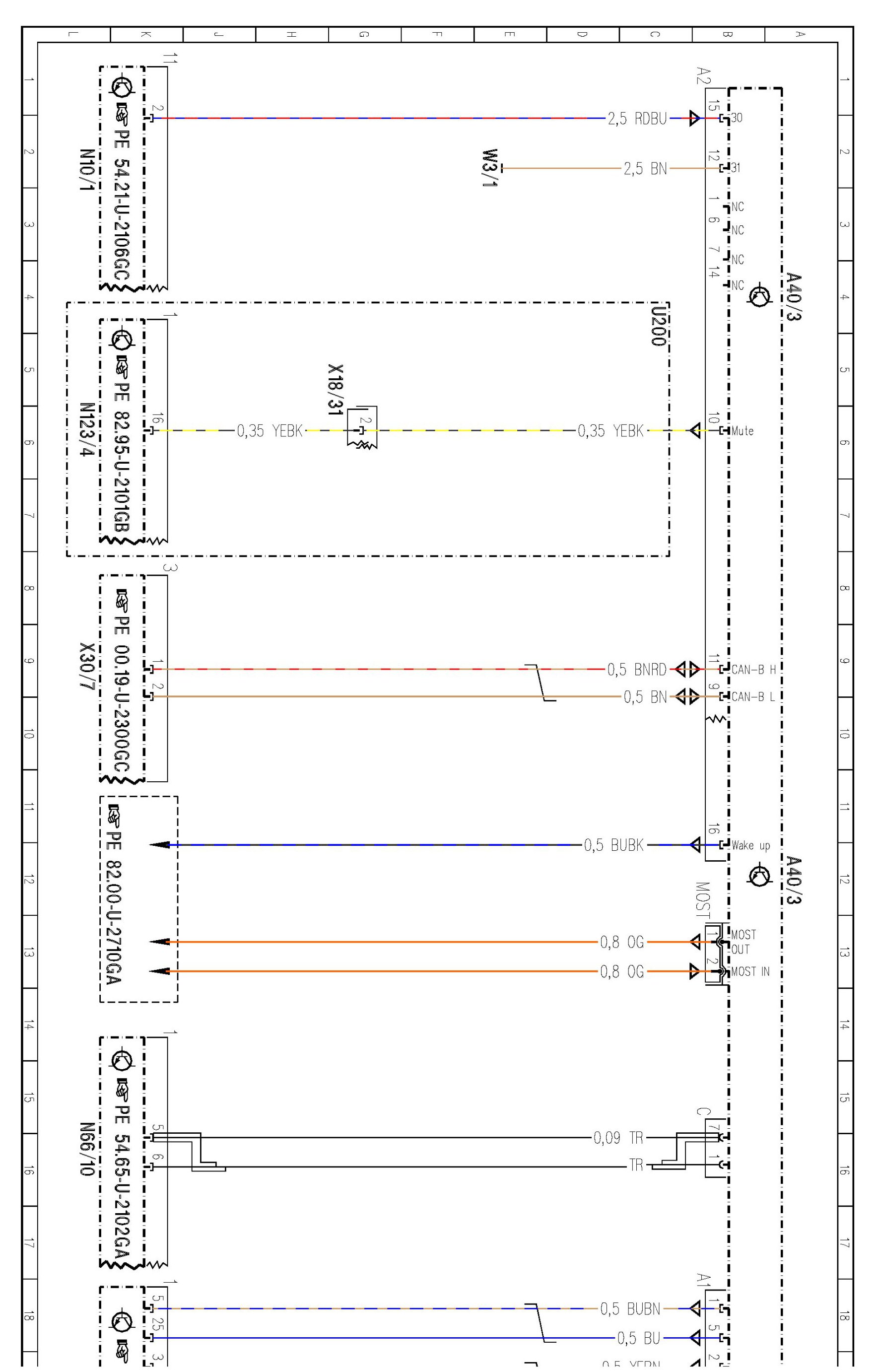

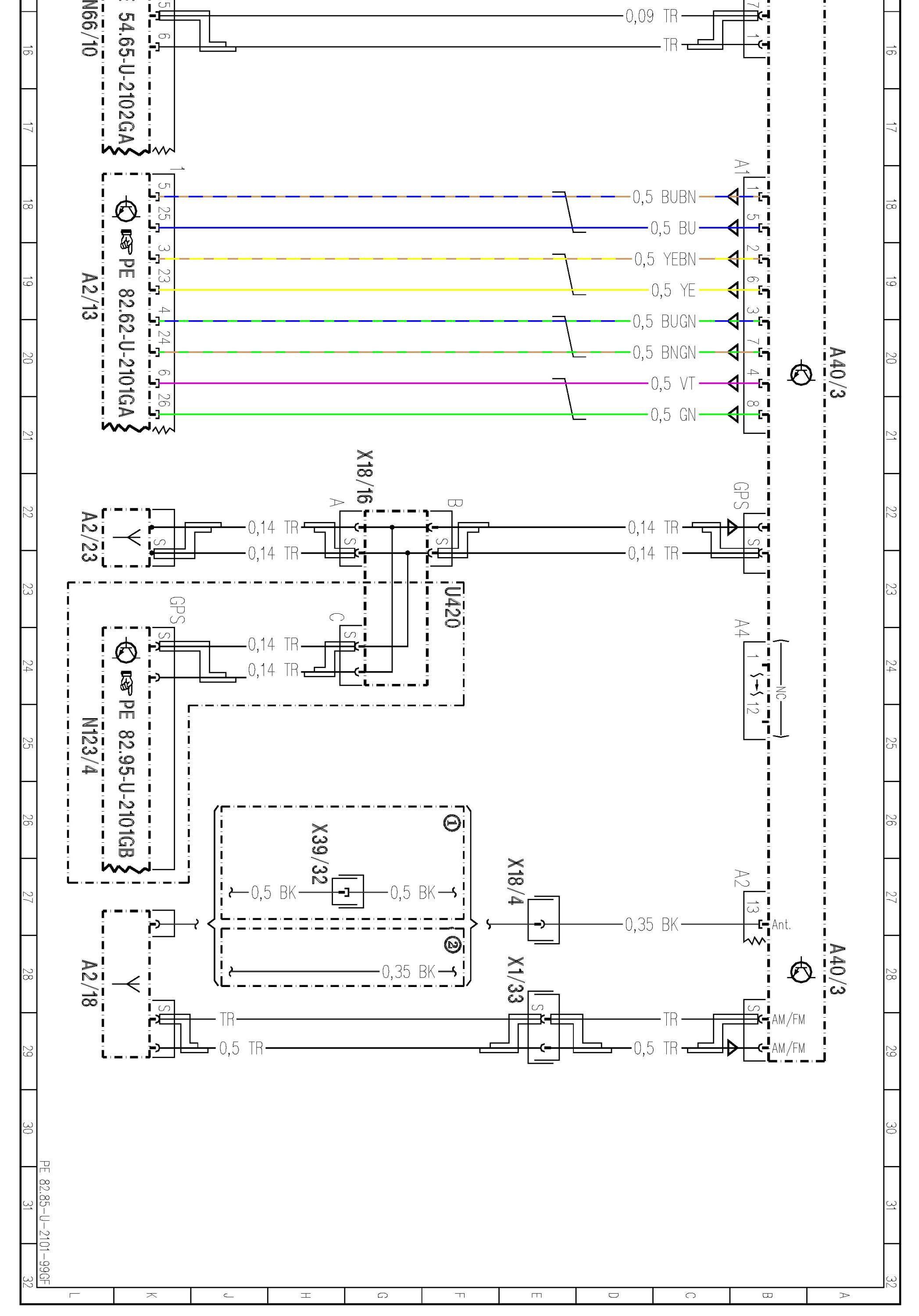

PE82.85-U-2101GF Cockpit Management And Data System (COMAND) Control Module
PE82.85-U-2101GF Cockpit Management And Data System (COMAND) Control Module MODEL 463
-
as of 04/01/07
-
up to Model Year 08 YoM with sound,
-
control module A40/3

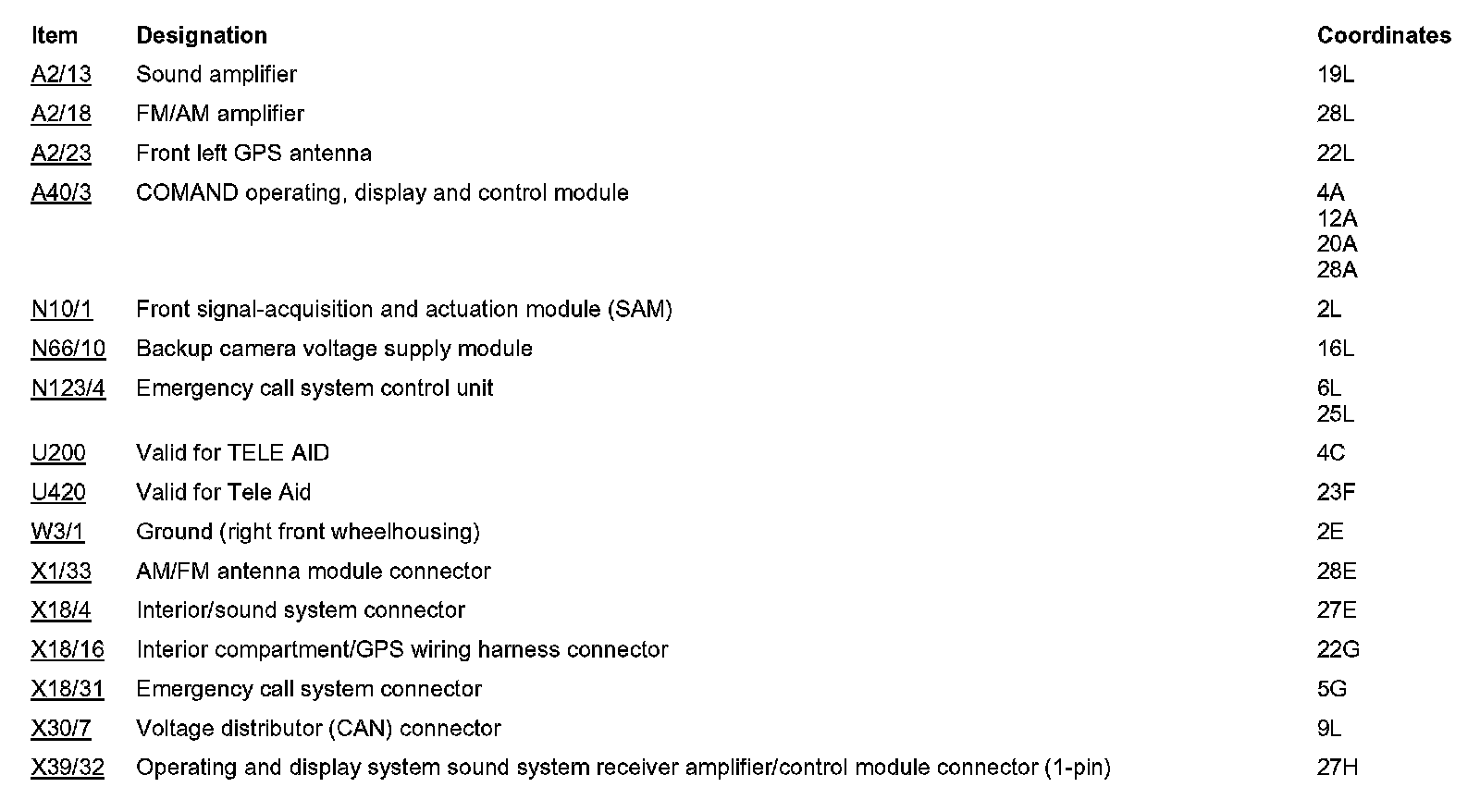

Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
