Power Distribution Module: Diagrams

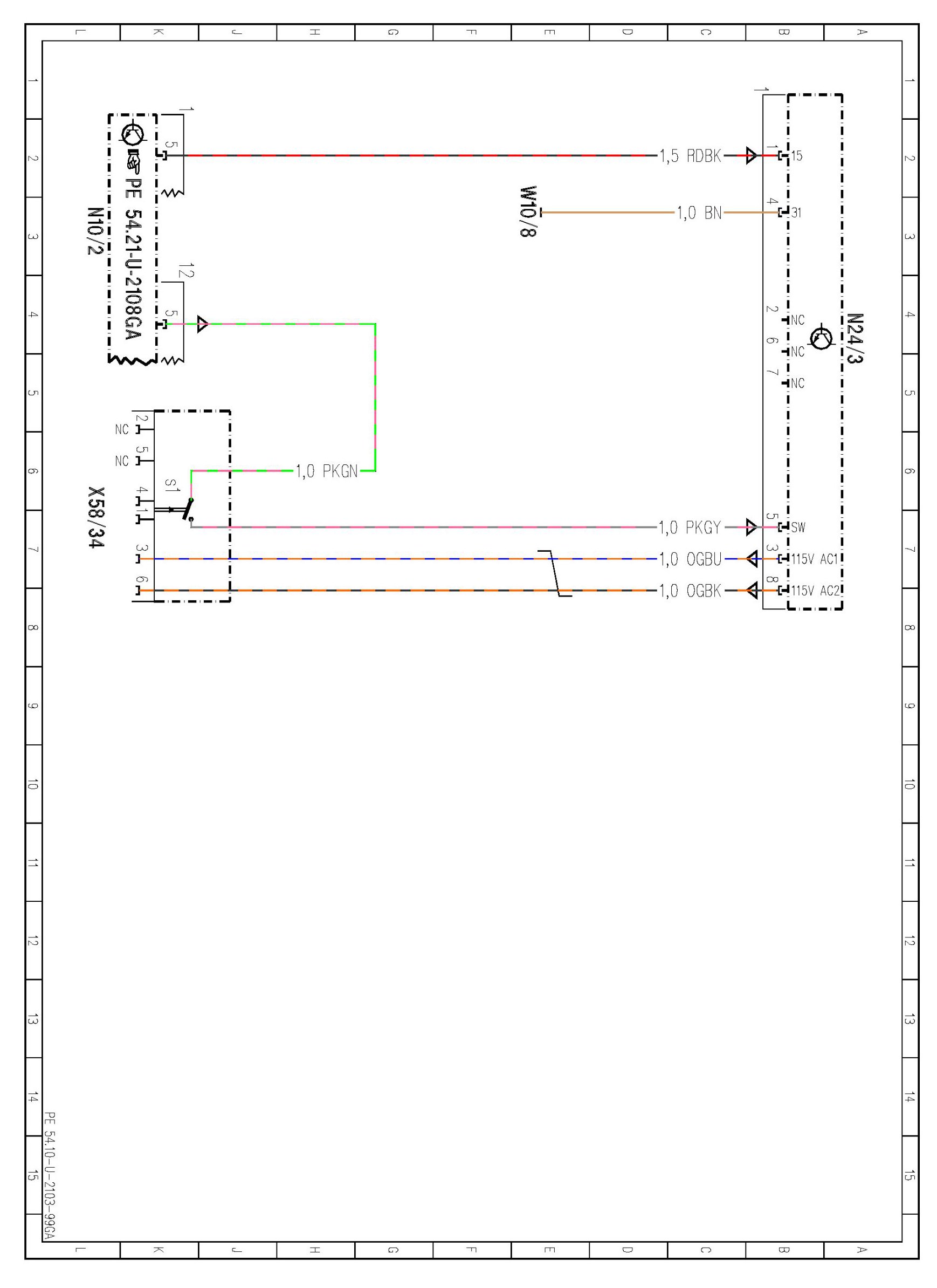

PE54.10-U-2103GA Control Unit DC/AC Converter MODEL 463.271 /237
-
with CODE (E47) Socket, 115V
-
control unit N24/3
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
