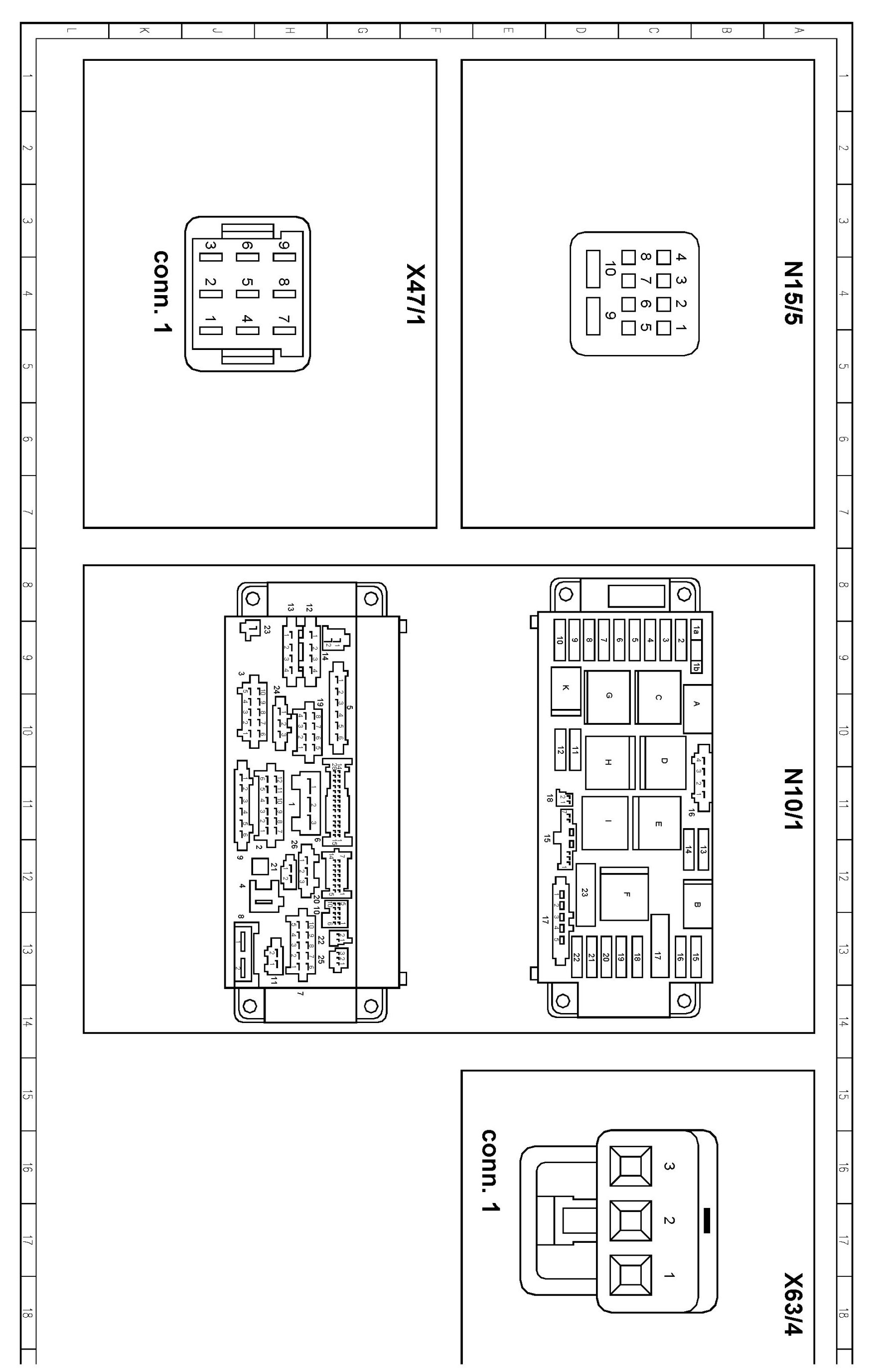

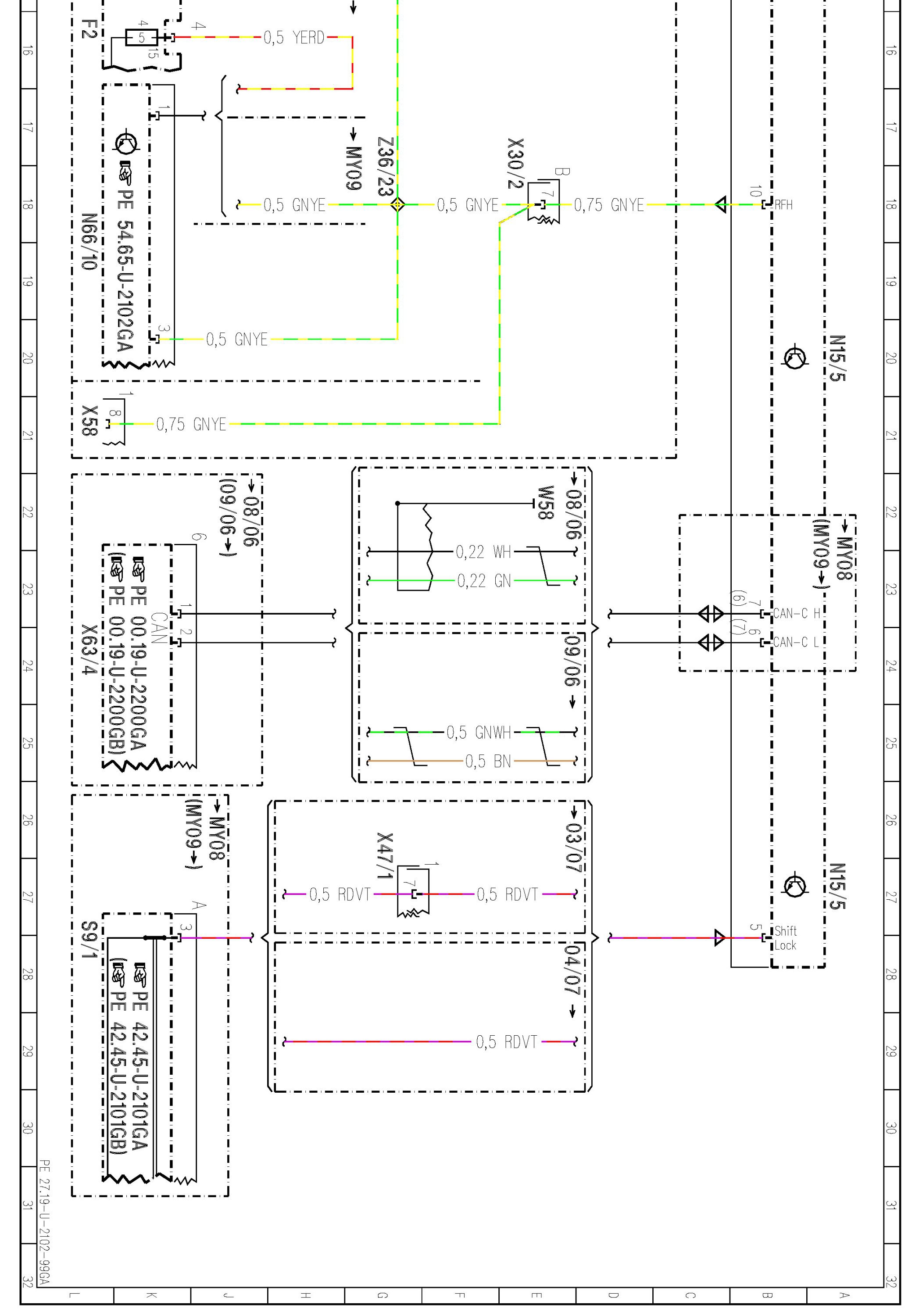

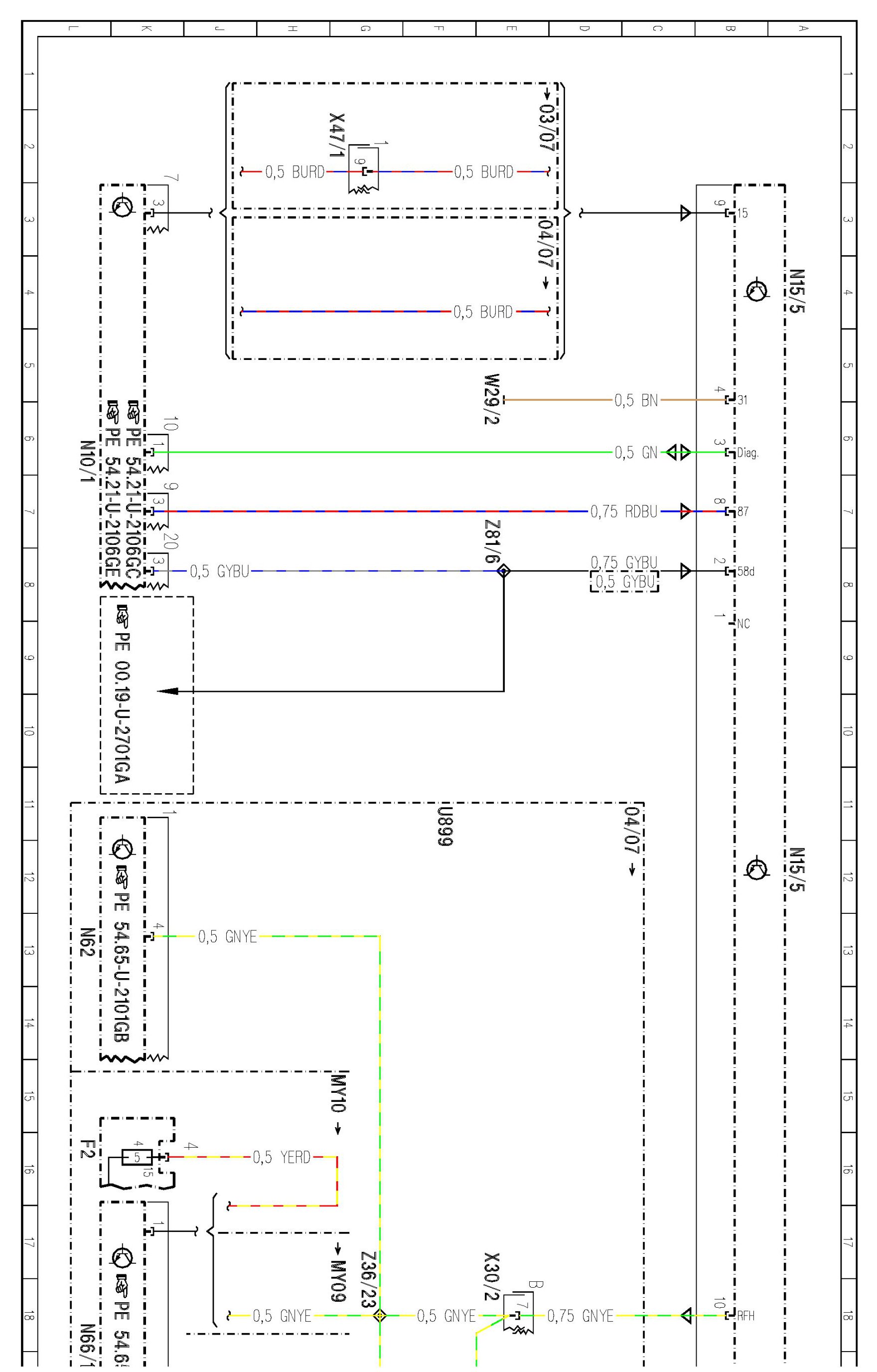

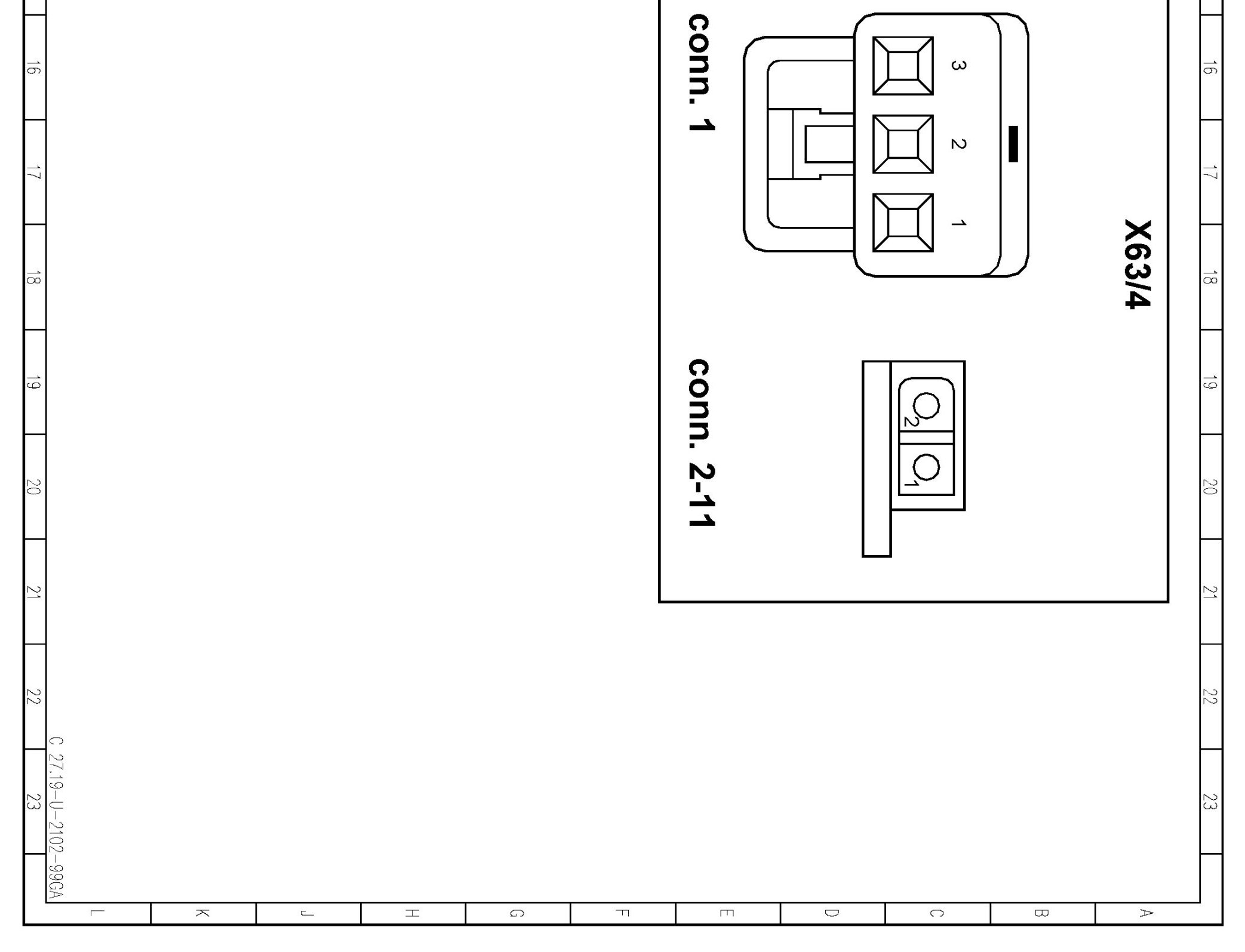

PE27.19-U-2102GA Electronic Selector Module Control Module



PE27.19-U-2102GA Electronic Selector Module Control Module
TRANSMISSION 722.6 /9 in MODEL 463
- control module N15/5






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
