Control Module: Service and Repair

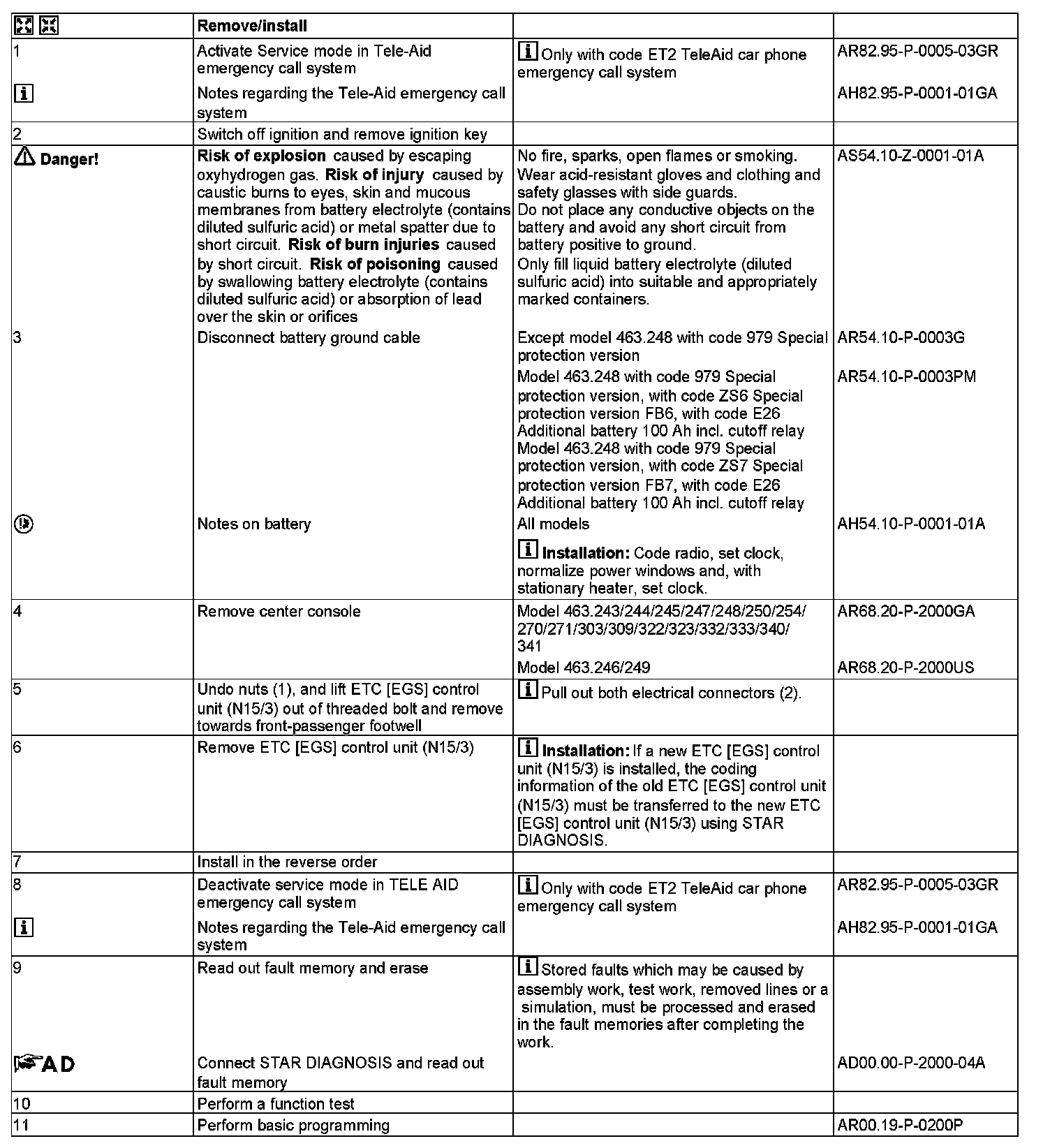

AR27.19-P-1719GA Remove/Install Electronic Transmission Control (ETC) Control Unit
TRANSMISSION 722.610 in MODEL 463.244 /245 /250
TRANSMISSION 722.630 in MODEL 463.243 /246 /247 /248 /249 /254
TRANSMISSION 722.637 in MODEL 463.322 /323
TRANSMISSION 722.638 in MODEL 463.309 /332 /333
TRANSMISSION 722.645 in MODEL 463.270 /271

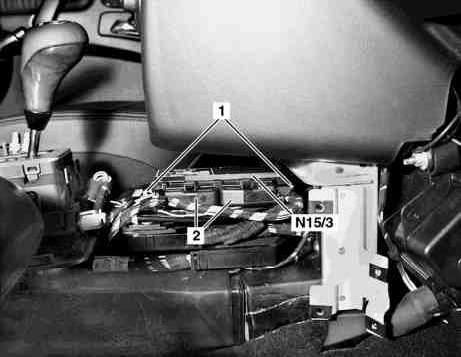

1 Nut
2 Electrical connector
N15/3 ETC [EGS] control unit
