Control Module: Service and Repair

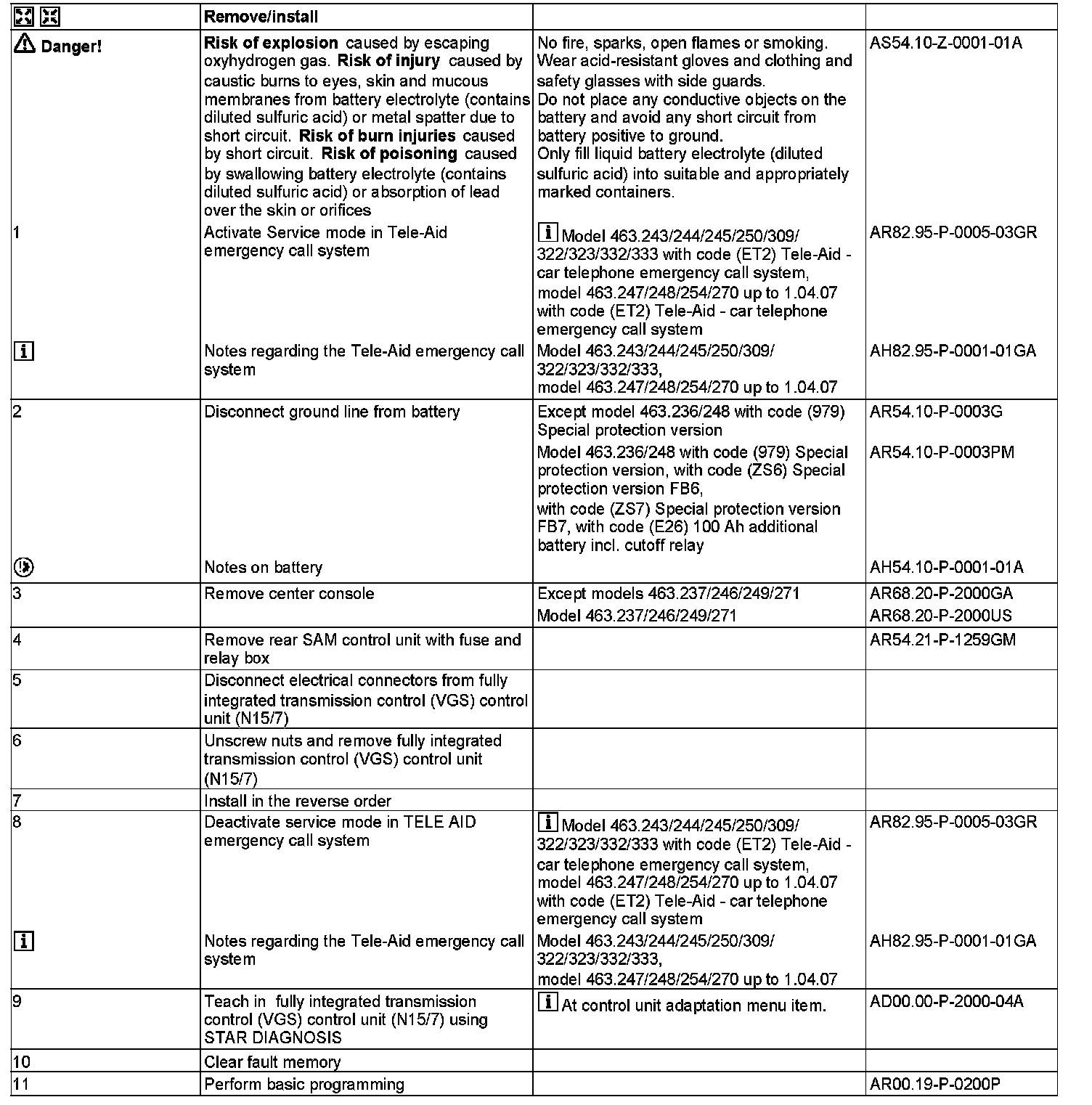

AR28.19-P-1003GM Remove/Install Transfer Case Control Unit
MODEL 463.222 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341
with TRANSFER CASE 750.654
MODEL 463.202 /236 /237 /346 with TRANSFER CASE 750.654 up to model year 2013 /facelift 2012

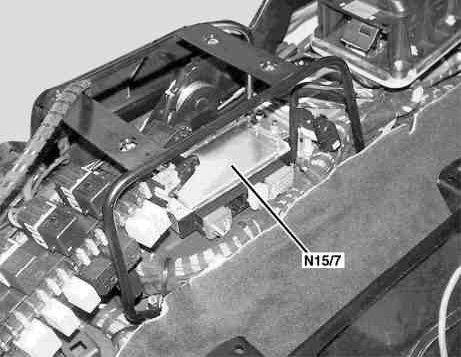

N15/7 VGS control unit
