Power Seat Control Module: Service and Repair
AR91.29-P-0002GZ Replace Seat Adjustment Control Unit With Memory - with CODE (275) Memory package (driver seat, steering column, mirrors)
- with CODE (242) Electrically adjustable front passenger seat with memory

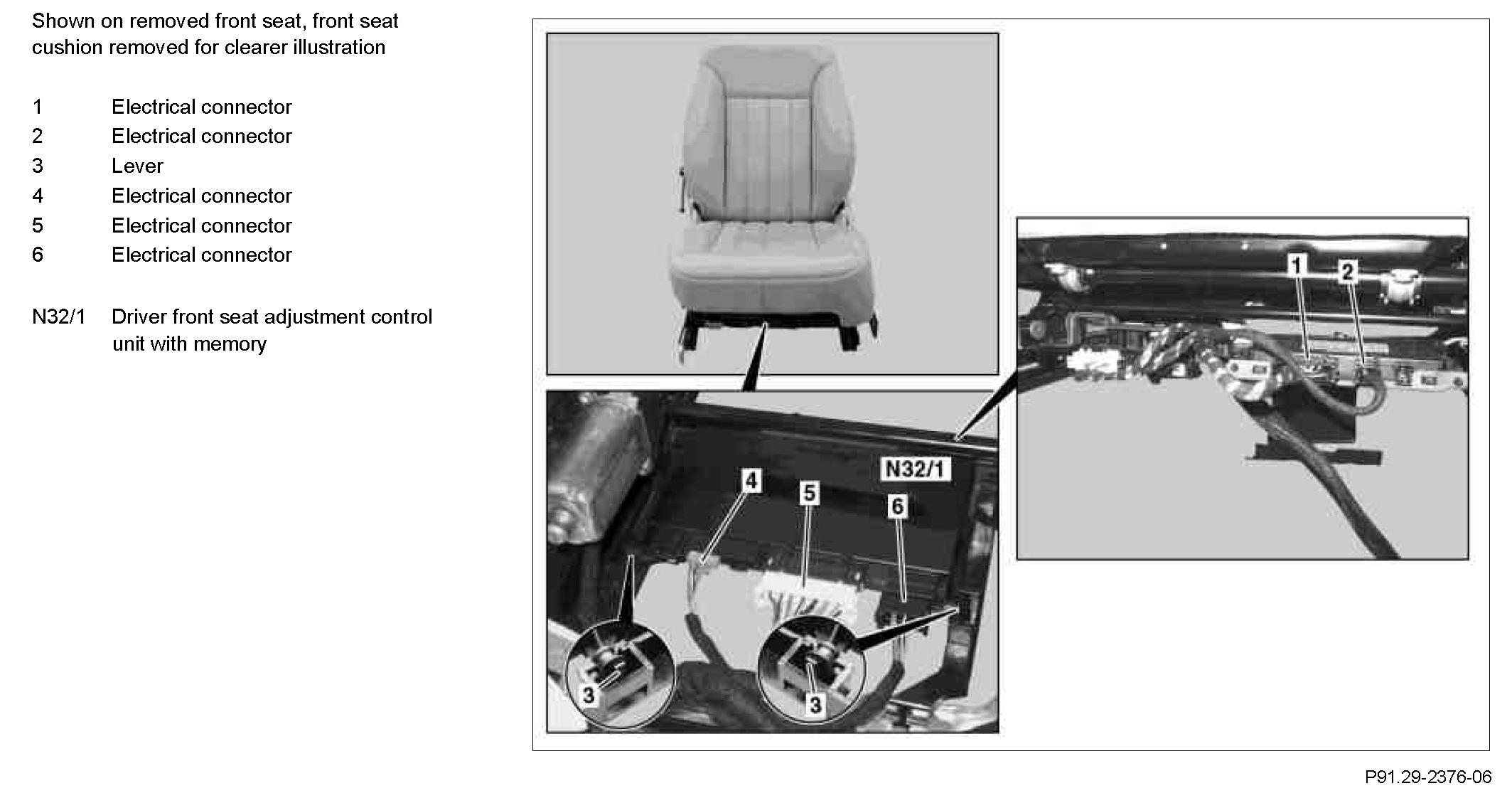

Component Identification:
Steps 1 - 5:
