AR54.25-P-2800-01TX Remove Steering Column Switch Module

AR54.25-P-2800-01TX Remove Steering Column Switch Module

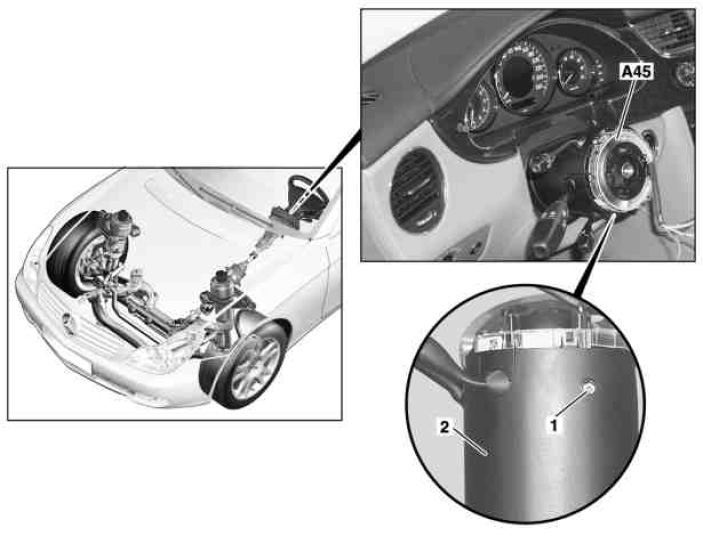

Shown on model 219

When the steering wheel is detached the fanfare horns and airbag clock spring contact (A45) must not be twisted otherwise this can be damaged.
1 Unscrew bolt (1).
Bolt (1) is secured to prevent it from falling out.
2 Disconnect steering column switch module (2) complete with fanfare horns and airbag clock spring contact (A45) from jacket tube.
