Power Trunk / Liftgate Control Module: Service and Repair



AR88.50-P-5300SX Remove/install Remote Trunk Closing Control Unit
- with CODE (881) Remote trunk closing (RTC [HDFS])

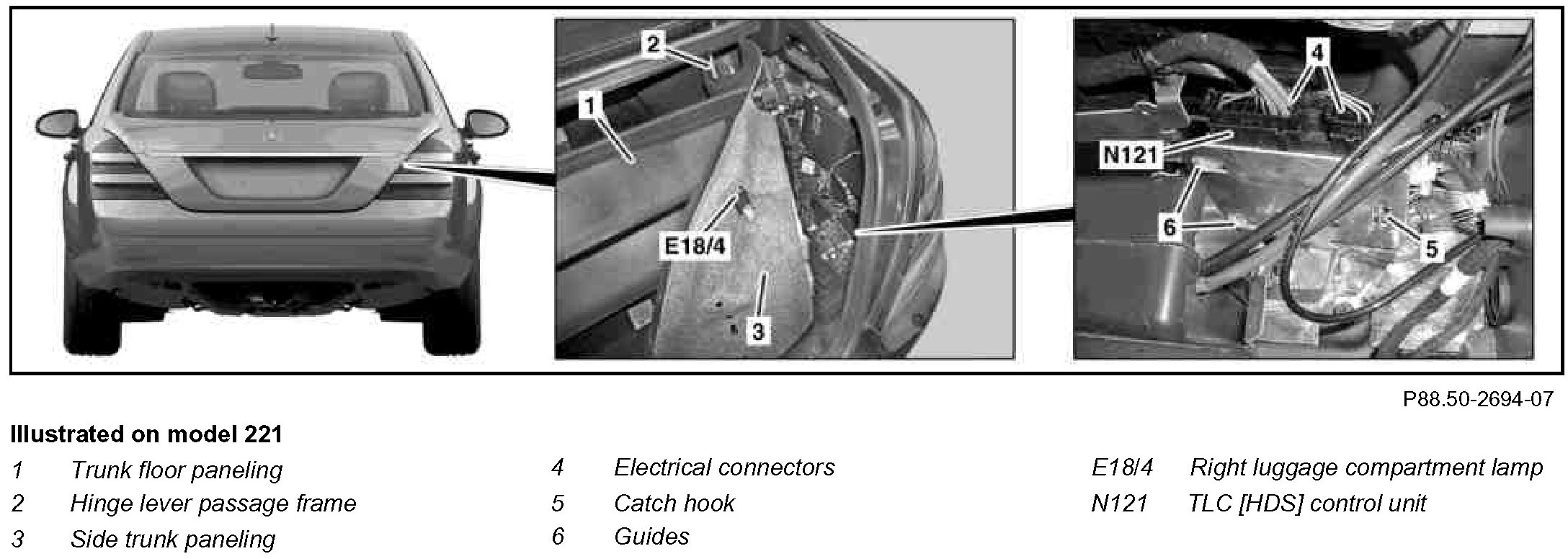

Component Identification:




Modification Notes:

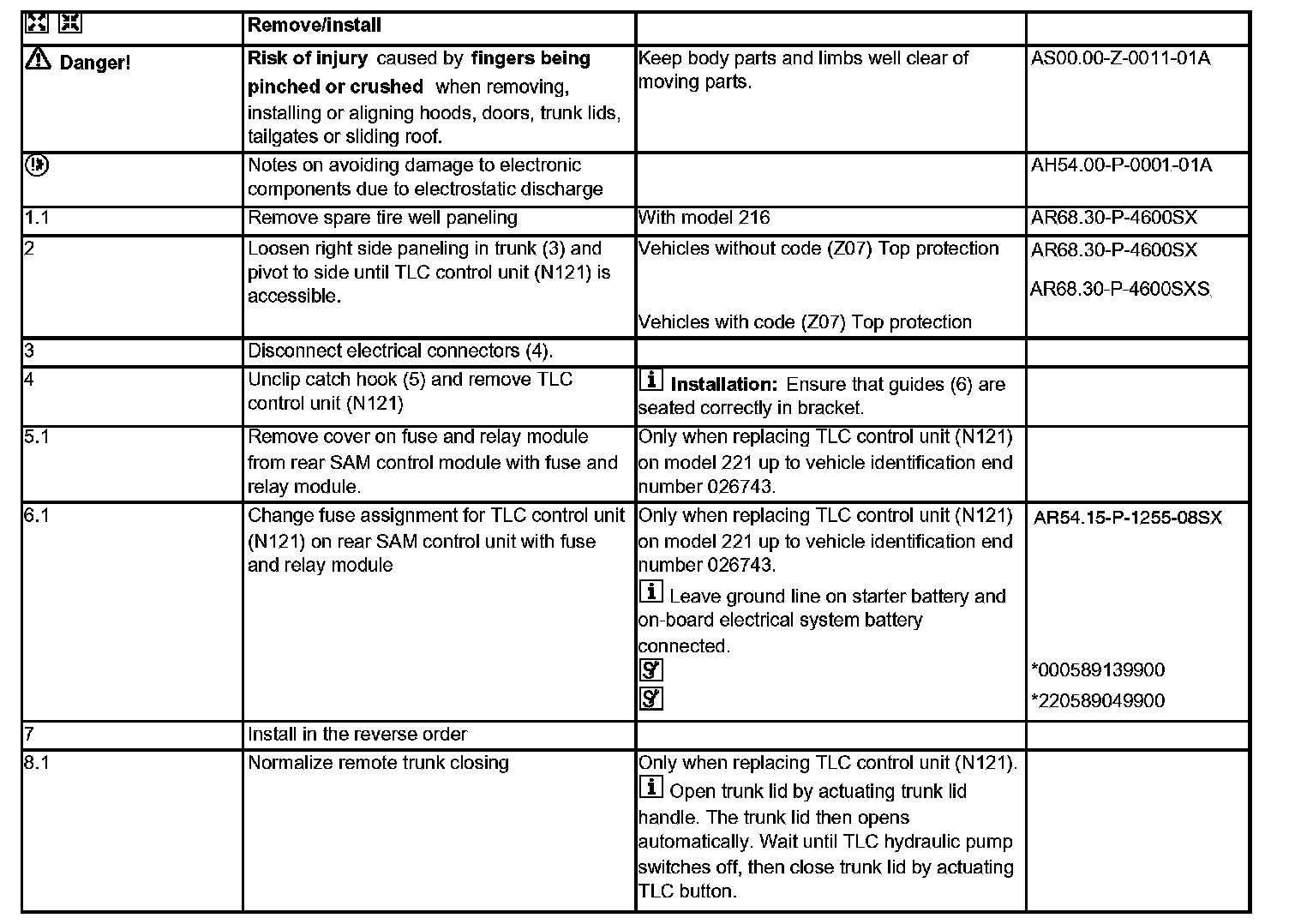

Steps 1.1-8.1:

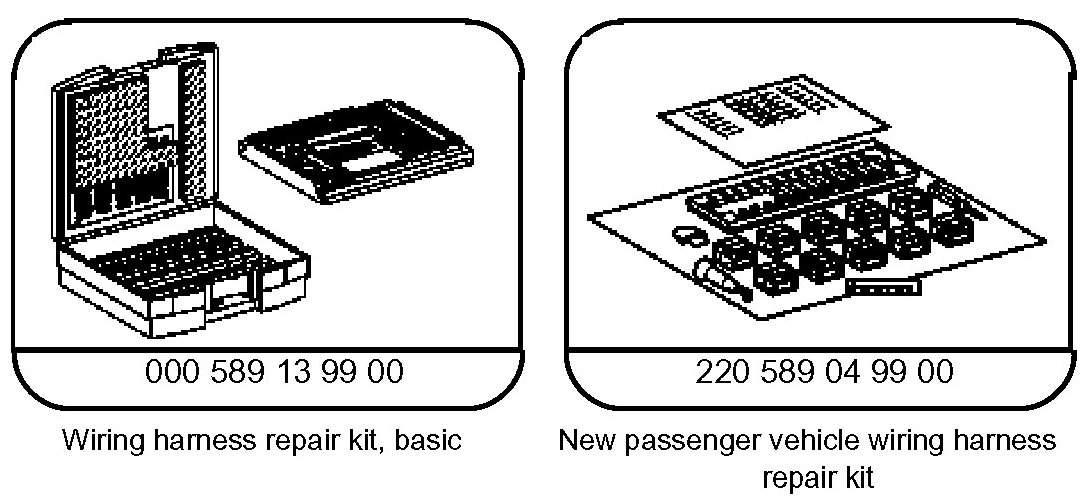

Special Tools:
