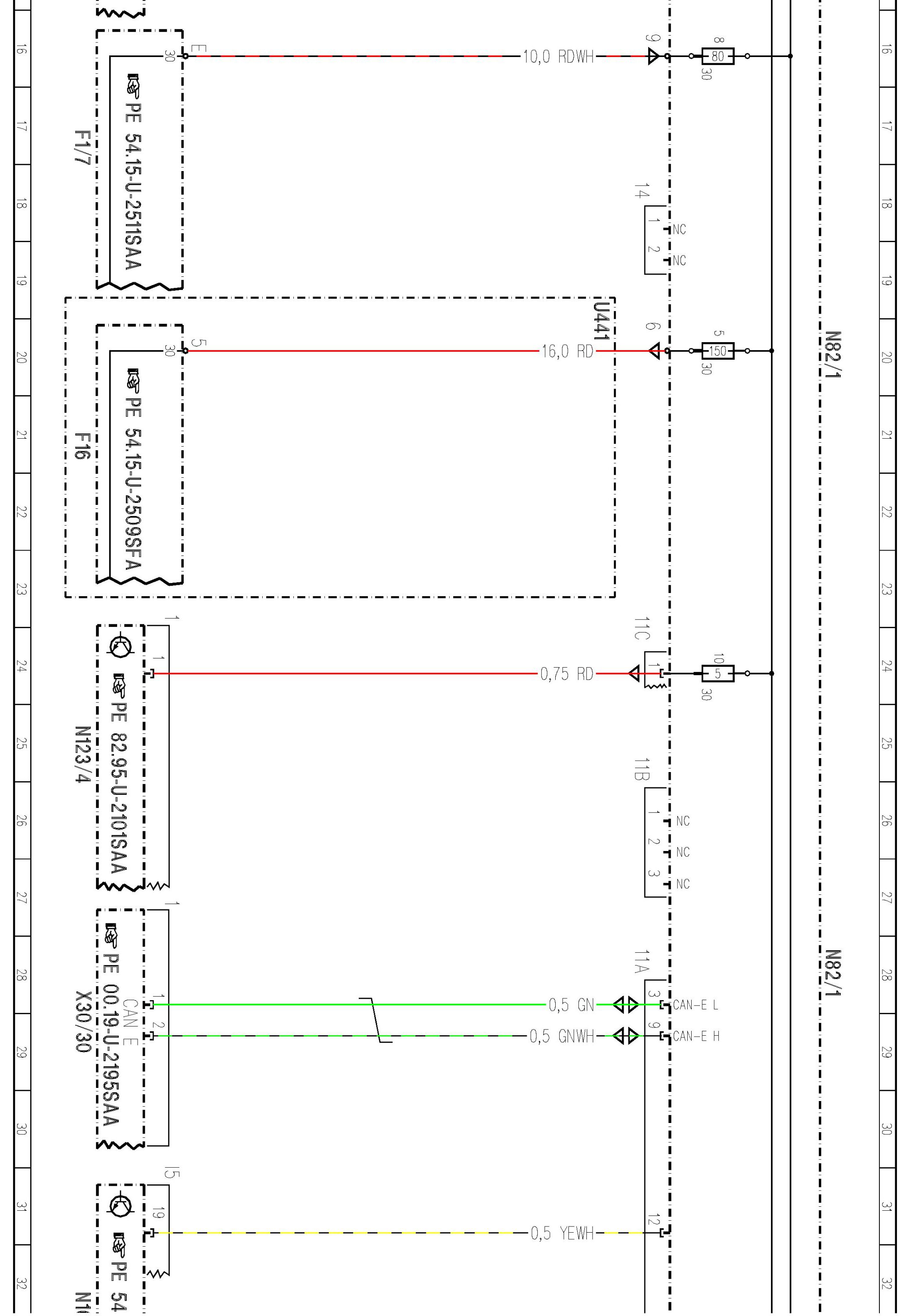

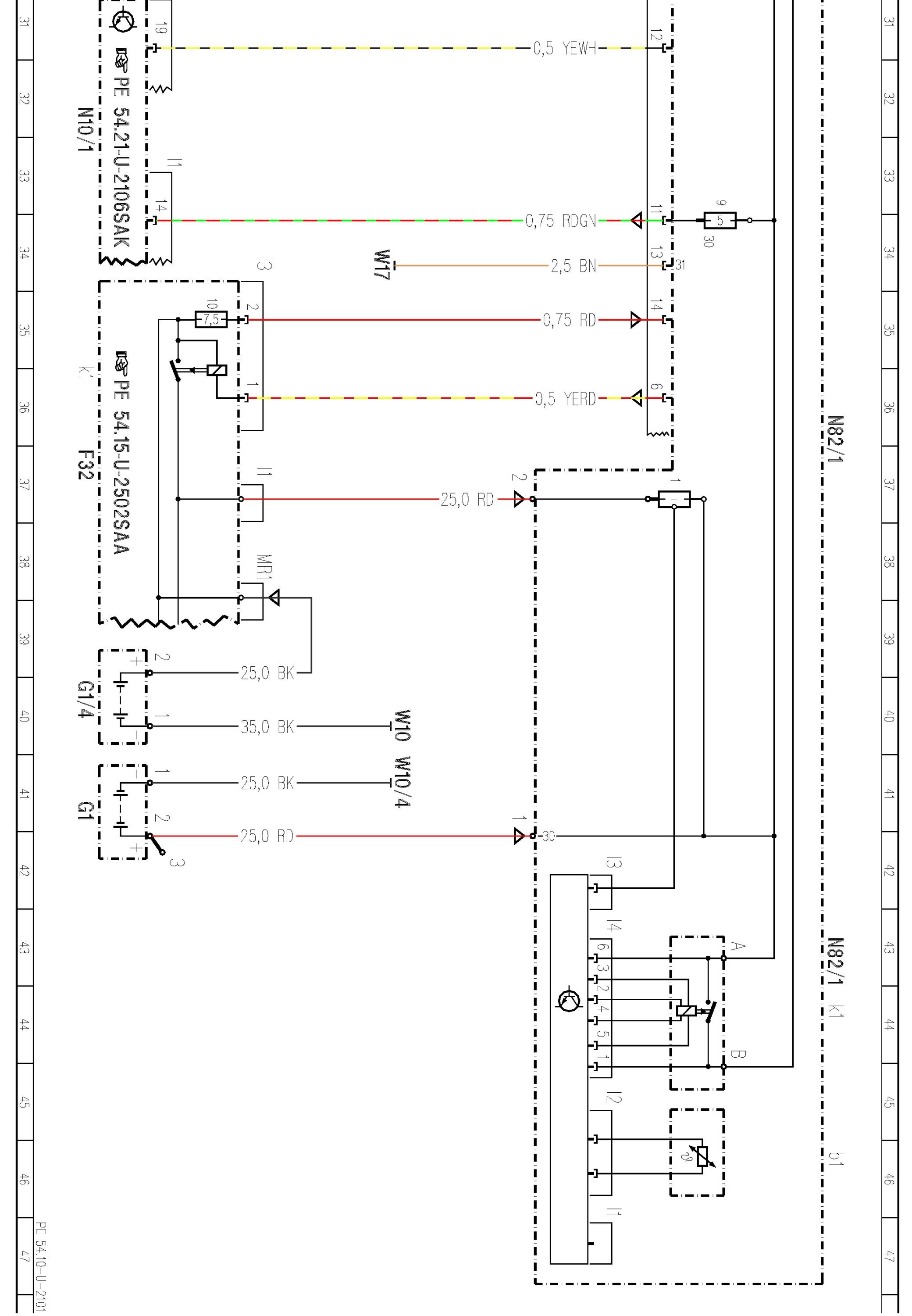

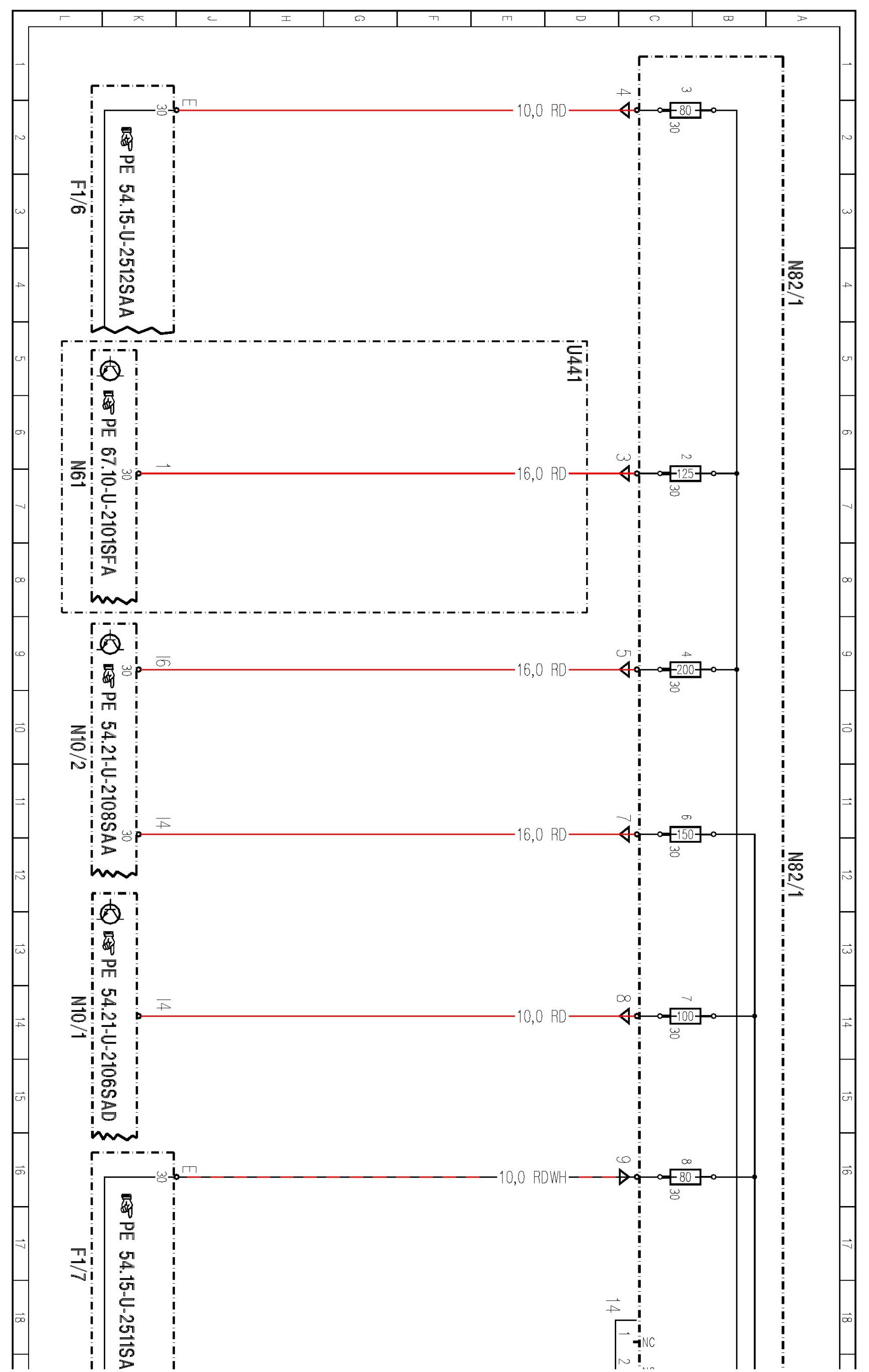

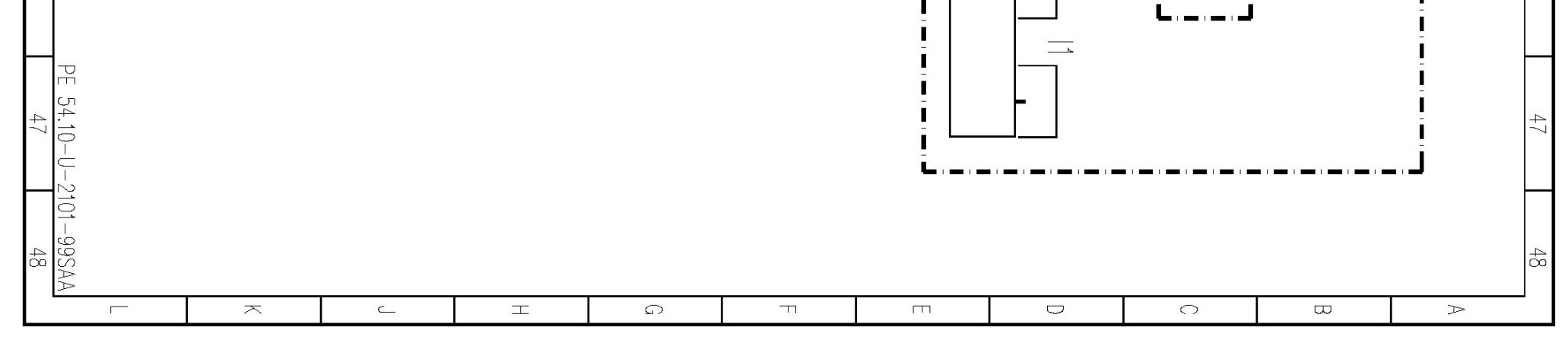

PE54.10-U-2101SAA Vehicle Electrical System Control Module



PE54.10-U-2101SAA Vehicle Electrical System Control Module

MODEL 221
- up to Model Year 2008
- Control unit N82/1



























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
