Knock Sensor: Service and Repair

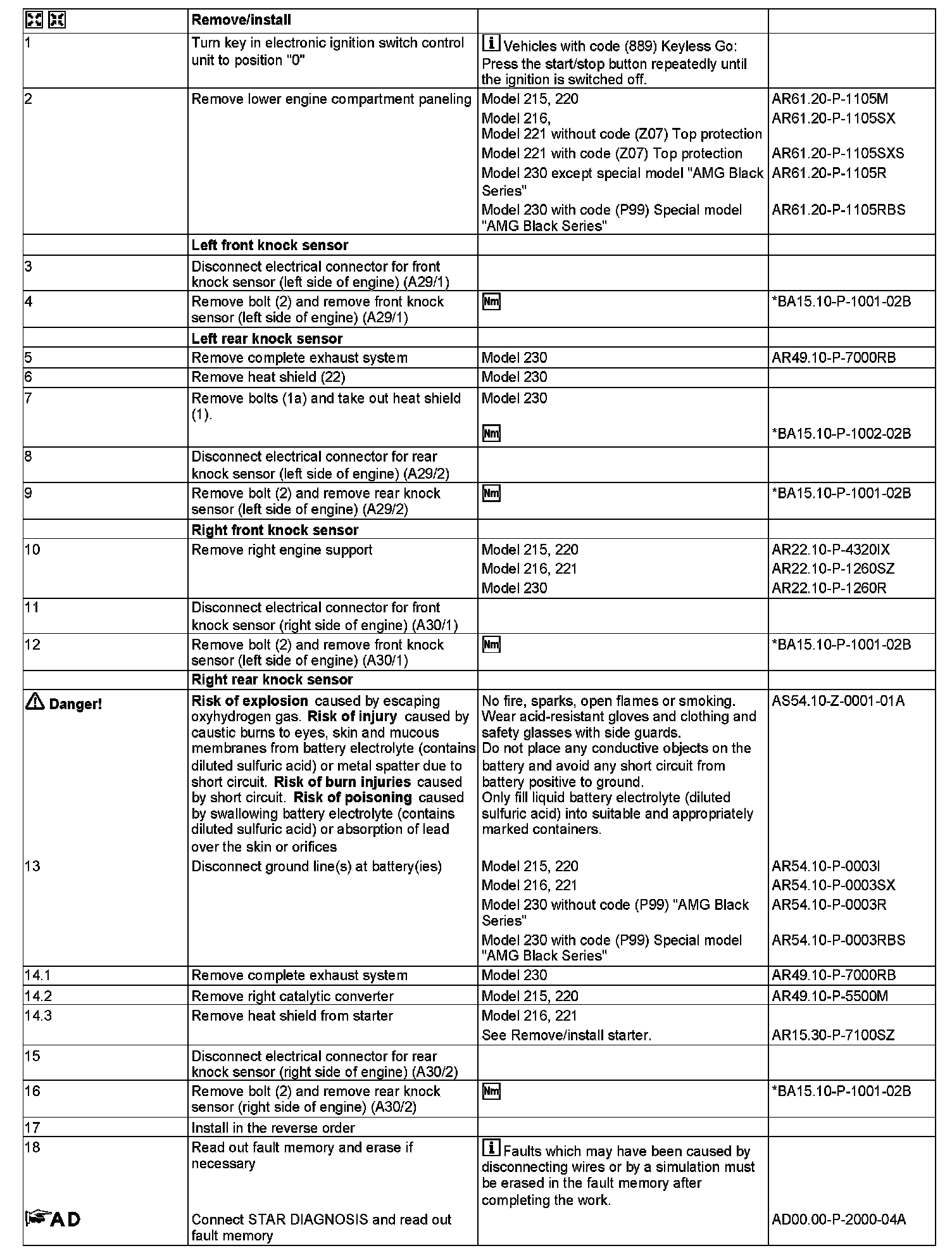

AR15.12-P-2184R Remove/Install Knock Sensors ENGINES 275 in MODELS 215, 216, 220, 221, 230

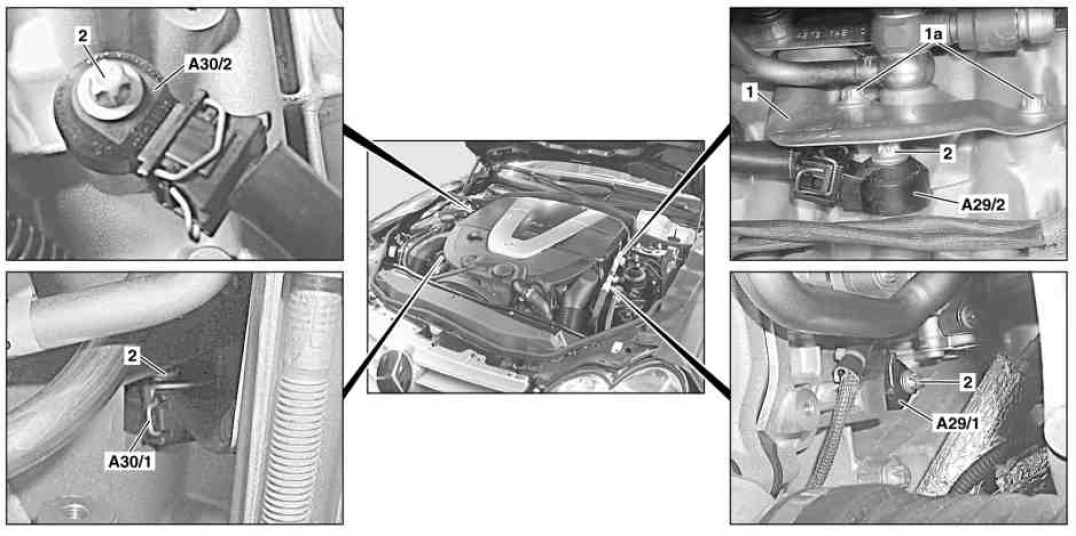

Illustrated on model 230.476 1 Heat shield
1a Bolts
2 Bolt
A29/1 Front
knock sensor (left side of engine)
A29/2 Rear
knock sensor (left side of engine)
A30/1 Front
knock sensor (right side of engine)
A30/2 Rear
knock sensor (right side of engine)
22 Heat shield
