Mercedes Benz
>>
2009
>>
CLK 350 (209.356) V6-3.5L (272.960)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Head Restraint System
>>
Locations
>>
Lower Head Restraint Limit Switch, Right
Lower Head Restraint Limit Switch, Right
Lower Head Restraint Limit Switch, Right

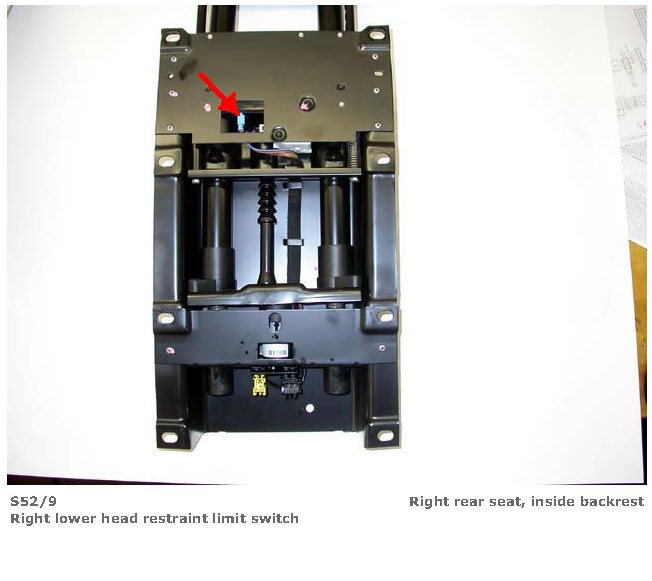

Right Lower Head Restraint Limit Switch (View 1):
Right Lower Head Restraint Limit Switch (View 2):
