AR32.25-P-1017QBS Remove/Install The Suspension Strut



AR32.25-P-1017QBS Remove/install the suspension strut
- with CODE (P98) Black Series

Component Identification:

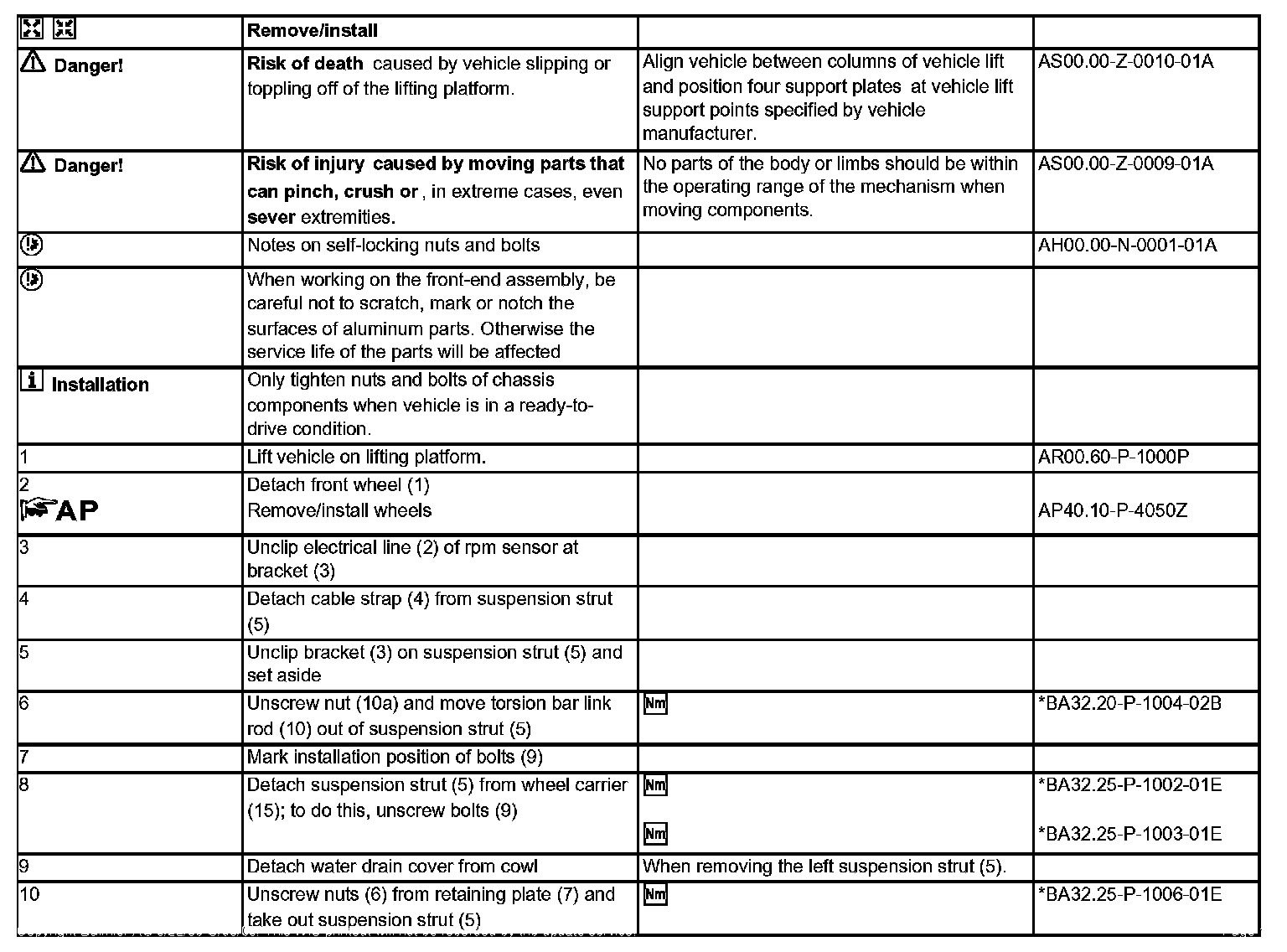

Remove/install Steps 1-10:




Remove/install Steps 11-12:

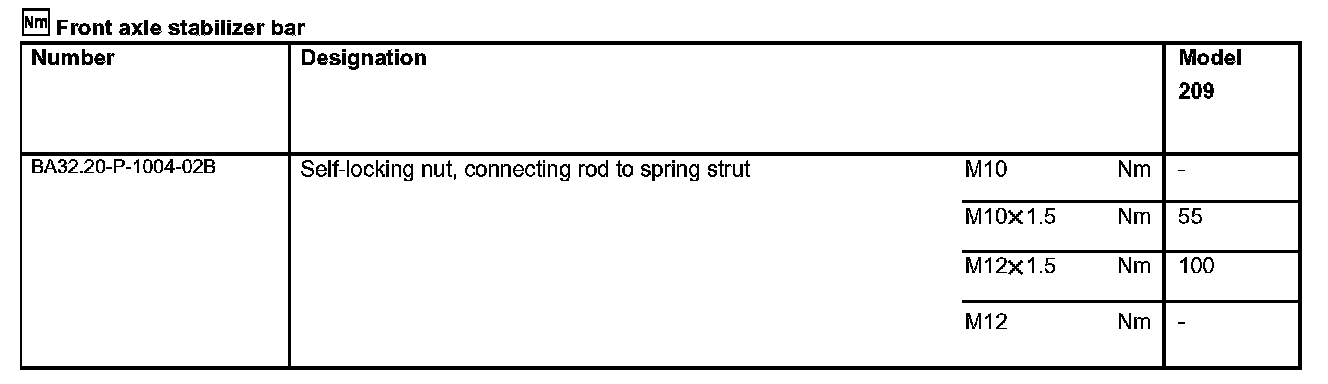

Front axle stabilizer bar:




Front axle shock absorber:
