PE54.65-P-2051MAB Electrical Function Schematic, Backup Camera

Electrical Function Schematic, Backup Camera PE54.65-P-2051MAB
- with CODE (218) Backup camera
- with CODE (498) Japan version
- refinement package
- as of model year 2009

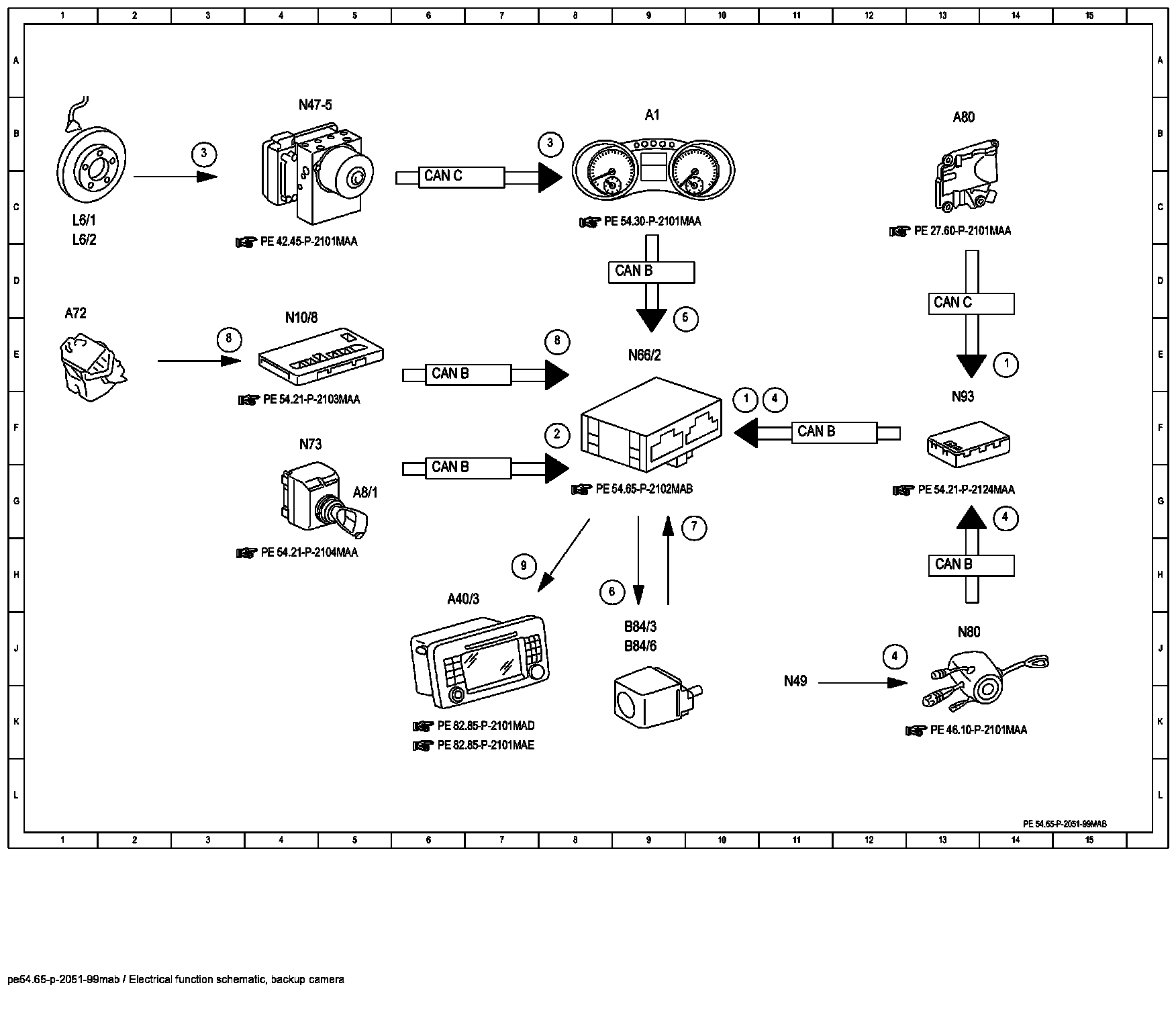

Function Diagram:

Component Description/Coordinates, A1 To 9:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
