AZ82.85-P-0006-05GZA Retrofit Medianavigation Center Connecting Cable

AZ82.85-P-0006-05GZA Retrofit MediaNavigation Center Connecting Cable
- MODEL 164.1 /8
- with CODE (830) China version
- with CODE (518) Media interface






1 Unclip Media Interface connecting cable from cover (18.1) of glove box (18) and remove.

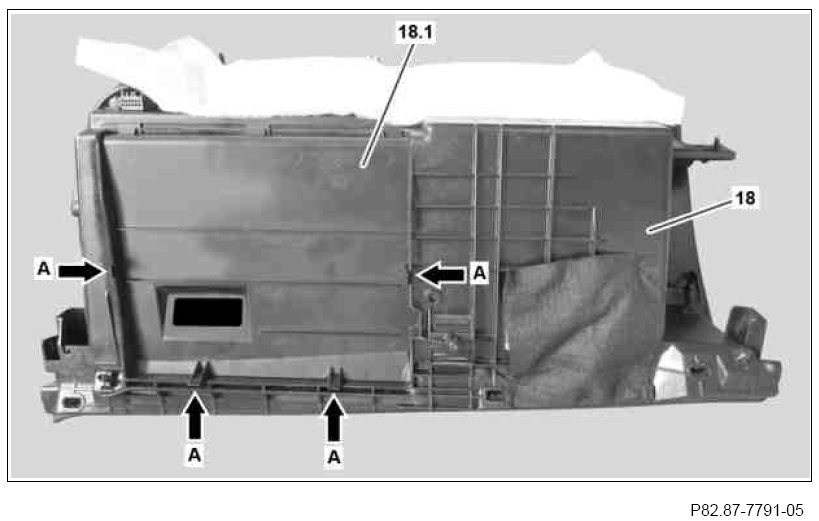

2 Release cover (18.1) at catches (arrows A) and remove from glove box (18).






3 Disconnect coupling (24.1) of media interface wiring harness (24) from media interface control unit (N125/1).
The media interface wiring harness (24) is a discontinued part.






4 Clip multimedia connection (8.1) of MediaNavigation Center connecting cable (8), as shown, into the cover (18.1).






5 Place cover (18.1) with MediaNavigation Center connecting cable (8) into front passenger footwell.
6 Route MediaNavigation Center connecting cable (8), as shown, from installation location of glove box into MediaNavigation Center recess and fix in place using a cable tie.
