AR91.12-P-1000GYA Remove/Install Rear Seat
AR91.12-P-1000GYA Remove/Install Rear Seat
AR91.12-P-1000GYA Remove/Install Rear Seat
- 60% rear seat
Component Identification:

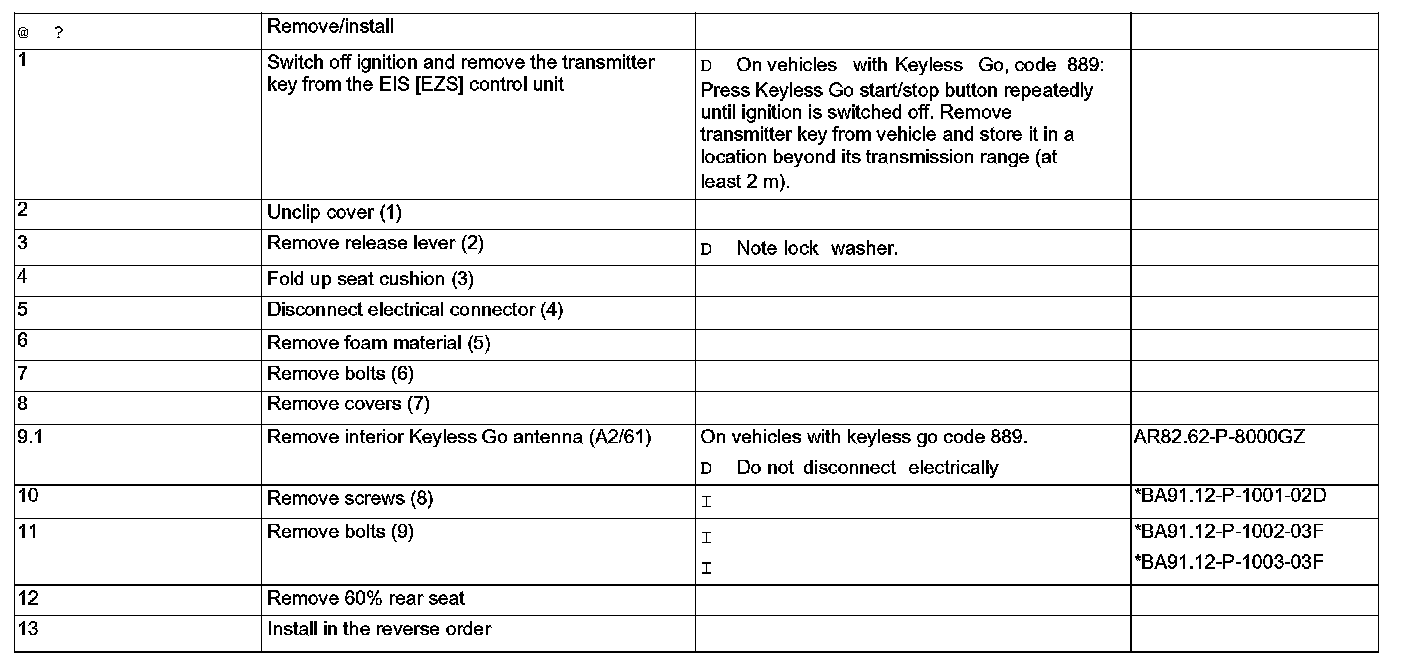

Seats 1 - 13:
Rear Seat Backrest:
Rear Seats:
