Body - Underride Guard Replacement Precautions

Date December 14, 2011

Order No: T-B-8820/88

Group: 88

SUBJECT:
MY-All, Models 164.1 with Codes P38, P61 Grand Edition special model, P94 Appearance package, P96 Exterior sports package, U89 Off-Road appearance package, and 900 Chrome package; Model 164.8 with Code U89 Off-Road appearance package and Code 900 Chrome package Mount Underride Guard to Bumper

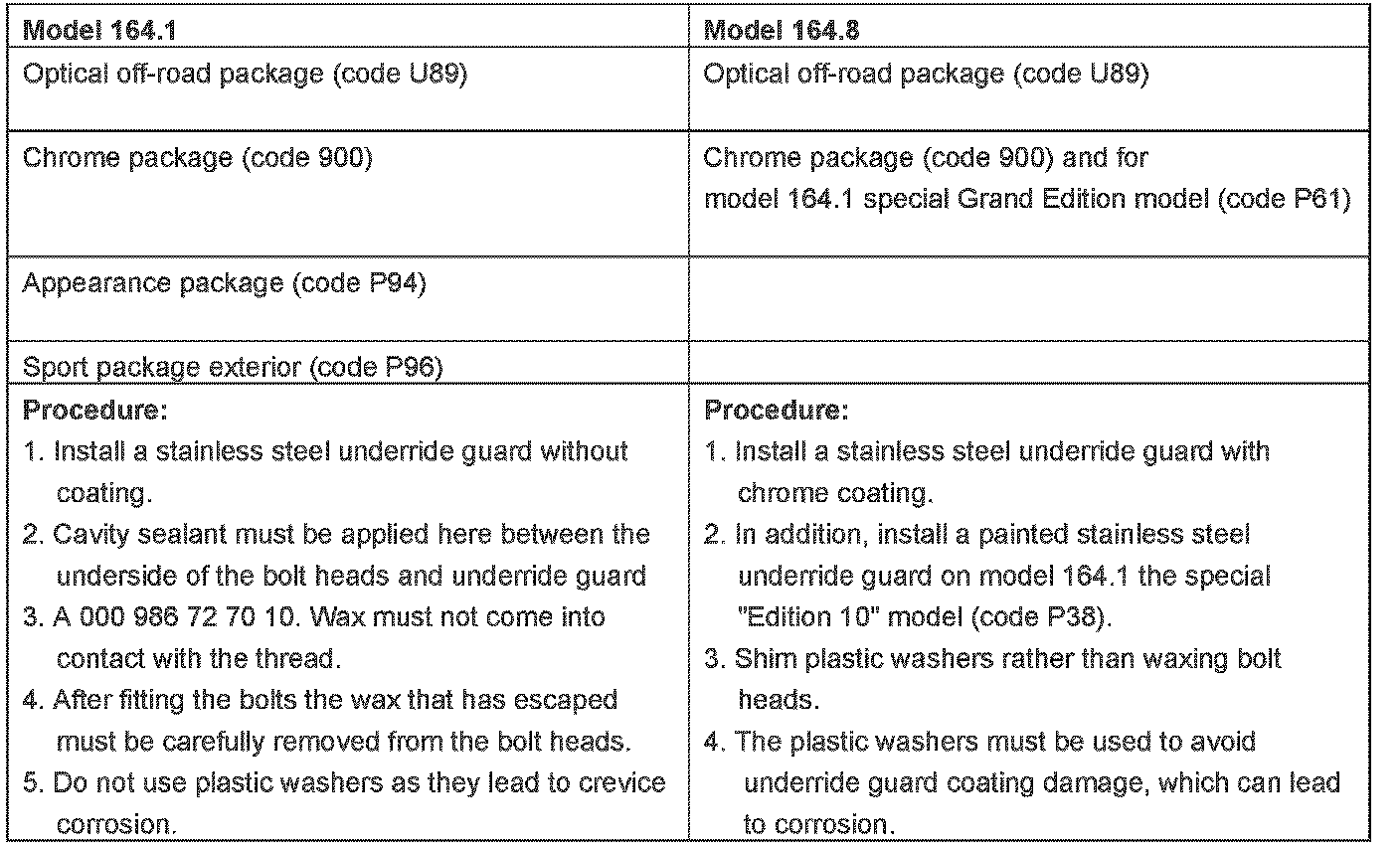

Observe the following when replacing the visual simulated underride guard on the front or rear bumper





Follow WIS document BR00.45-Z-1011-05A on Cavity Preservation for below repair material.





Parts Information
