PE82.20-U-2054TA Electrical Function Schematic For Symbol, Switch and Controls Illumination

PE82.20-U-2054TA Electrical Function Schematic For Symbol, Switch and Controls Illumination

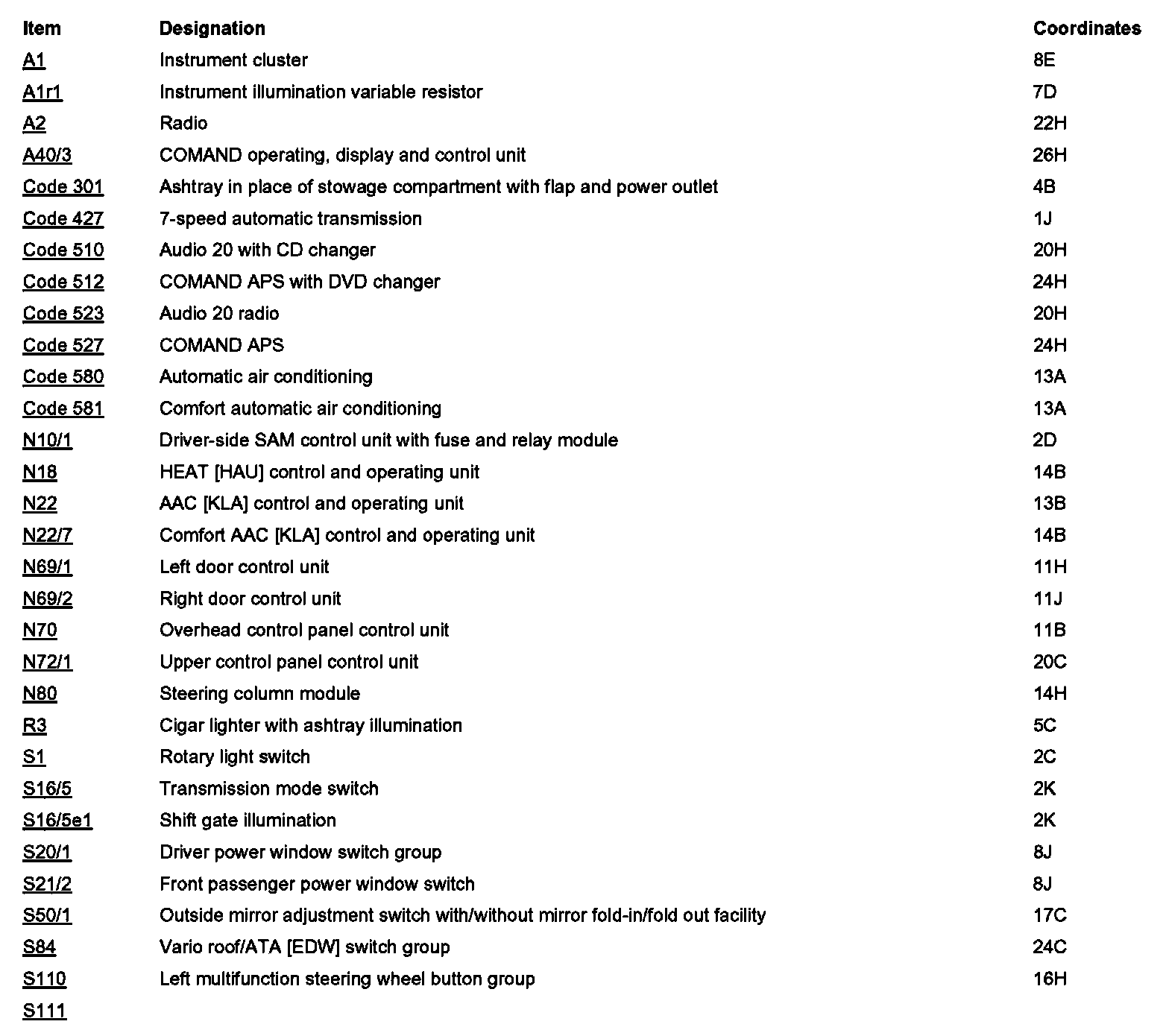

Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
