PE82.70-P-2059TA Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call And Conference Call

Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call And Conference Call PE82.70-P-2059TA
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- Basic telephony
- refinement package
- as of model year 2009

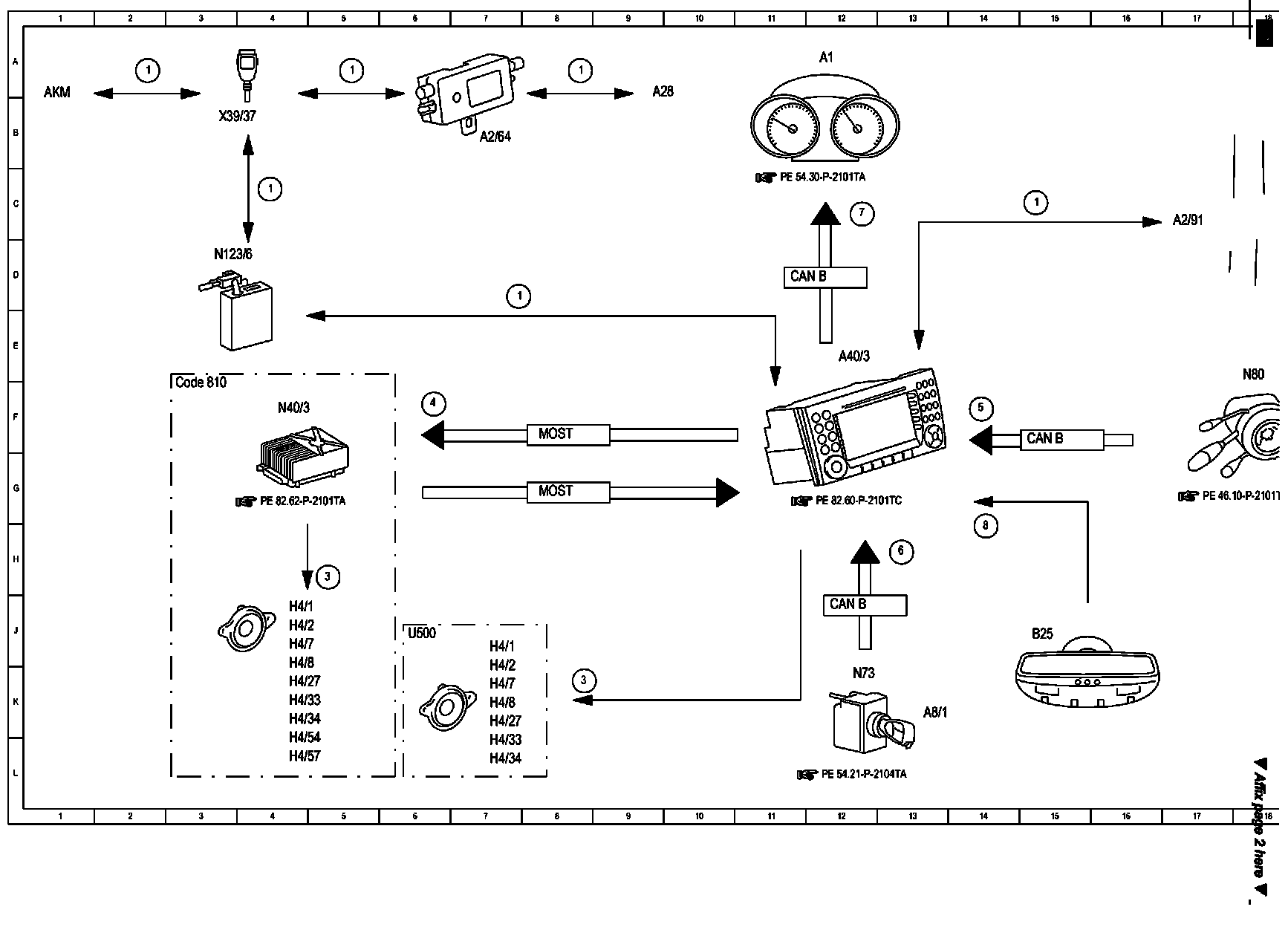

Function Diagram (Part 1):

Function Diagram (Part 2):

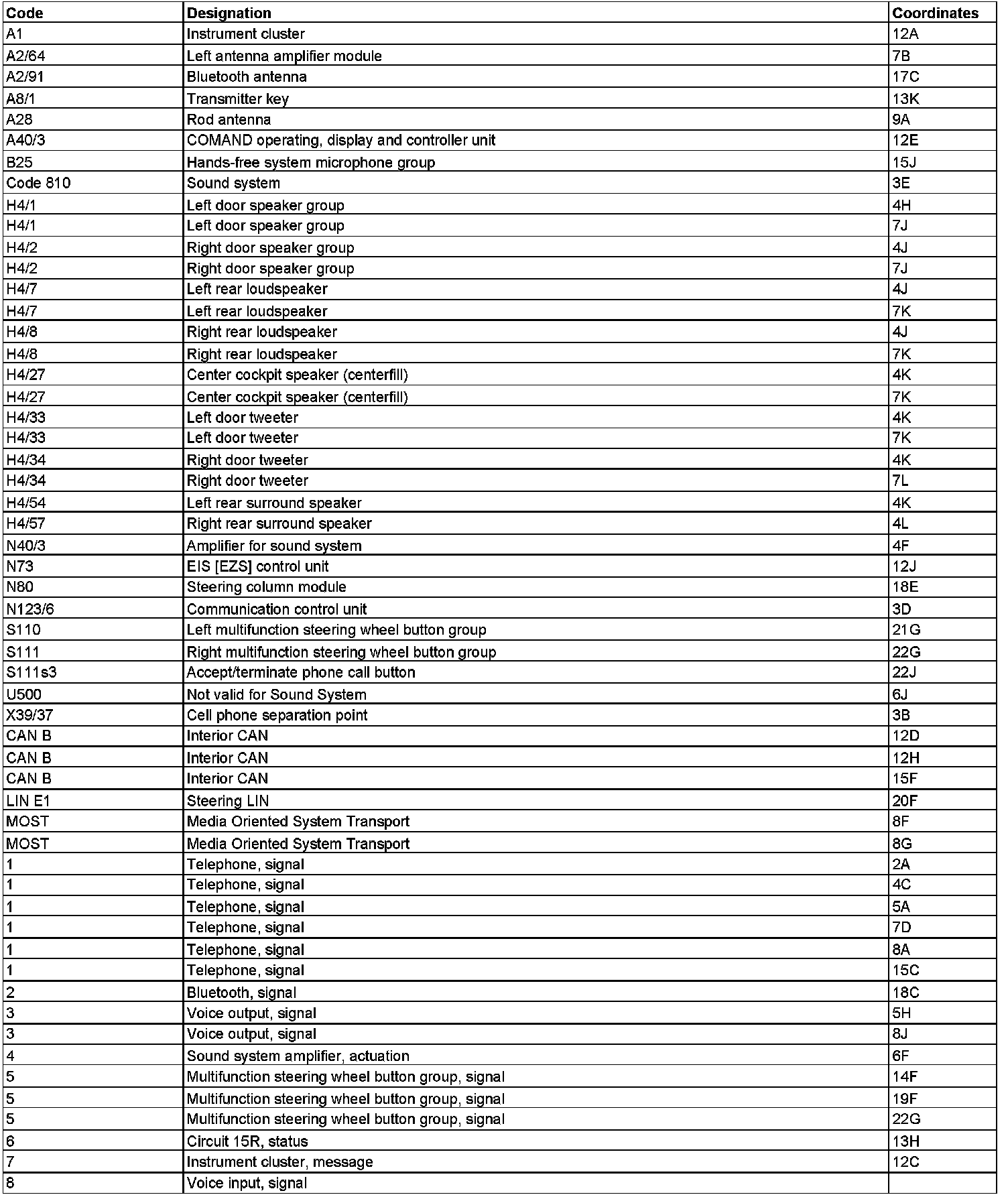

Component Description/Coordinates, A1 To 8:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
