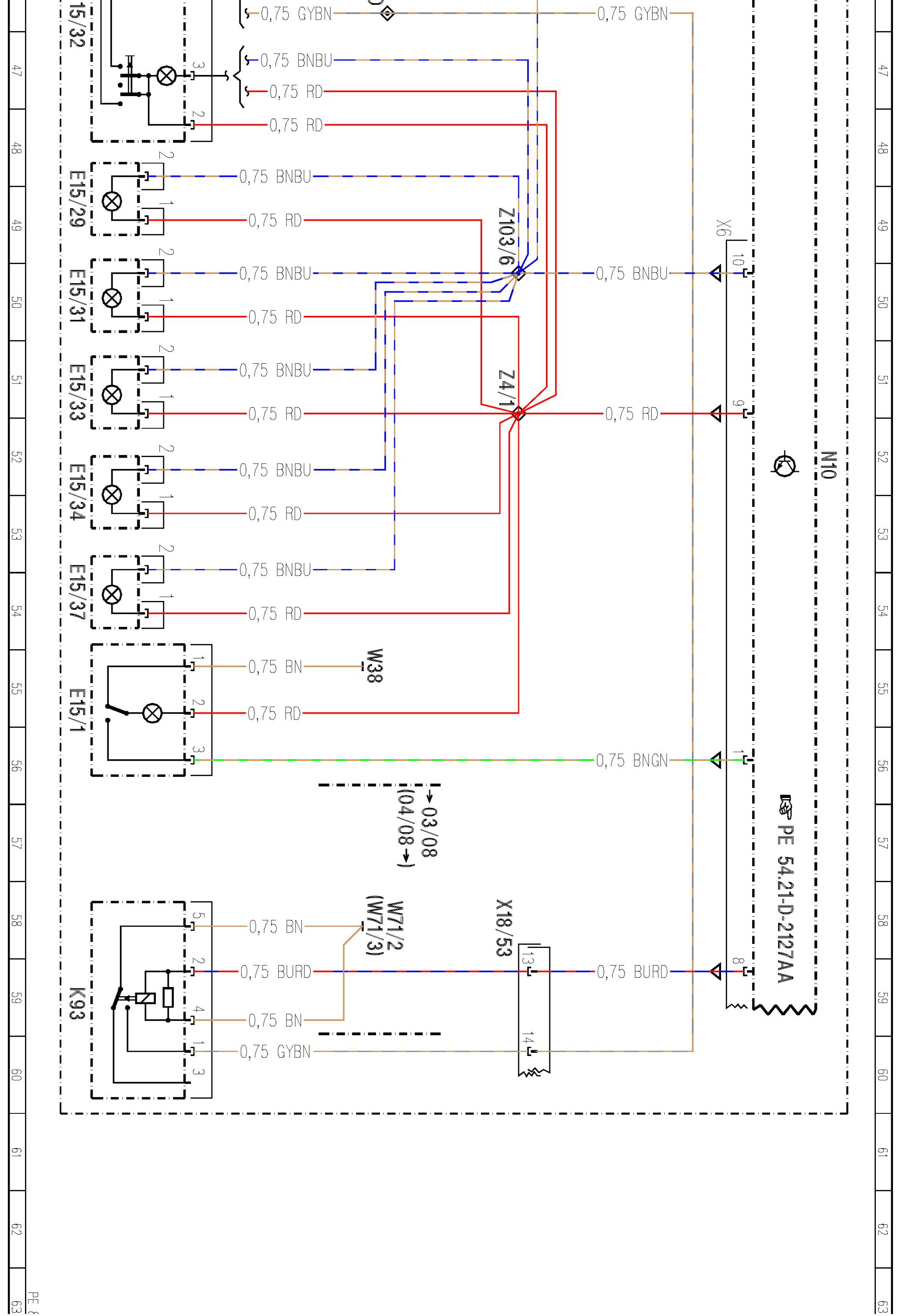

PE82.20-D-2000AA Interior Illumination
PE82.20-D-2000AA Interior Illumination
PE82.20-D-2000AA Interior Illumination
906 82 Electrical Systems - Body
Model 906.1 /2 /6 /7
