Home
>>
Mercedes Benz
>>
2012
>>
Sprinter 2500 Panel (906.633) V6-3.0L DSL Turbo (642.898)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

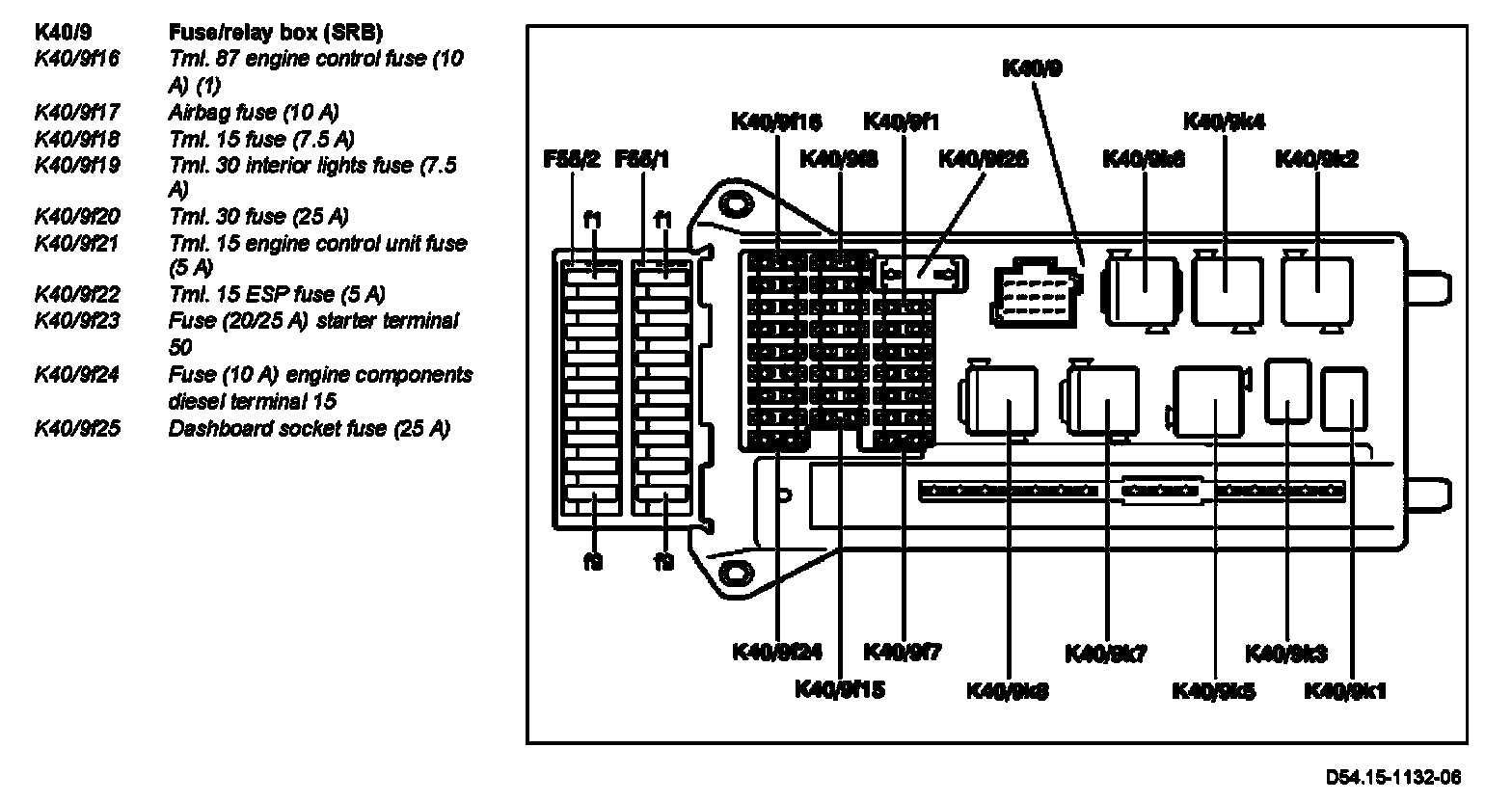

Fuse and Relay Box Assignment
Fuse and Relay Box Assignment
Fuse and relay box assignment
