Vibration Damper: Service and Repair

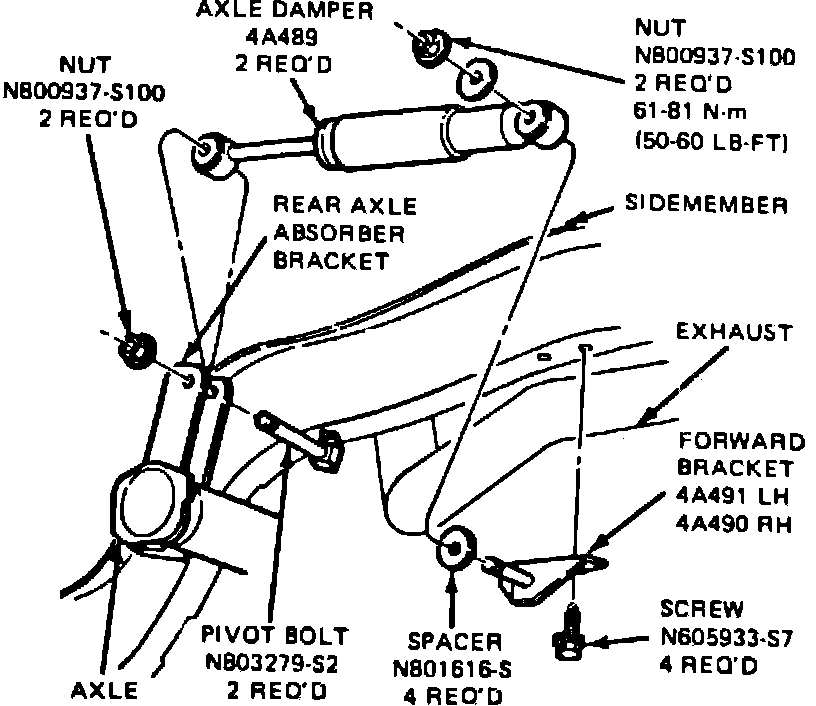

Fig. 4 Axle damper assembly. Mustang GT, Capri RS, GS & Mustang SVO:
1.
Raise vehicle and support rear axle.
2.
Remove rear wheel, then the axle damper rear attaching nut and pivot bolt,
Fig. 4. 3.
Remove axle damper forward attaching nut, the axle damper and spacer.
4.
Reverse procedure to install. Torque attaching bolts to 50---60 ft. lbs.
