Front Strut/Shock - Spacers
83ford20 Article No. 83-6-8SUSPENSION - FRONT - SHOCK STRUT SERVICE KIT SPACERS
FORD 1978-82 FAIRMONT; 1979-82 MUSTANG
LINCOLN-MERCURY 1978-82 ZEPHYR; 1979-82 CAPRI

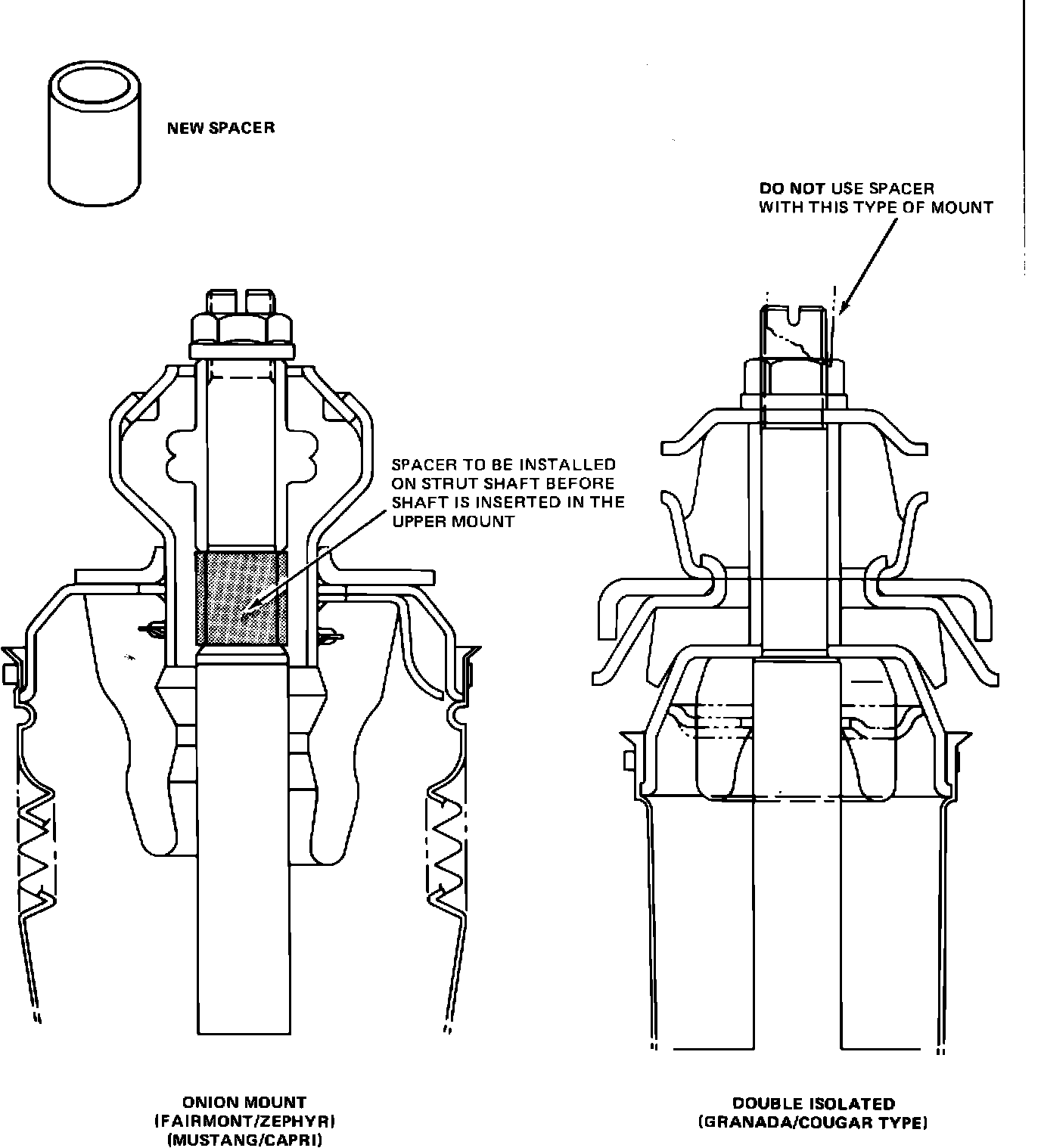

FIGURE 12:
The following front shock strut kits contain a spacer and instruction sheet which are to be used with an "onion" upper strut mount (Figure 12).
Kit Number Vehicle Usage
E3BZ-18124-A 1978-82 Fairmont/Zephyr
E3ZZ-18124-A 1979-82 Mustang/Capri except
H.D. and TRX Suspension
E3ZZ-18124-B 1979-82 Mustang/Capri H.D.
and TRX Suspension
When installing these shock struts, if insufficient shaft threads exist for attaching nut engagement, cut 6 mm
off the spacer. Spacer can be cut off using a hacksaw. Care must be taken to cut off the spacer squarely.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
