Piston Fit - Specification Update

83ford8

Article No. 83-17-8-S

PISTON FIT SPECIFICATION (2.3L OHC) EFI TURBO - 1983 CAR SHOP MANUAL SUPPLEMENT D1


FORD 1983 MUSTANG, THUNDERBIRD

LINCOLN-MERCURY 1983 CAPRI, COUGAR

This article is provided to supply the latest updated specification information for servicing pistons on 1983 vehicles equipped with the 2.3L (OHC) EFI Turbo engine.

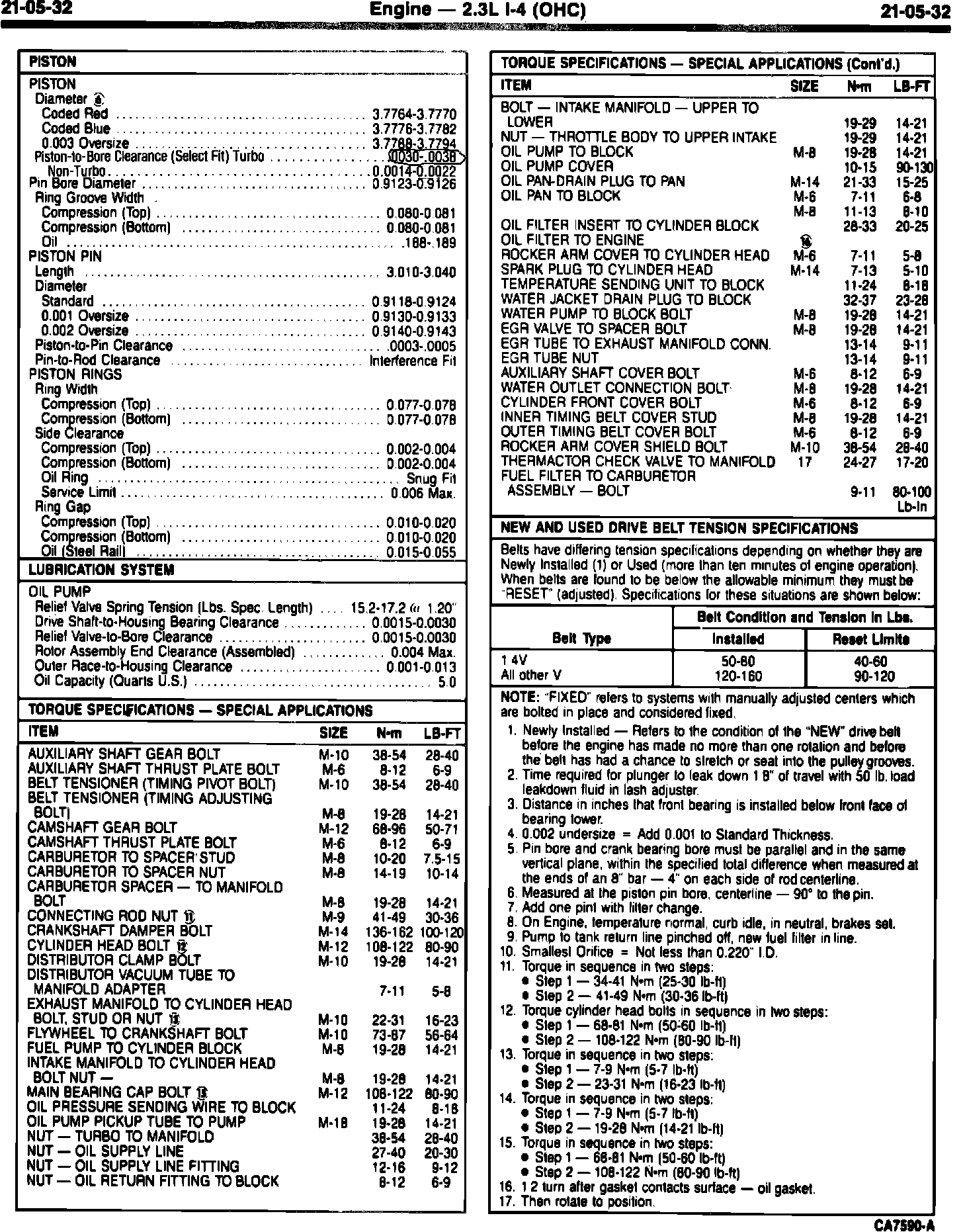

The following page is intended for insertion into the existing 1983 Shop Manual Supplement D1. The convenient tear-out feature of the TSB allows easy removal of each page.
OTHER APPLICABLE ARTICLES: 83-17-8
WARRANTY STATUS: "INFORMATION ONLY"
