Diagnostic Manual Revision

84ford20

Article No. 84-2-14


SHOP MANUAL REVISION - 1983 DIAGNOSTIC MANUAL


FORD 1984 MUSTANG, LTD, T-BIRD, CROWN VICTORIA

LINCOLN-MERCURY 1984 CAPRI, MARQUIS, COUGAR, GRAND MARQUIS, TOWN CAR, CONTINENTAL, MARK VII

CALIBRATIONS: All with 5.0L EEC IV

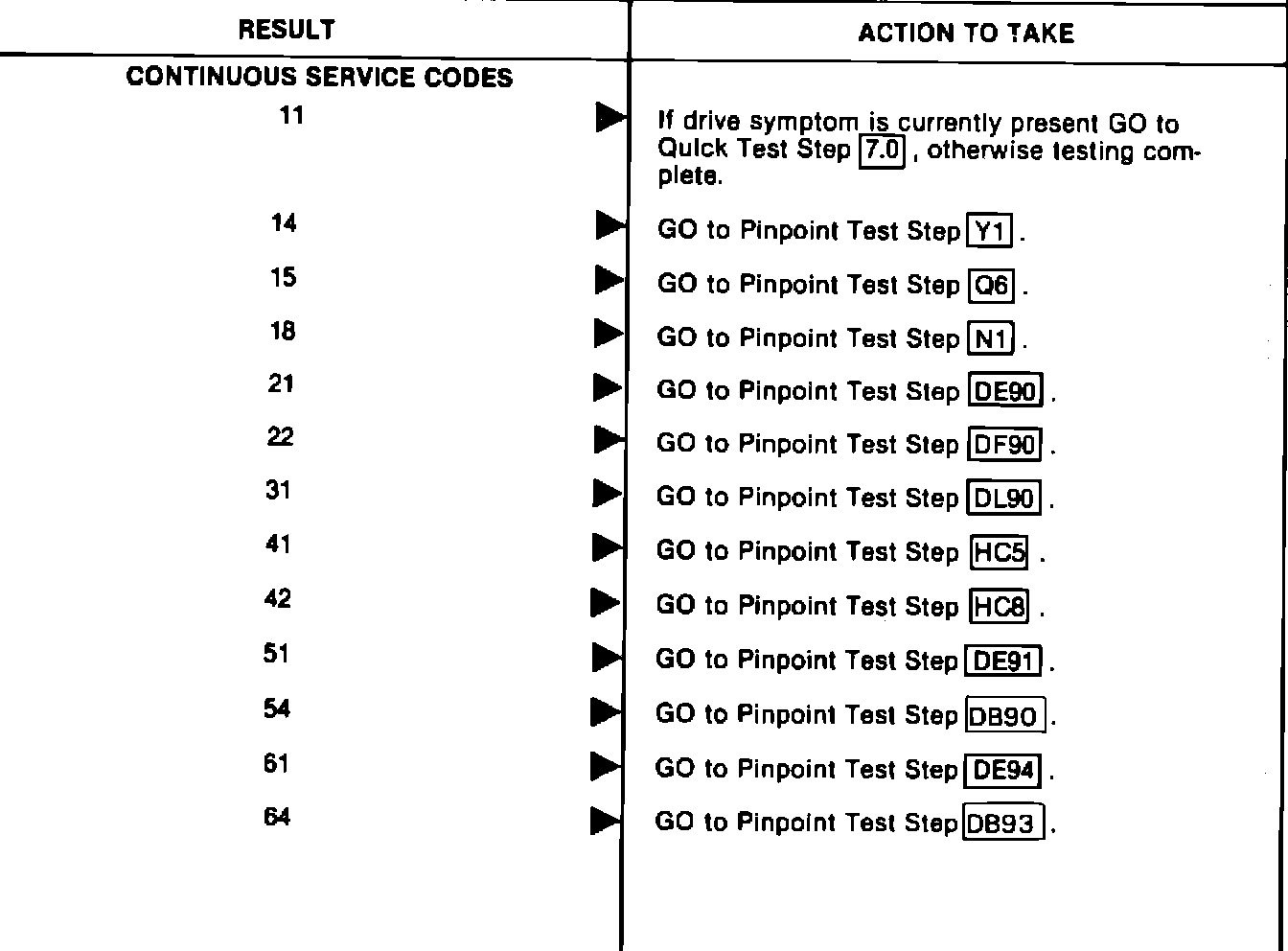

"Action to take" for service codes 54 and 64 changed to pinpoint test step DB90 and DB93, Page 20-16 Emissions Diagnosis - Engine/Electronics, Volume H 1984 Car/Truck Shop Manual. The following page should be removed from TSB and securely placed in Shop Manual.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"

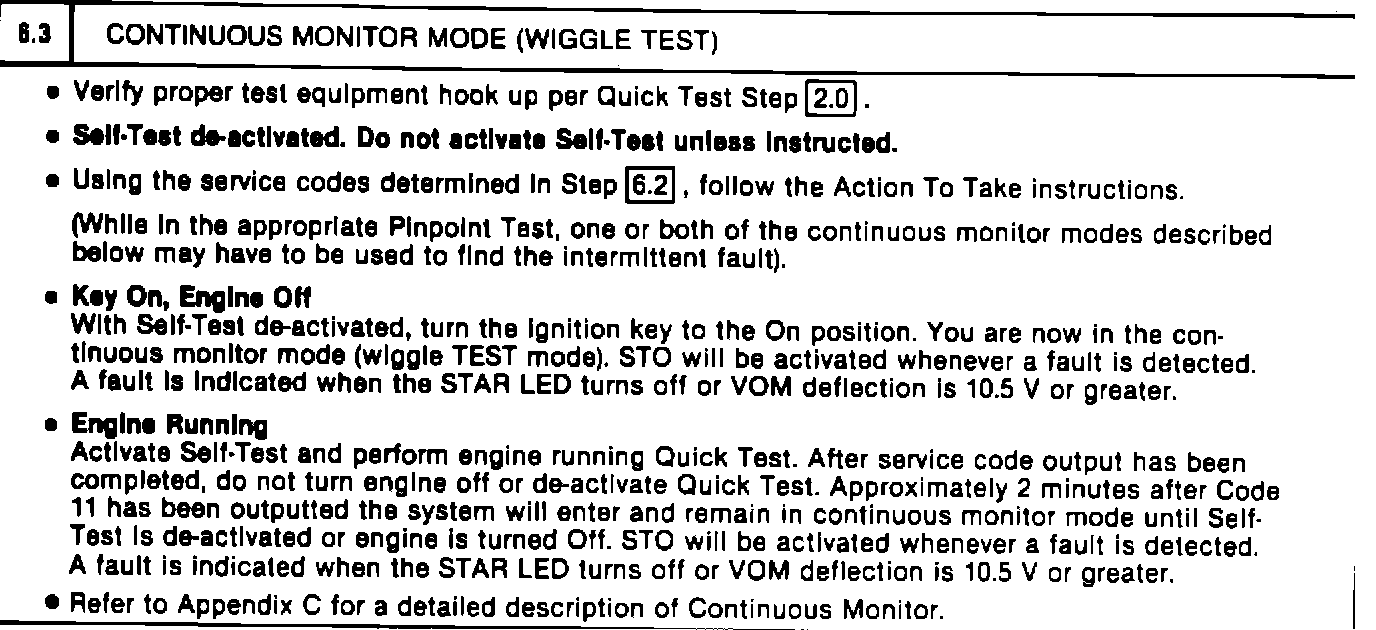

Quick Test 5.0L CFI
