Heated Backlite - Grid Malfunction

84ford8

Article No. 84-18-3

CONCERN - LIFTGATE GARNISH MOULDING CONTACTS HEATED BACKLITE GRID

LINCOLN-MERCURY 1983-84 CAPRI

The left hand liftgate garnish moulding can touch the fourth from bottom heated backlite grid, causing a grid malfunction.

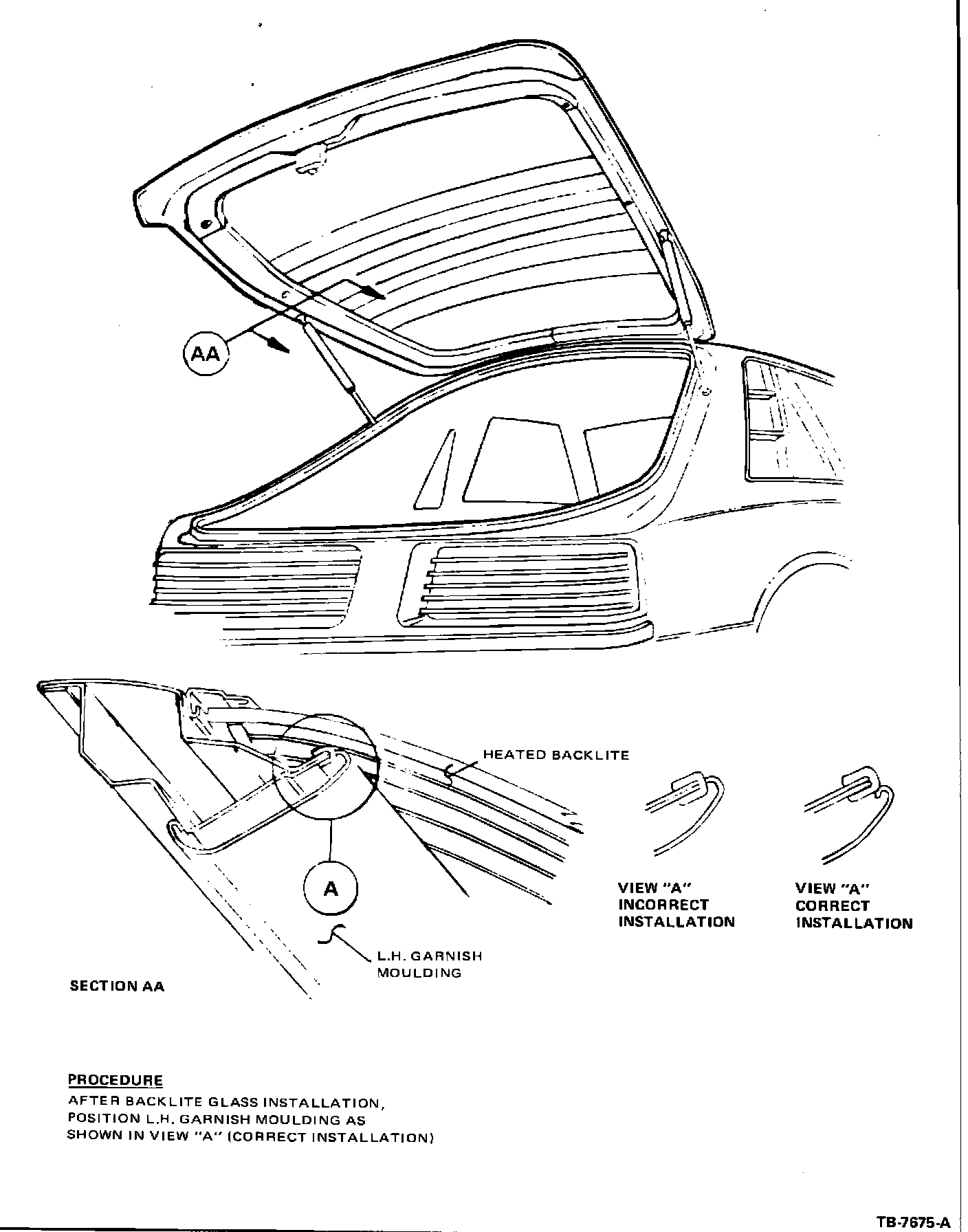

FIGURE 3:

After replacement of the heated backlite glass, install the left hand garnish moulding as shown in Figure 3.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
