Speedometer Gear - Application Charts


85ford21

Article No.
85-21-4

10/24/85


SPEEDOMETER GEAR AND APPLICATION CHART

FORD 1986 ALL

LINCOLN-MERCURY 1986 ALL

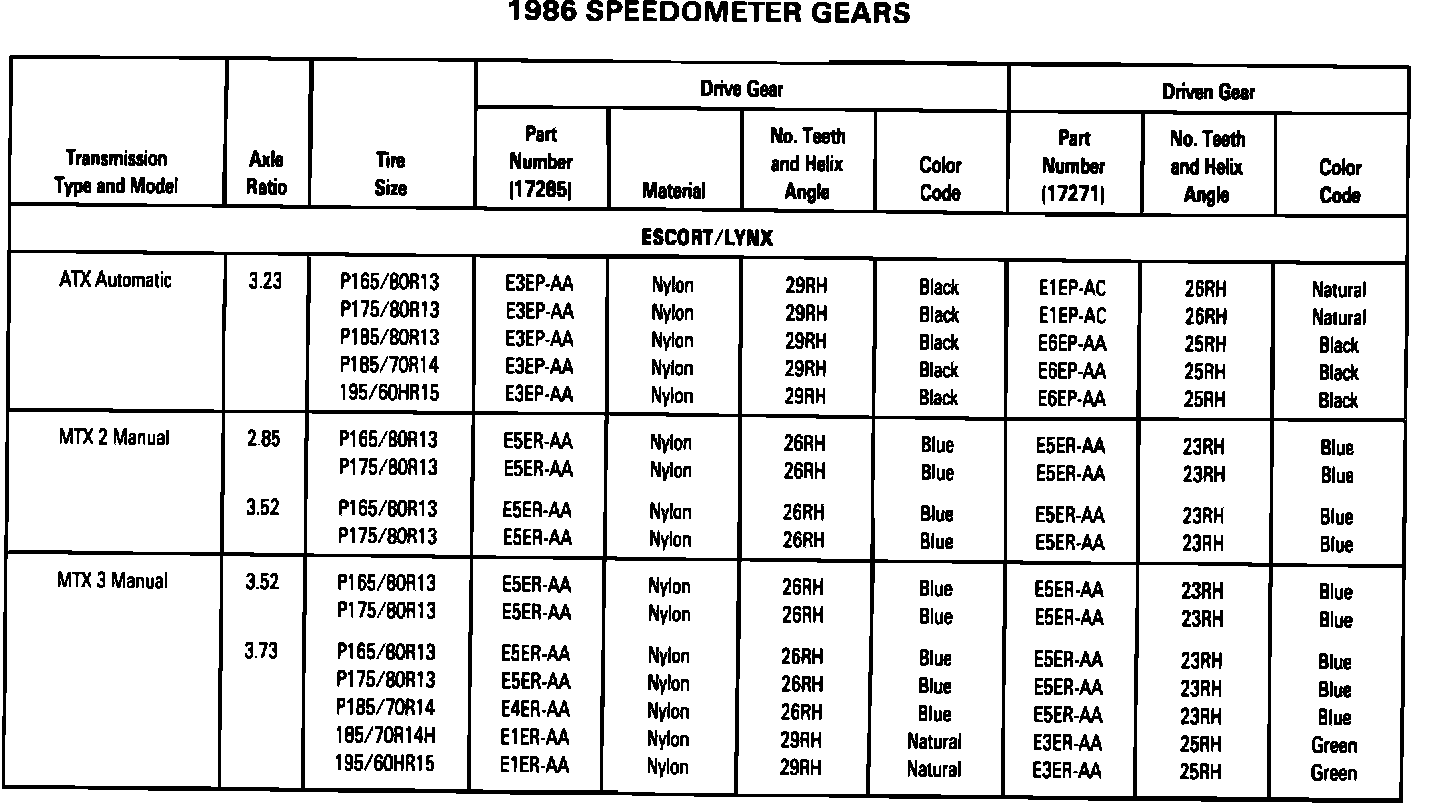

The following chart indicates the speedometer drive (17285) and driven (17271) gear combinations for all 1986 model year passenger car applications.





ESCORT/LYNX





TEMPO/TOPAZ/TAURUS/SABLE





MUSTANG/CAPRI





LTD/MARQUIS/THUNDERBIRD/COUGAR





TOWN CAR/FORD POLICE/FULLSIZE





CONTINENTAL/MARK VII


OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
