Timing Cover: Service and Repair

REMOVAL AND INSTALLATION

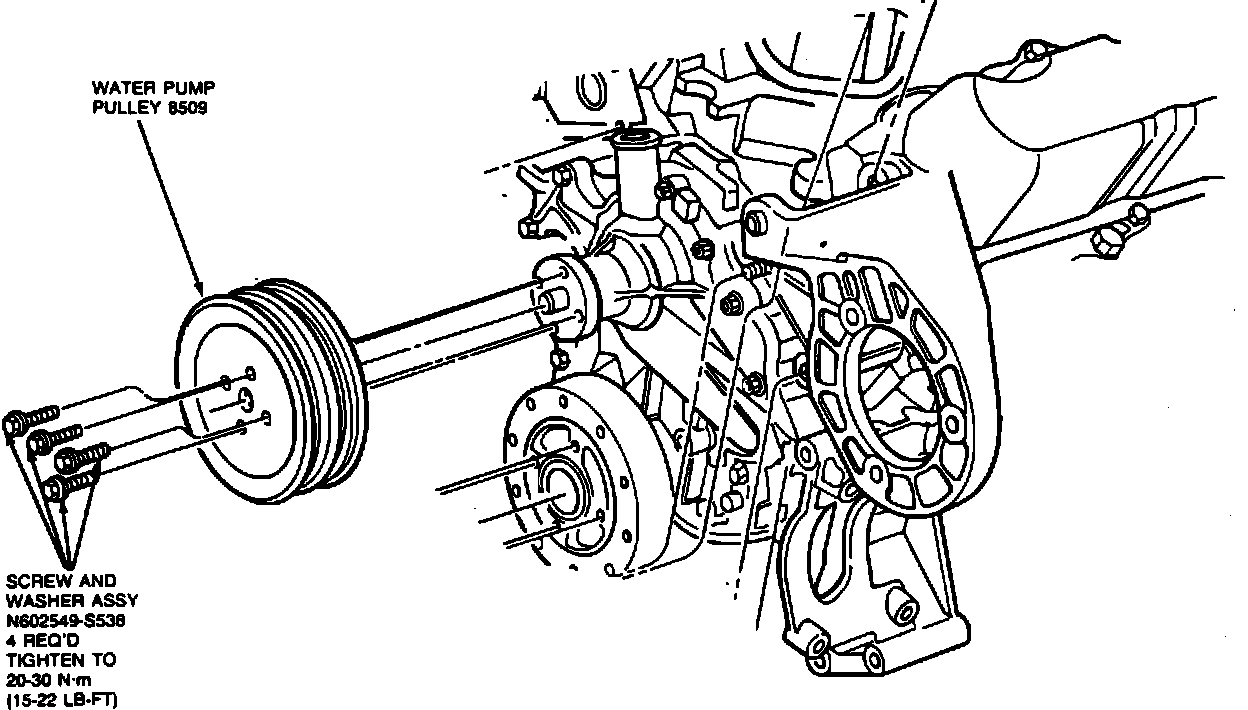

Timing Cover Removal And Installation:







1. Remove idler pulley and bracket assembly.
2. Remove drive and accessory belts.
3. Remove four pulley-to-pump hub bolts and allow pulley to hang loose on hub.
4. Remove crankshaft pulley and damper.
5. Remove lower radiator hose.
6. Remove oil pan.

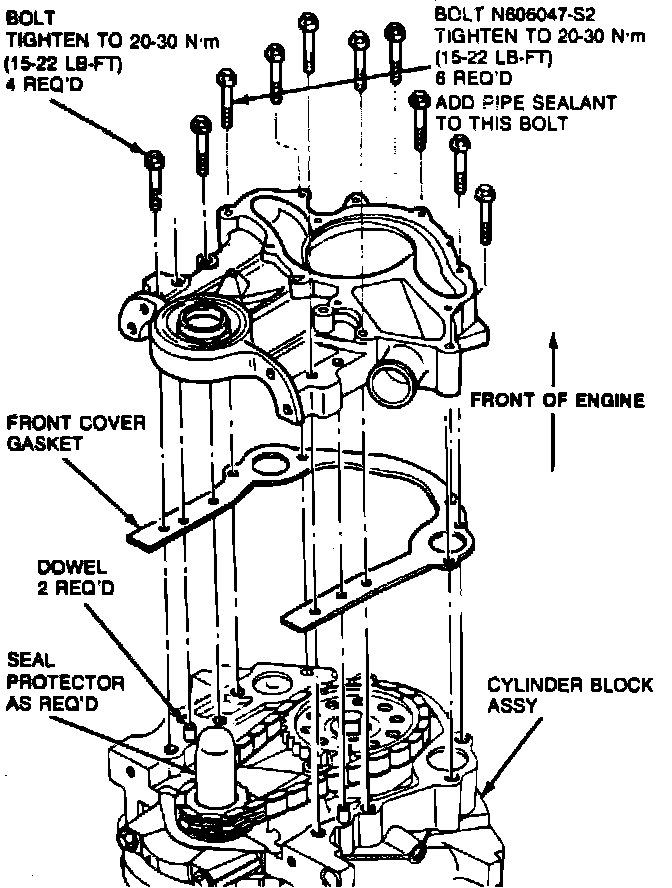

Front cover removal & installation:






7. Unbolt front cover and water pump by removing 10 bolts.
8. Remove loose pulley from water pump hub.
NOTE: DO NOT cut and seal oil pan gasket. Either reuse or replace entire gasket.
9. Install new crankshaft seal in front cover.
10. To install, reverse Steps 1 through 9.
NOTE: Use sealant for front cover bolts which go into water jacket of block.
