Upshift Indicator Relay - Manual Update


90ford11

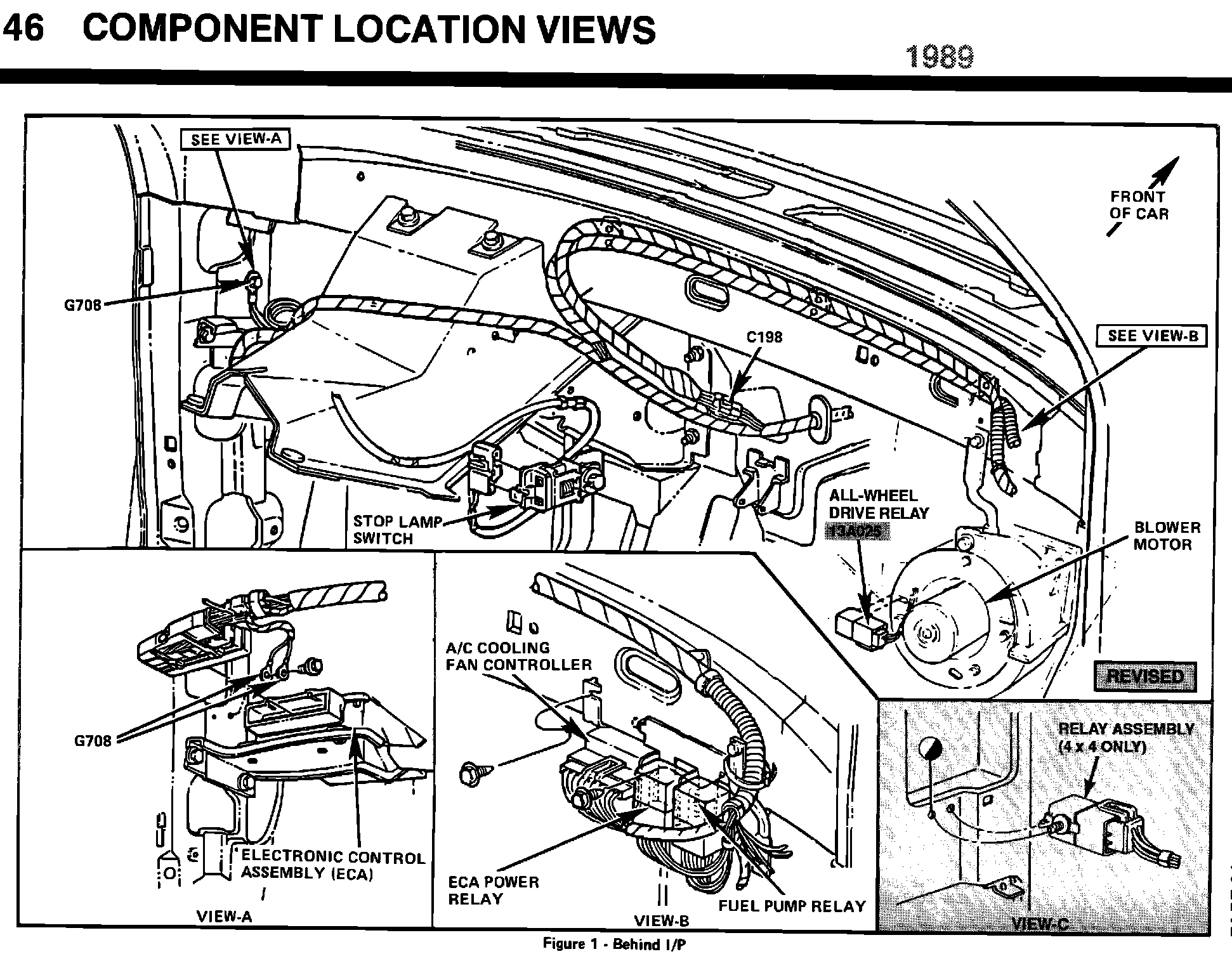

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL- 1989-PAGE 46-INSTRUMENT PANEL ILLUSTRATION UPDATED TO SHOW UPSHIFT INDICATOR RELAY

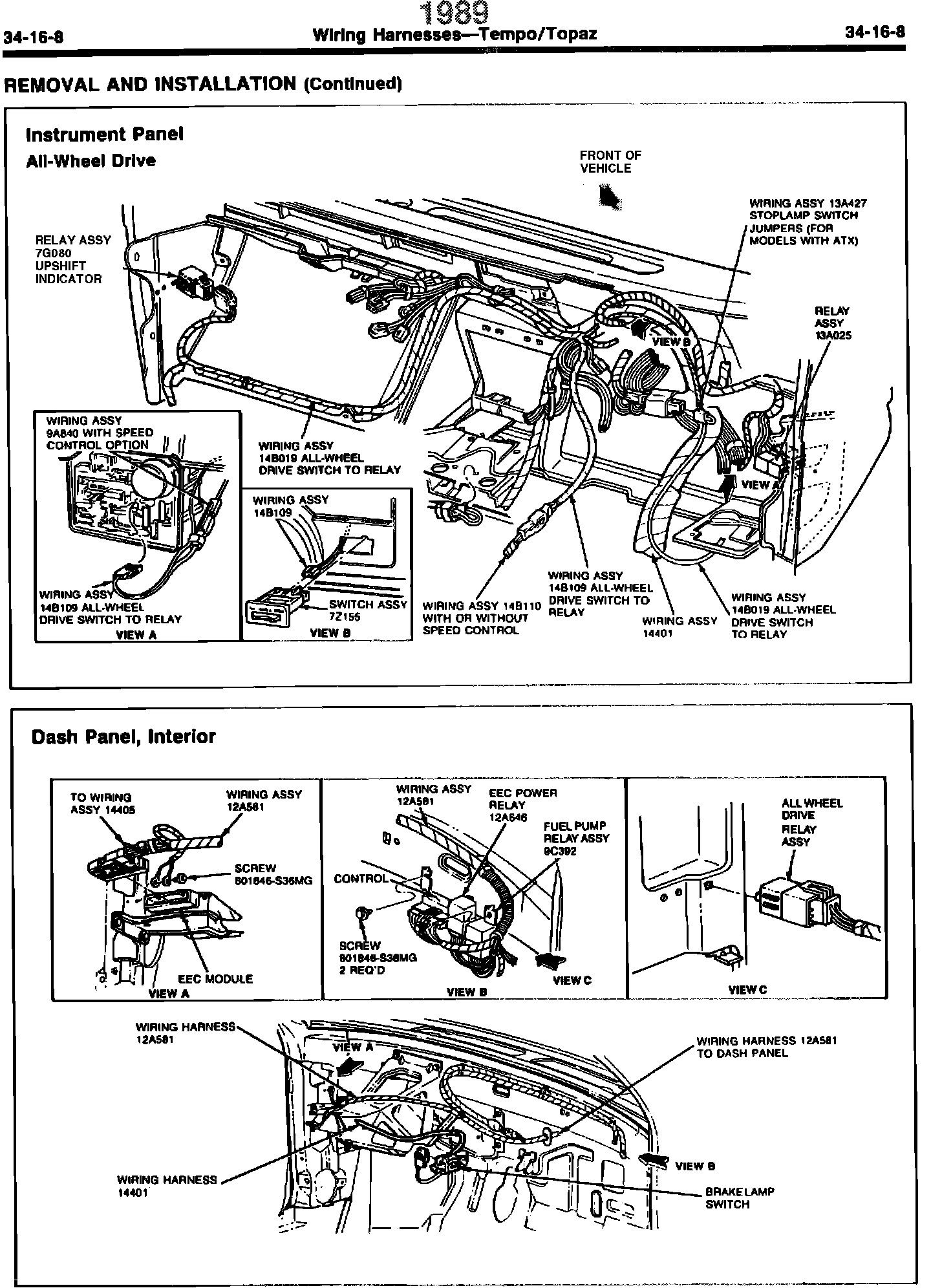

^ SHOP MANUAL-1989-PAGE 34-16-8-INSTRUMENT PANEL ILLUSTRATION UPDATED TO SHOW UPSHIFT INDICATOR RELAY

Article No. 90-6B-4

FORD: 1989 TEMPO

LINCOLN-MERCURY: 1989 TOPAZ













ISSUE: The upshift indicator relay was not included in the 1989 EVTM or 1989 Shop Manual. The affected illustrations are on page 34-16-8 of the 1989 Tempo/Topaz Shop Manual and page 46 of the 1989 Tempo/Topaz EVTM.

ACTION: Refer to the pages following this TSB article for the updated illustrations.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
