Cruise Control Servo Cable: Adjustments

Actuator Inner Cable Freeplay

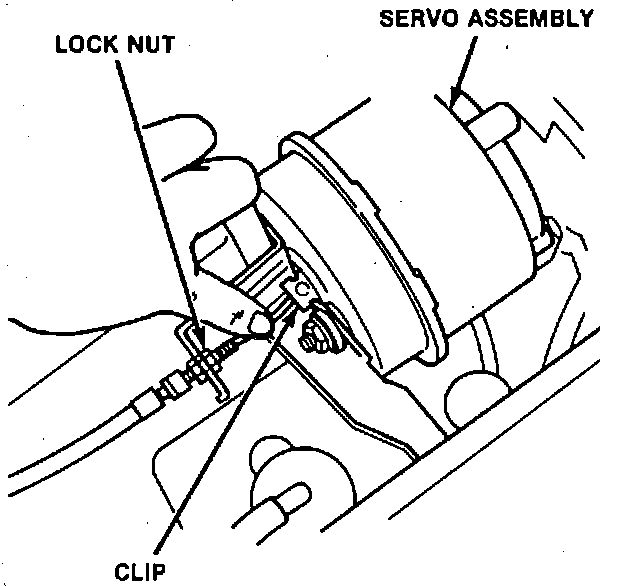

Fig. 86 Actuator Inner Cable Freeplay Adjustment:

With the engine off, remove clip, then adjust locknut while pressing down on cable until freeplay measures .04-.12 inch, Fig. 86.
