EVTM - Electronic Engine Control Schematic

Article No.
89-25A-2

12/15/89

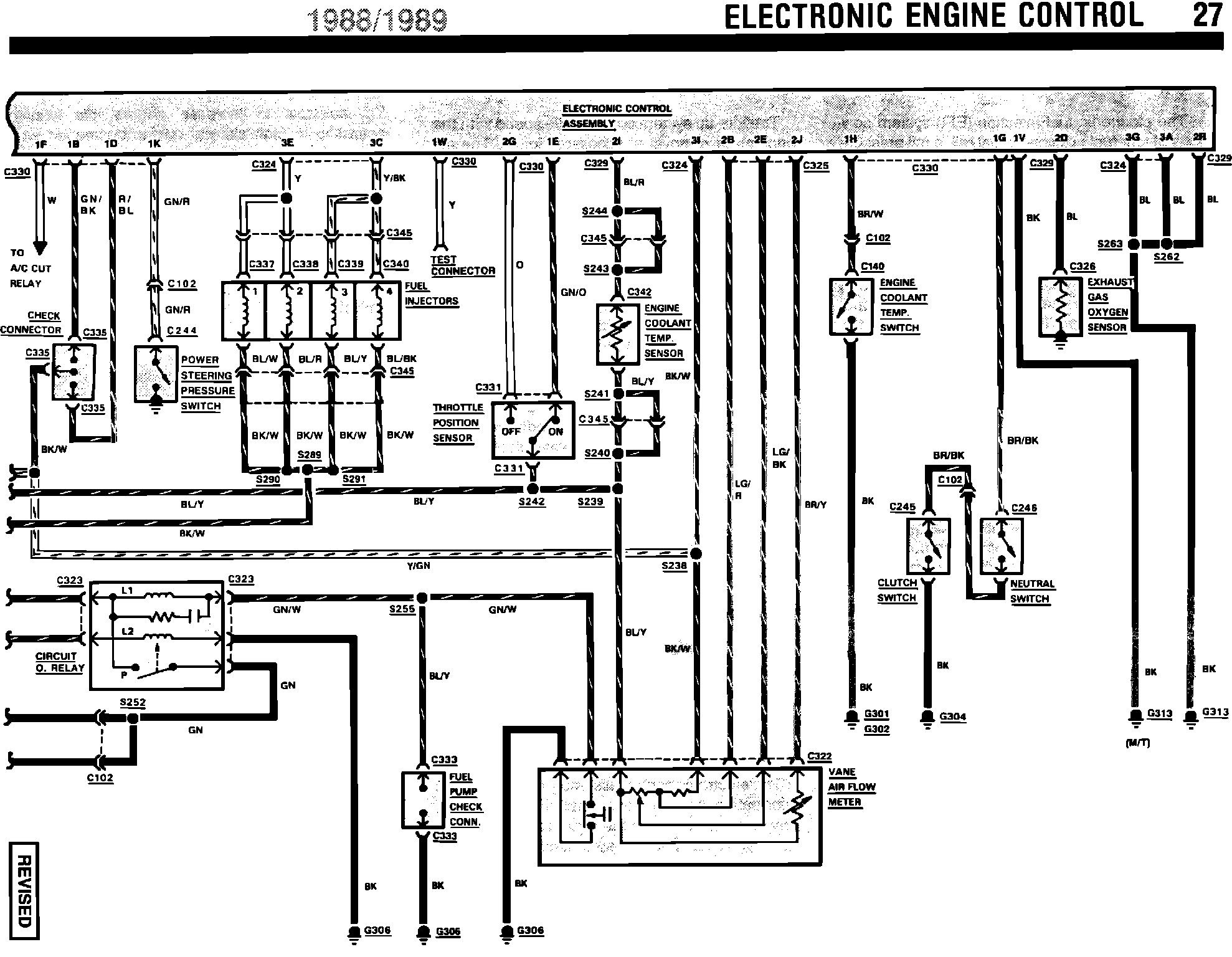

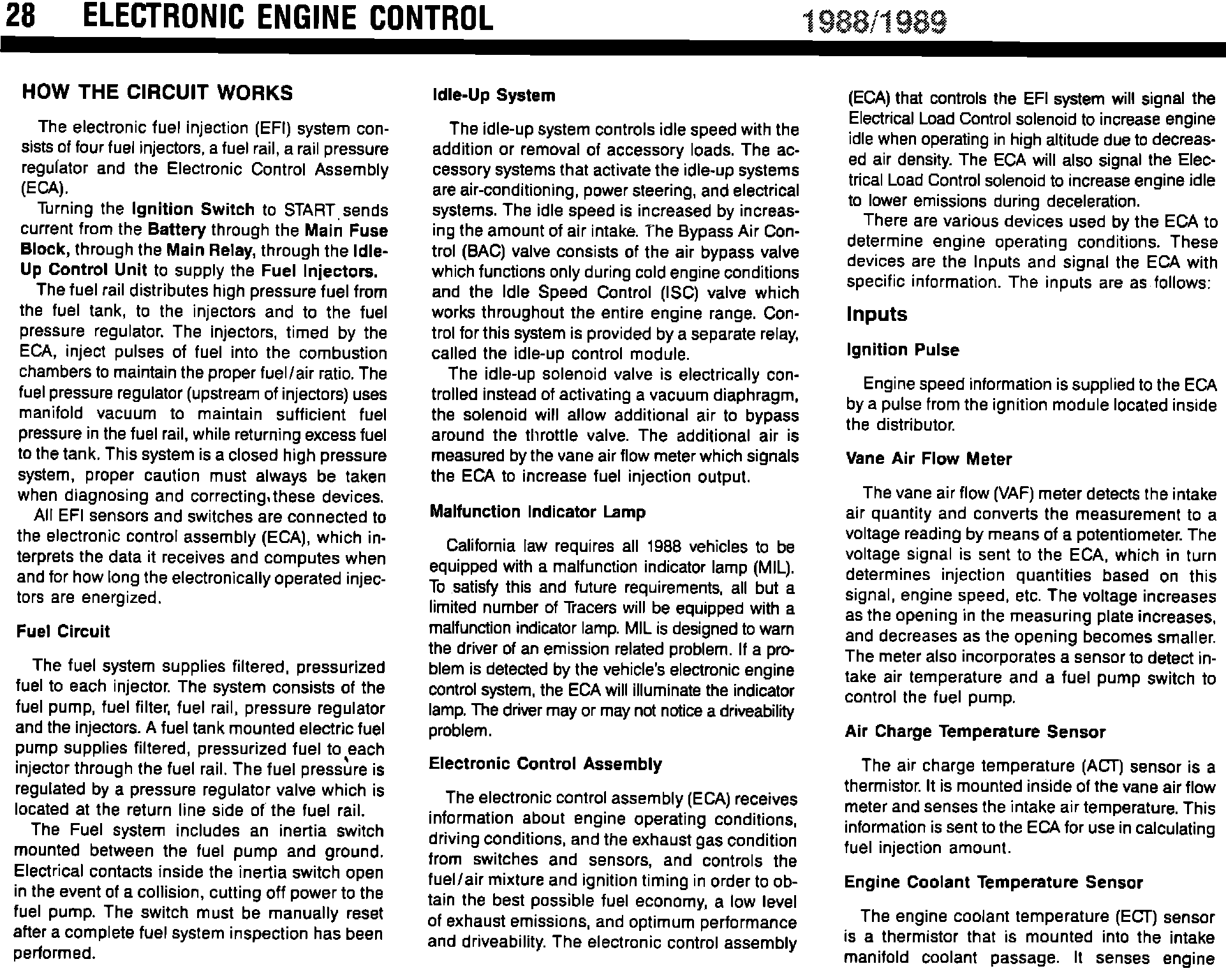

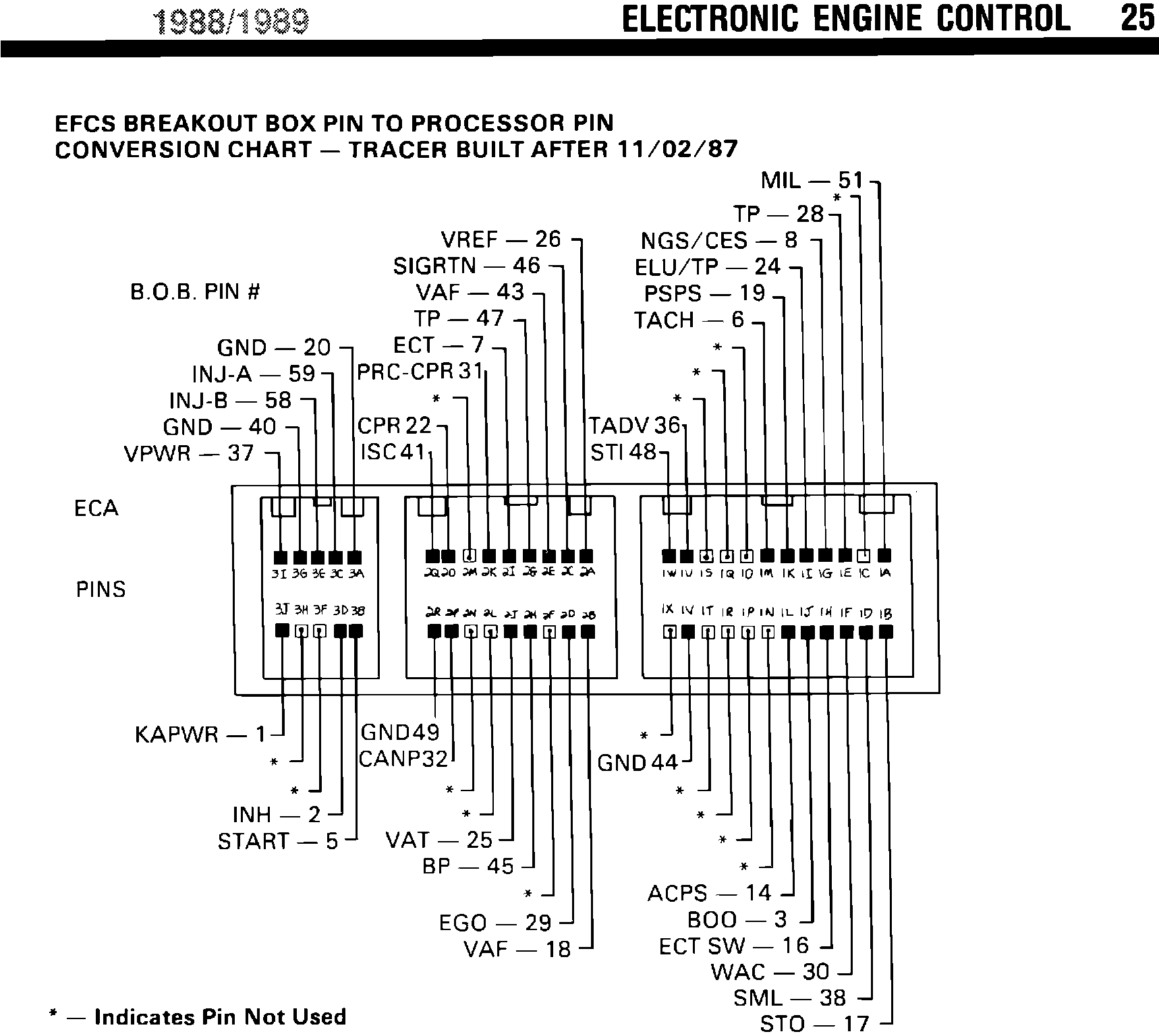

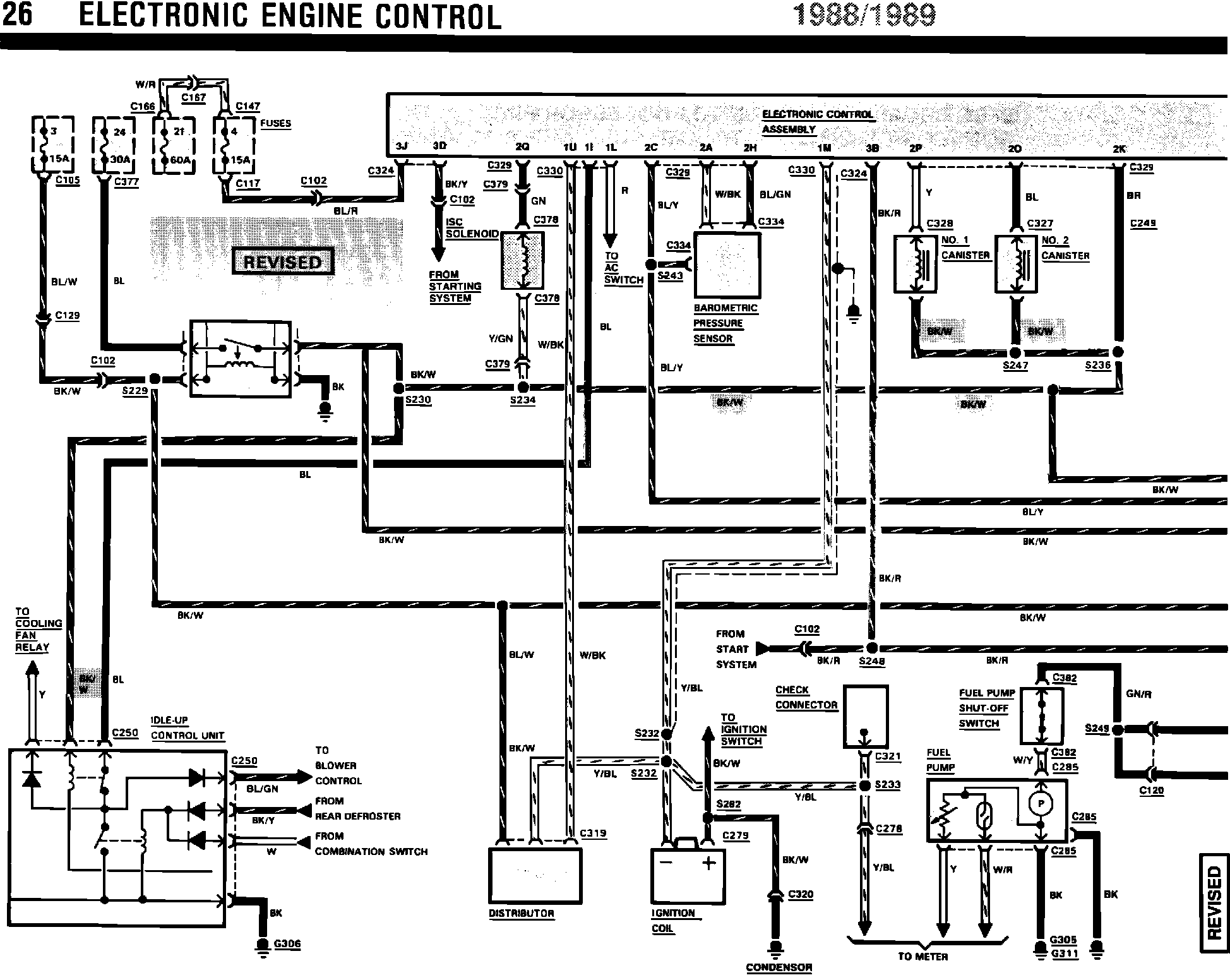

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1988 - PAGES 26 AND 27 - ELECTRONIC ENGINE CONTROL SCHEMATIC

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1990 - PAGES 26 AND 27 - ELECTRONIC ENGINE CONTROL SCHEMATIC

LINCOLN-MERCURY:
1988-89 TRACER














ISSUE:
The Electronic Engine Control schematics on pages 26 and 27 of the 1988 and 1989 Tracer Electrical/Vacuum Troubleshooting Manual have been revised due to changes in the Main Relay connector.

ACTION:
Refer to the pages in this TSB article for the updated schematics.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
