Fuel Level Indicating System - Manual Revisions

Article No.
91-14B-10

Date
July 22, 1991



SHOP MANUAL - 1991 - SECTION 33-20 - FUEL LEVEL INDICATING SYSTEM - DIAGNOSTIC INFORMATION REVISED



LINCOLN-MERCURY: 1991 CAPRI


ISSUE:

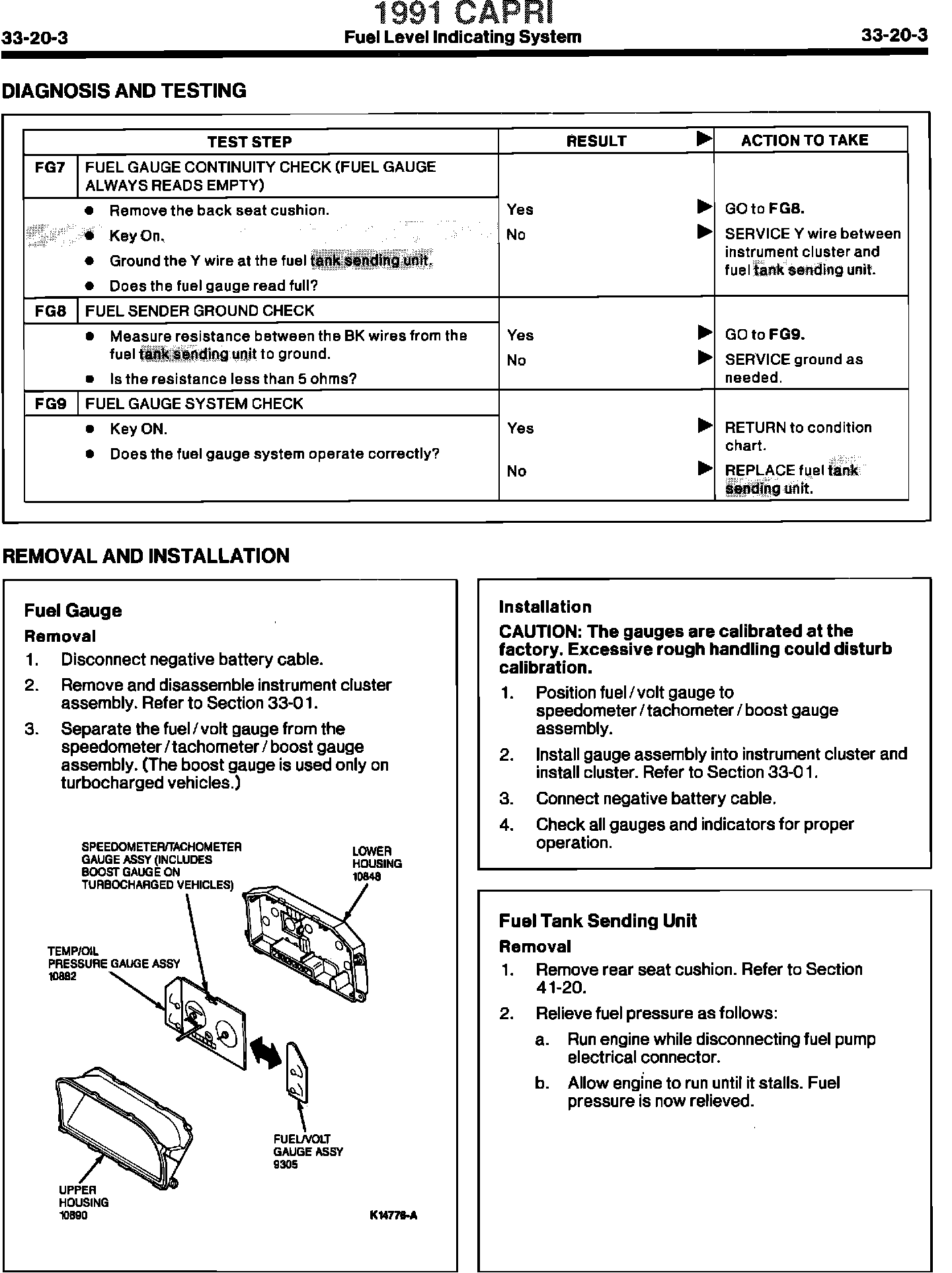

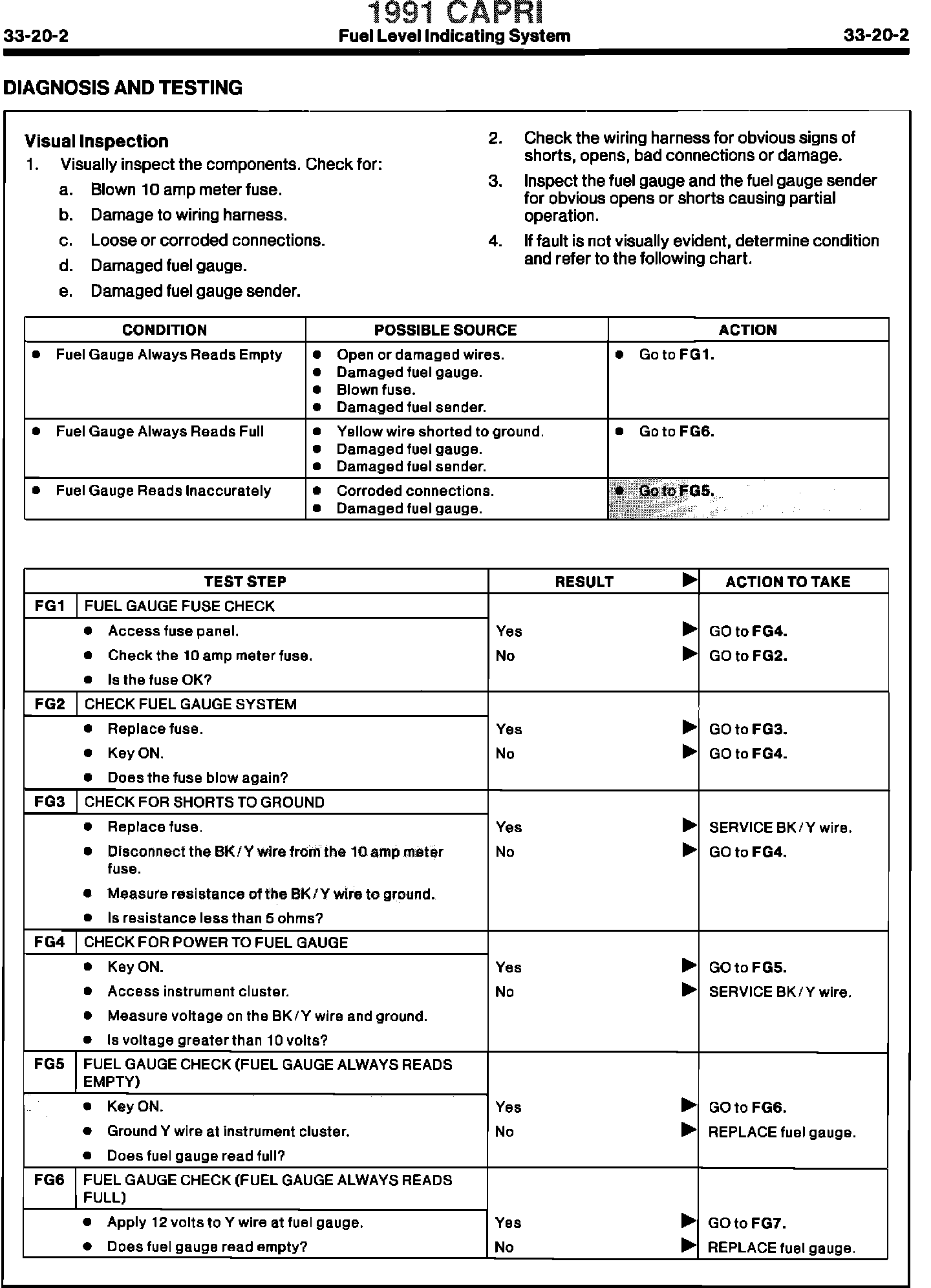

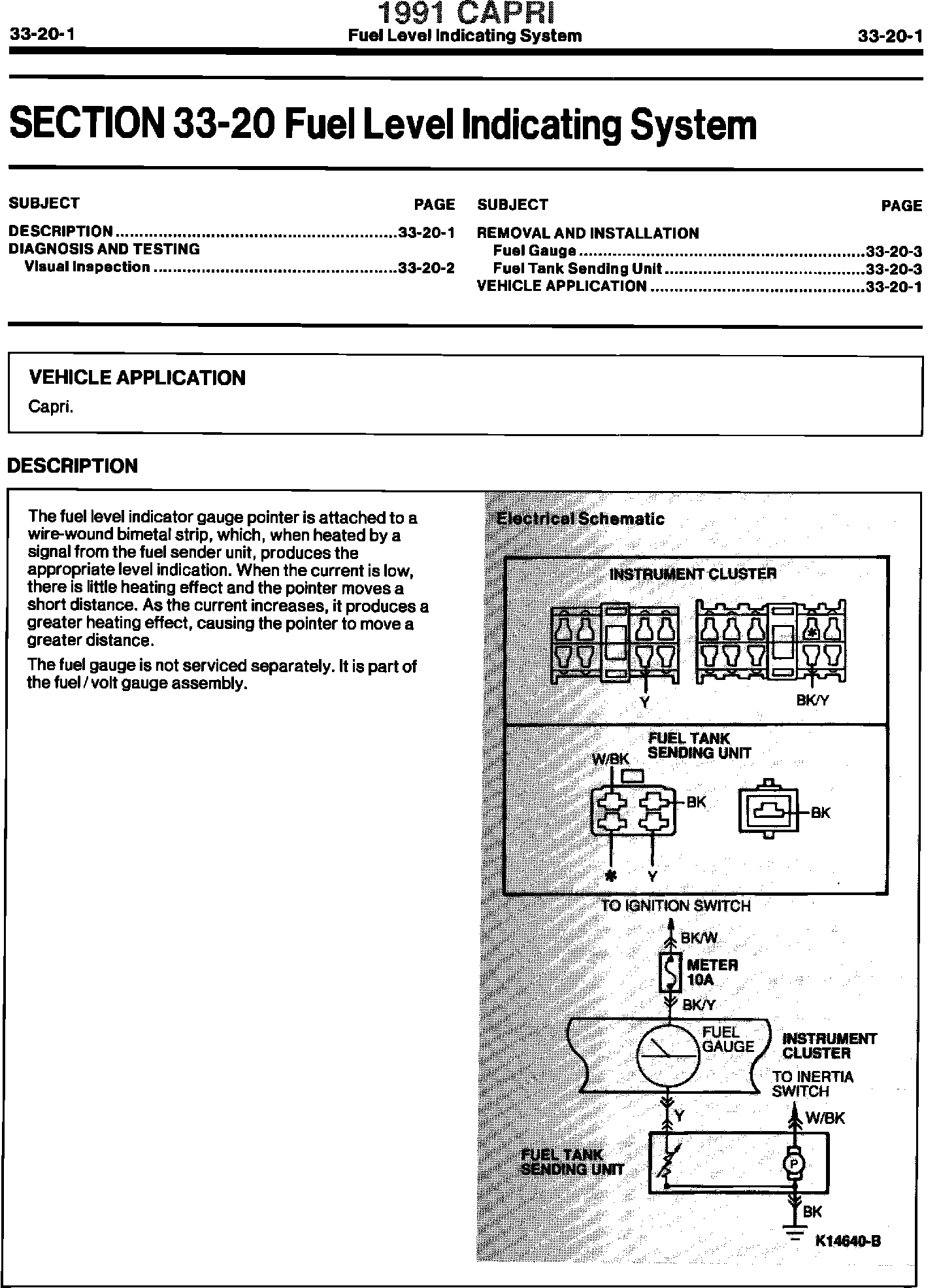

Fuel Level Indicating System Section 33-20 of the 1991 Capri Shop Manual has been revised. Pages 33-20-1 through 3 are affected.

ACTION:











Refer to the pages in this TSB article for the updated information.



NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE
WARRANTY STATUS:
INFORMATION ONLY
OASIS CODES:
290000
