A/T 4EAT Diagnostics - Manual Revision

Article No.
91-14B-2

07/22/91

SHOP MANUAL - 1991 - SECTION 17-27 - 4EAT TRANSAXLE - DIAGNOSTIC INFORMATION REVISED



LINCOLN-MERCURY:
1991 CAPRI

















ISSUE:

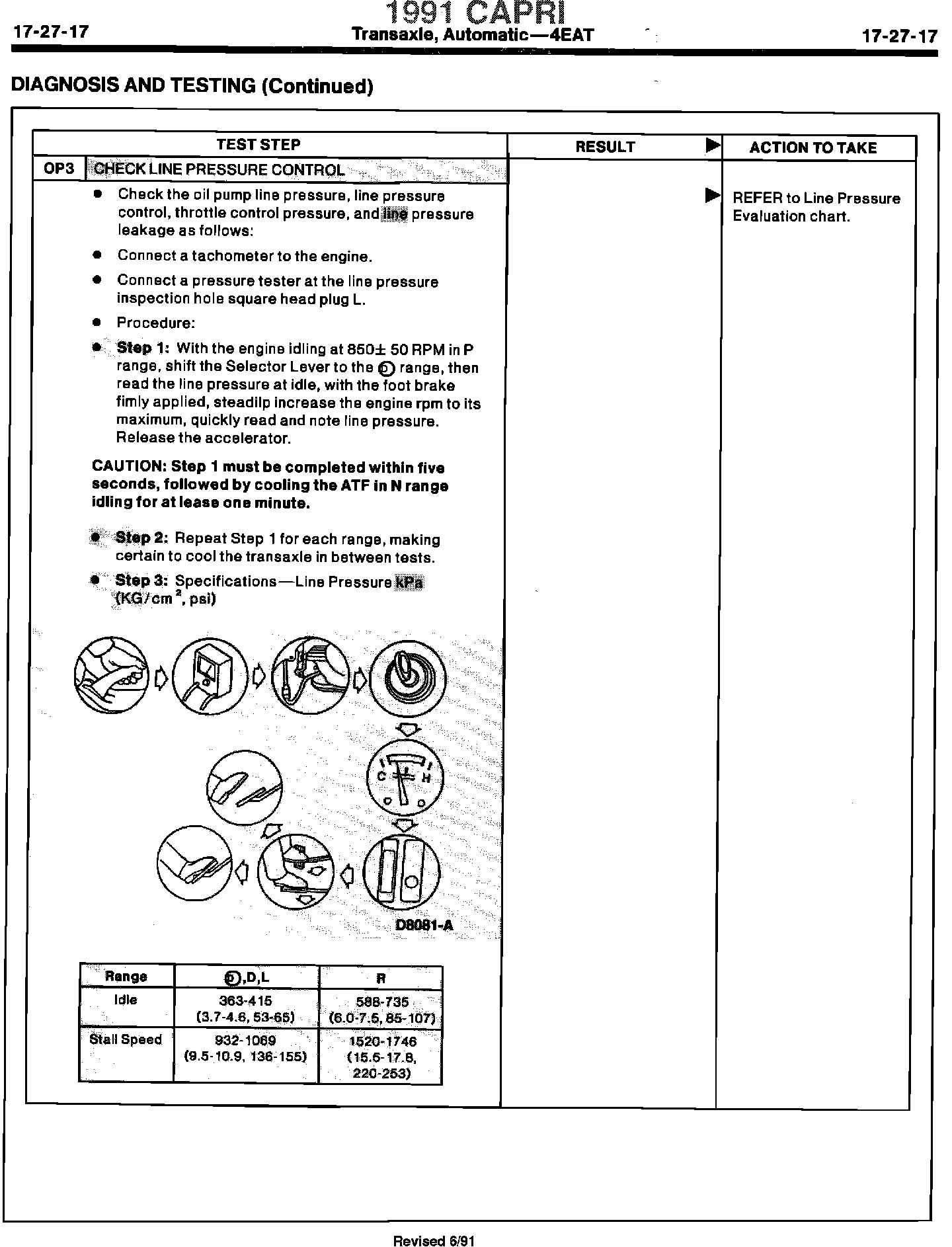

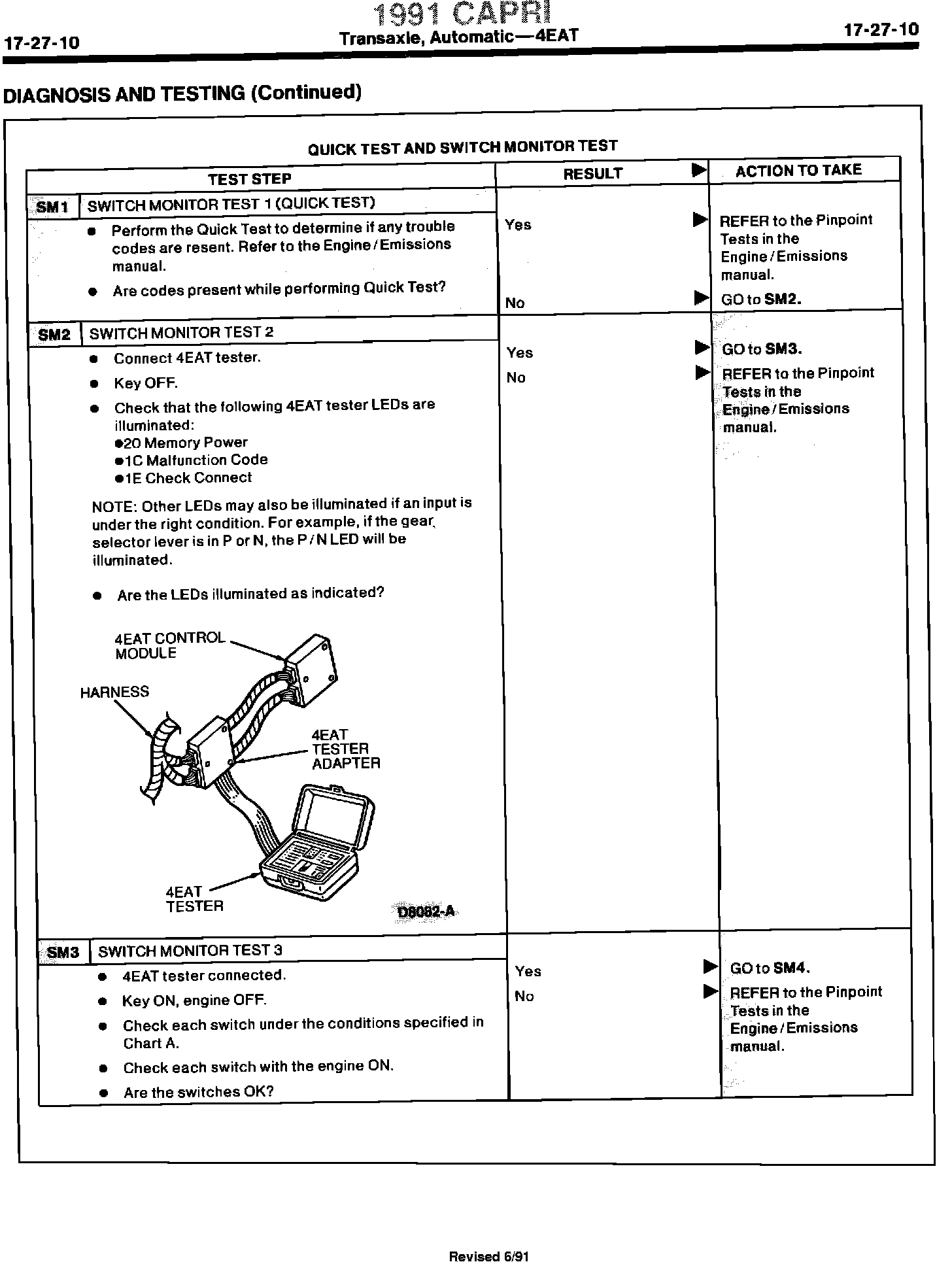

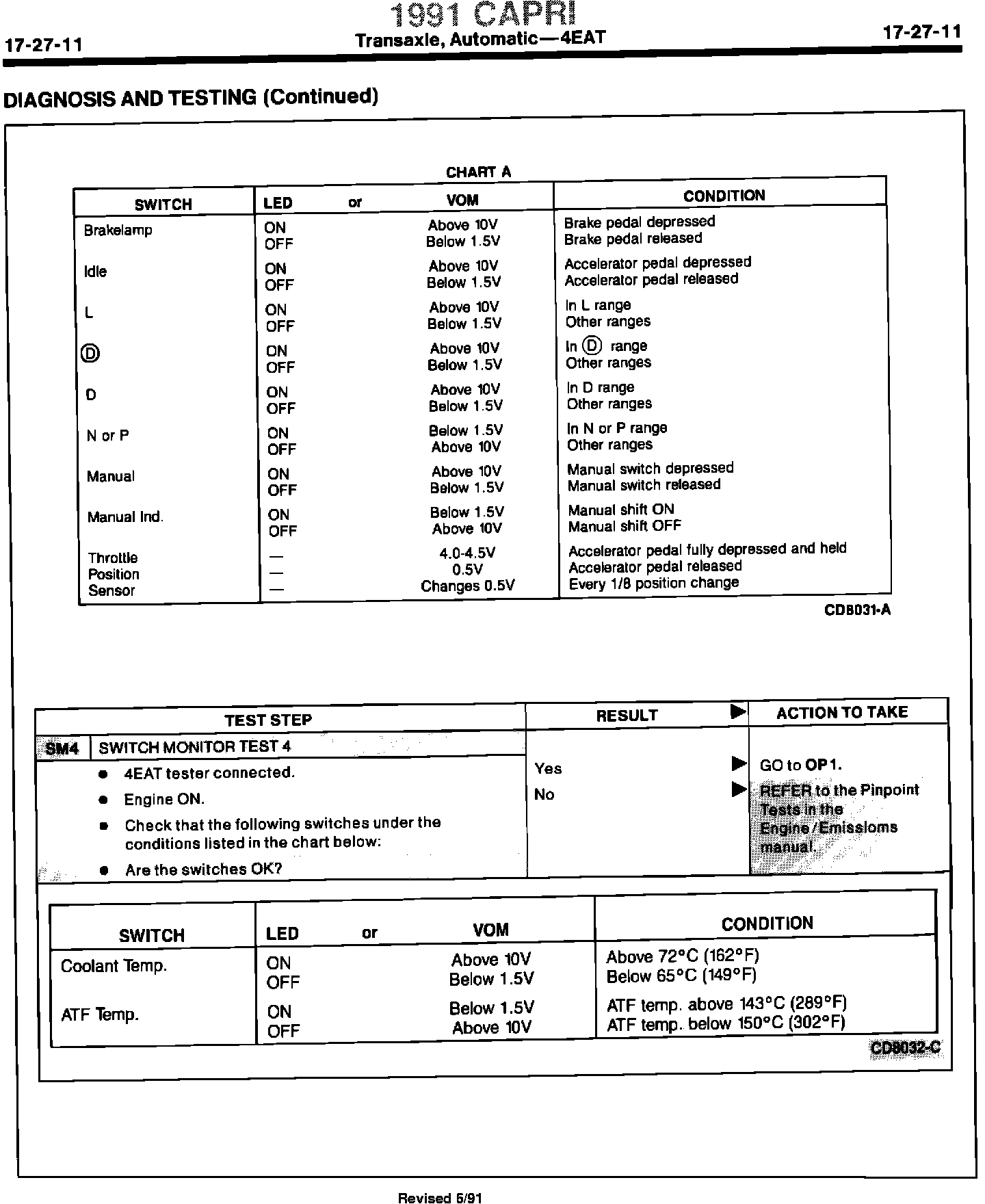

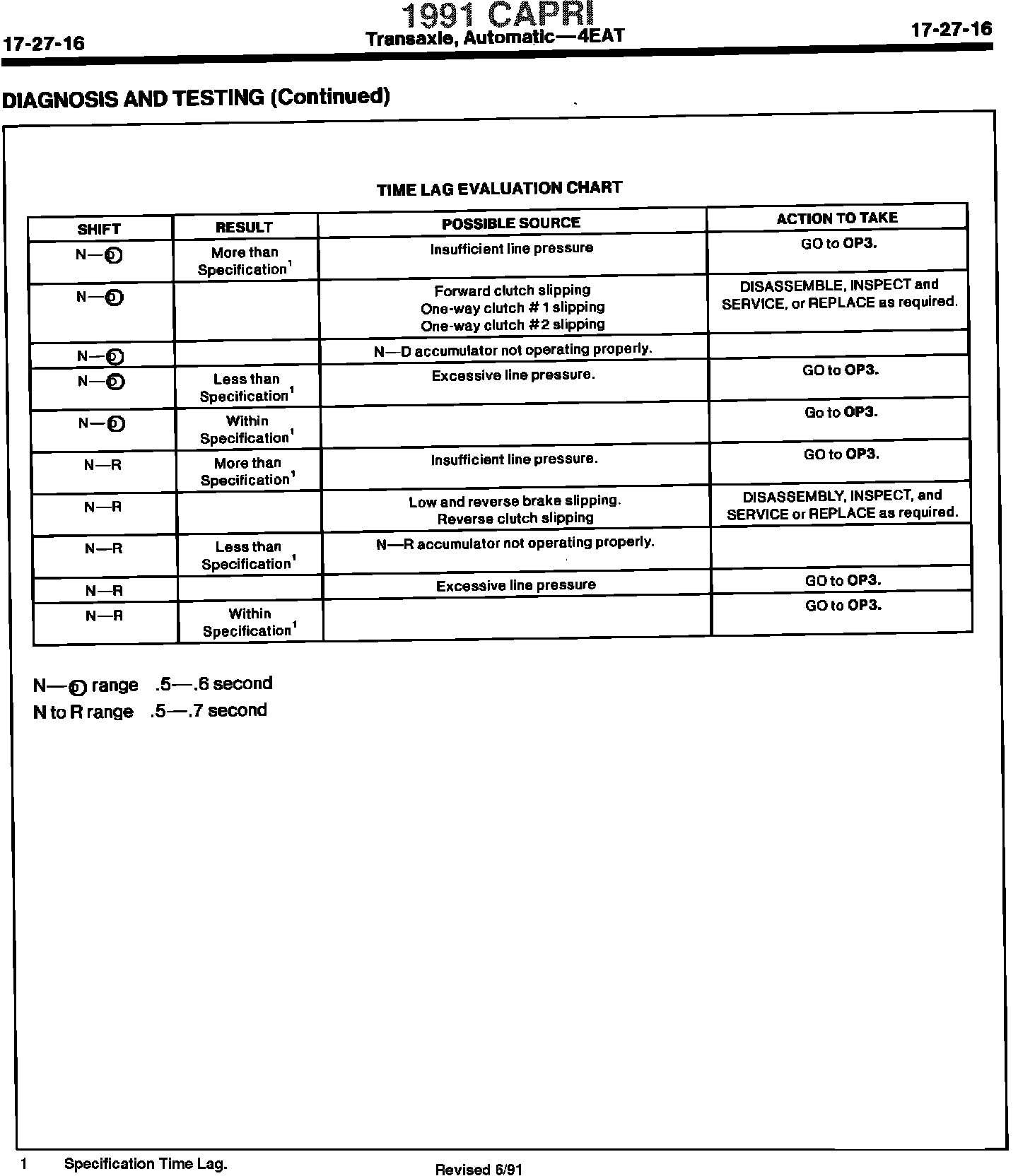

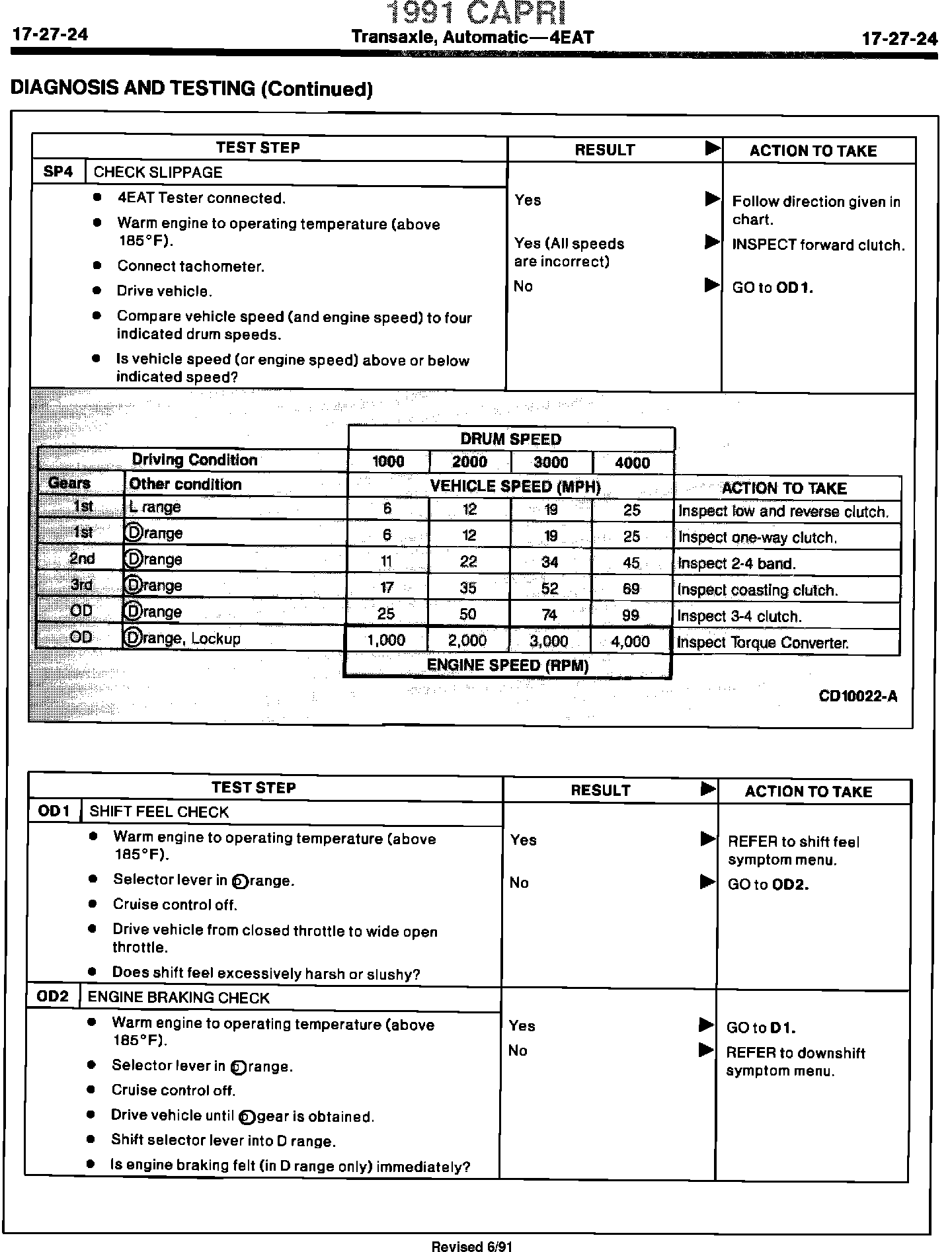

Transaxle, Automatic-4EAT Section 17-27 of the 1991 Capri Shop Manual has been revised. Pages 17-27-10 and 11, 16, 17 and 24 are affected.

ACTION:
Refer to the pages in this TSB article for the updated information.

NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
290000
