STG - Testing Notes and Schematics

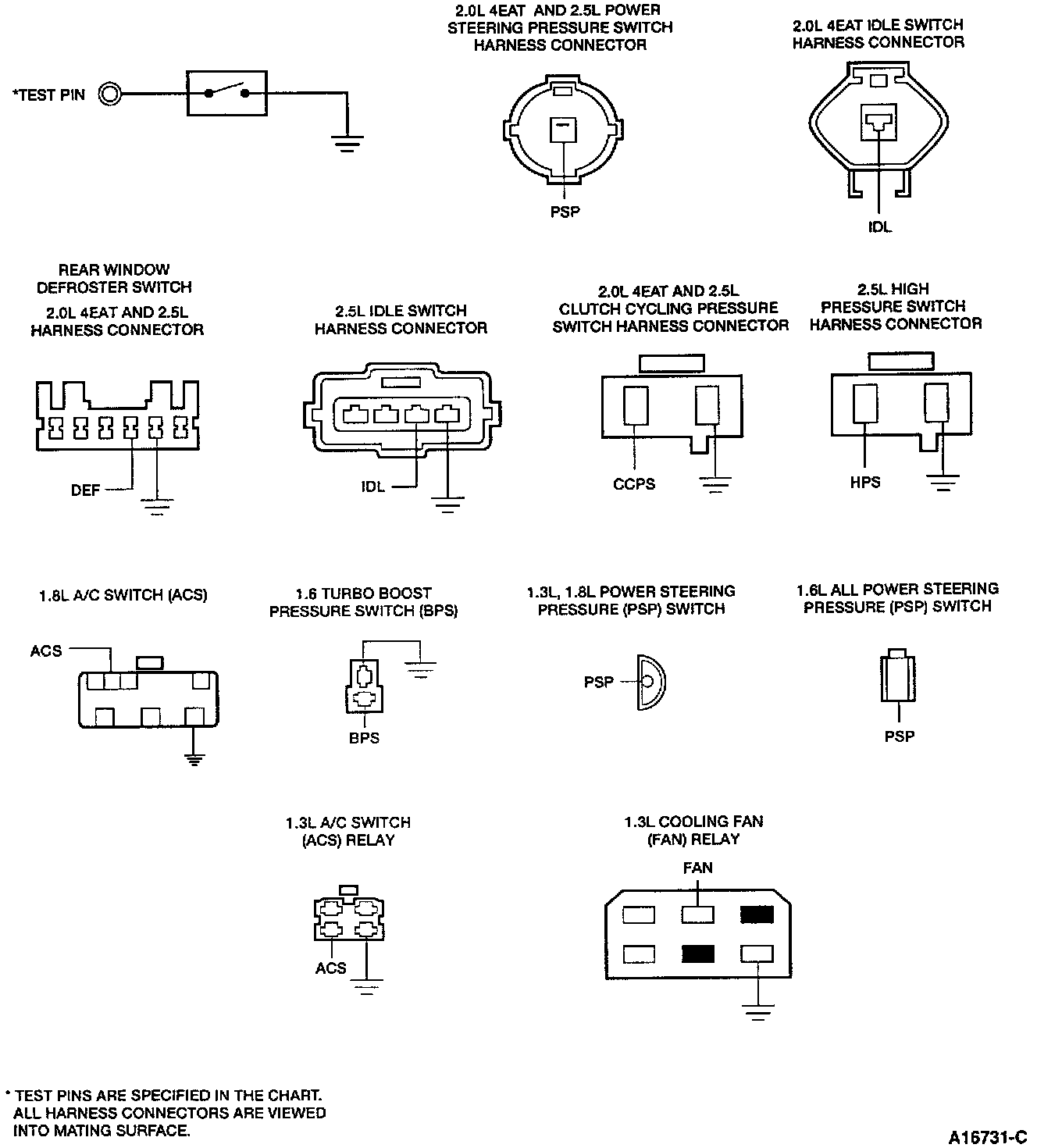

Pinpoint Test STG Schematic (Part 1):

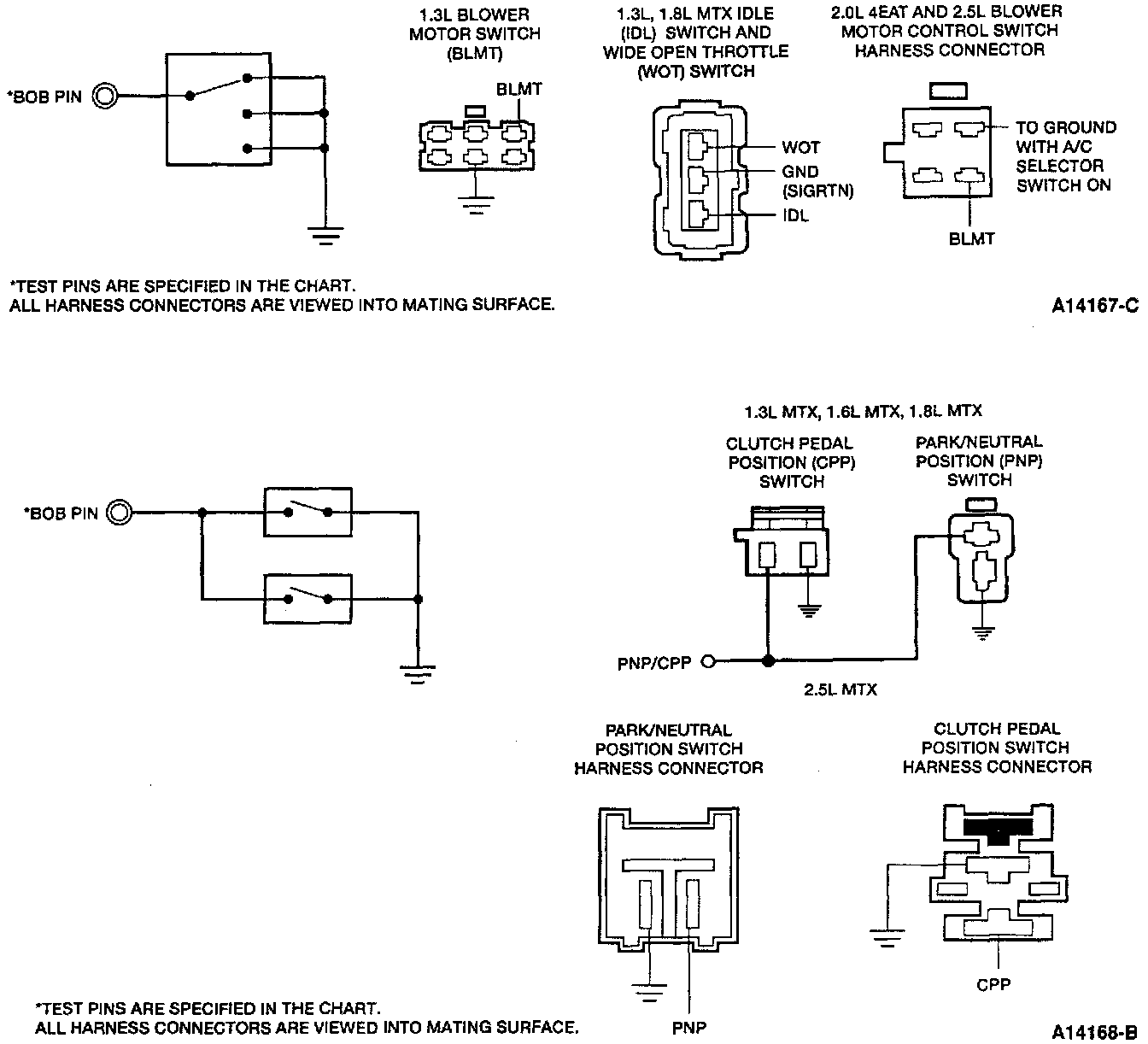

Pinpoint Test STG Schematic (Part 2):

Enter this Pinpoint Test only when directed here by Quick Test steps 9 or 11, or by a test procedure.

This test is only intended to diagnose the following:

- ACS (A/C ON-OFF switch)
- BPS (boost pressure switch)
- BLMT (blower motor control switch)
- CCPS (clutch cycling pressure switch)
- CPP (clutch pedal position switch)
- FAN (cooling fan switch)
- HPS (high pressure switch)
- PNP (park/neutral position switch)
- PSP (power steering pressure switch)
- DEF (rear window defroster switch)
- WOT (wide open throttle switch)
