Cruise Control Module: Service and Repair
Speed Control AmplifierRemoval
1.
Remove the right lower cowl trim panel.
2.

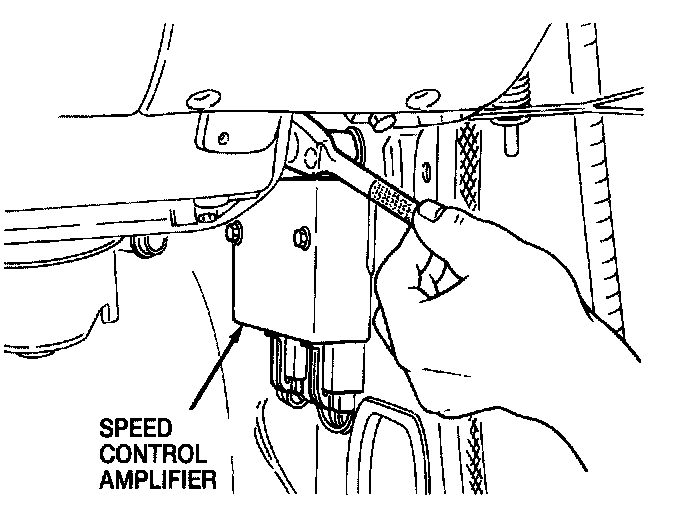

Remove the mounting bolt.
3.

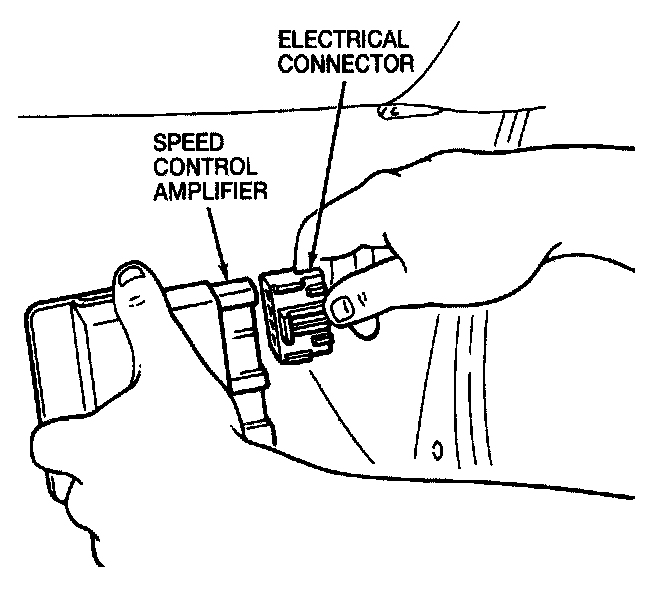

Disconnect the two electrical connectors and remove the control unit.
Installation
To install, reverse the removal procedure.
