Screen Display 10

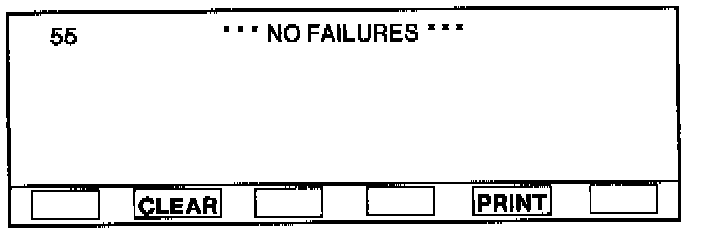

Screen Display #10A:

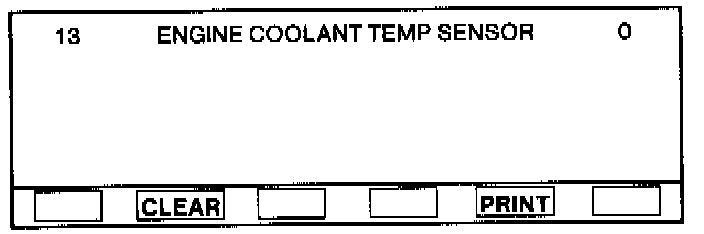

Screen Display #10B:





10. Screen Display # 10 (A or B).
Screen Display # 1OA will appear if there are no failures. A pass code appears on the left side of the screen display. If there is a failure, (for example Engine Coolant Temperature sensor failure), Screen Display # 10B will appear instead. Note the number on the right side of the screen display. Refer to the Diagnostic Function Chart for a description.

Press CLEAR key (number 4) to clear the stored diagnostic trouble codes, or press the PRINT key (number 7) to print them out.

Press CANCEL to get out of this function. After CANCEL is pressed, Screen Display #9 will appear, where other functions can be selected. For example, turn the menu dial to highlight DATA MONITOR AND RECORD. Press TRIGGER. Screen Display # 11 will appear.
