Screen Display 12

Screen Display #12:

12. Screen Display # 12.

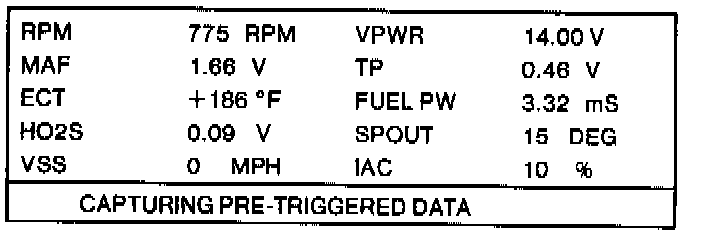

An example of monitoring items (sensors and actuators) is shown on this screen display. Data with units are displayed to the right of the items.

Press CANCEL twice to get out of the DATA MONITOR AND RECORD function. Screen Display #9 will appear. For an example, turn the menu dial to highlight WORK SUPPORT.

NOTE: WORK SUPPORT function is available only on ENGINE.

Screen Display # 13 will appear.
