Screen Display 14

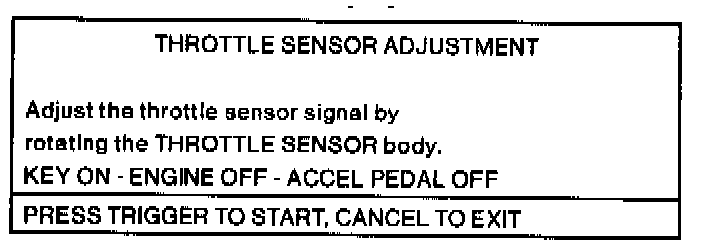

Screen Display #14A:

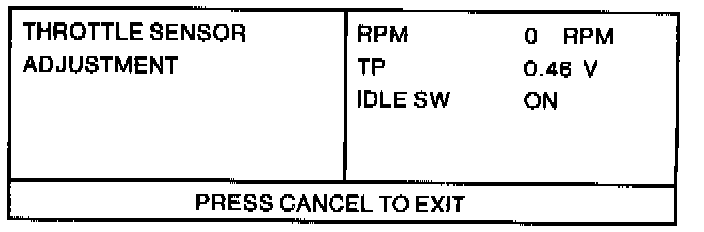

Screen Display #14B:





14. Screen Display # 14 (A and B).
Follow the instructions on Screen Display # 14A to adjust the throttle position sensor signal. Press TRIGGER to start. An adjustment screen (14B) will appear. Engine RPM, throttle position sensor voltage, and idle switch condition are displayed while the throttle sensor is manually positioned. Press CANCEL to exit to Screen Display # 13, where you can highlight IAC VALVE ADJUST. Press TRIGGER. Screen Display # 15 will appear.
